Descriere

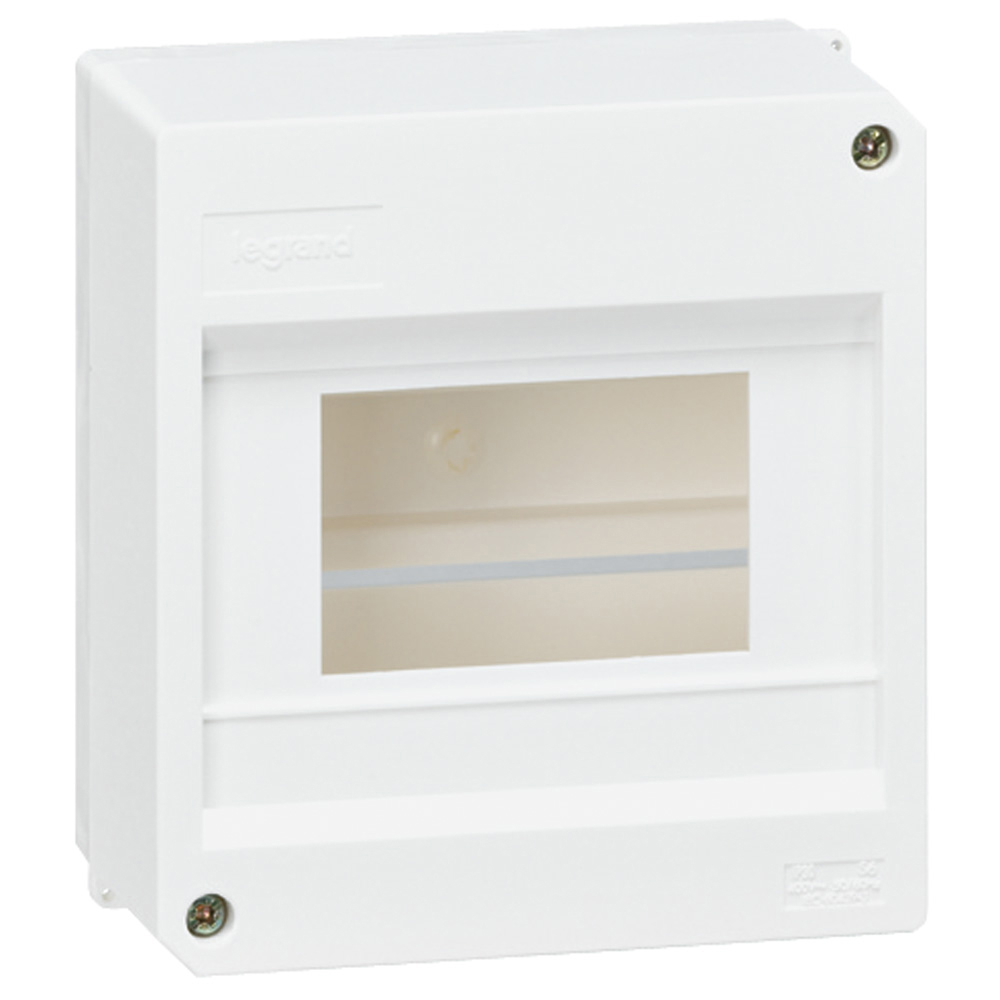

Terminal shield box 6 mod
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Measurements | |
| Height | 140 |
| Inner depth | 48 |
| Built-in depth | 64 |
| Width in number of modular spacings | 6 |
| Built-in height | 136 |
| Depth | 68 |
| Width | 130 |
| Built-in width | 126 |
| Model/type | |
| Type of door | - |
| Transparent cover/door | No |
| Type of closure | Other |
| With lock | No |
| Number of rows | 1 |
| Cover model | With notch |
| Type of covering | Cover |
| Number of openings for socket outlets | - |
| With N-disconnect slide | - |
| EMC-version | No |
| Neutral terminal block | No |
| Earthing terminal block | No |
| Protection | |
| Degree of protection (IP) | IP30 |
| Options | |
| DIN-rail | No |
| Sealable | - |
| Signal passing door | Yes |
| Extension possible | No |
| Material | |
| Housing material | Plastic |
| Mounting/installation | |
| Mounting method | Surface mounted |
| With mounting plate | No |
| Colour | |
| RAL-number | 9010 |
| Colour | White |
| Package 1 | |
| volume | 0,001184 |
| weight | 0,154 |
| length | 0,066 |
| width | 0,13 |
| qmax | 1 |
| qmin | 1 |
| um | BX |
| gtin | 3245060013585 |
| Package 2 | |
| volume | 0,027292 |
| weight | 3,397 |
| length | 0,275 |
| width | 0,286 |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 3414971496408 |
| Package 3 | |
| volume | 0,8556 |
| weight | 74,734 |
| length | 0,713 |
| width | 1,2 |
| qmax | 440 |
| qmin | 440 |
| um | PF |
| gtin | 3414972367585 |
| Dimensions of product | |
| Length | 0,14 |
| Width | 0,13 |
| Depth | 0,068 |
