Descriere

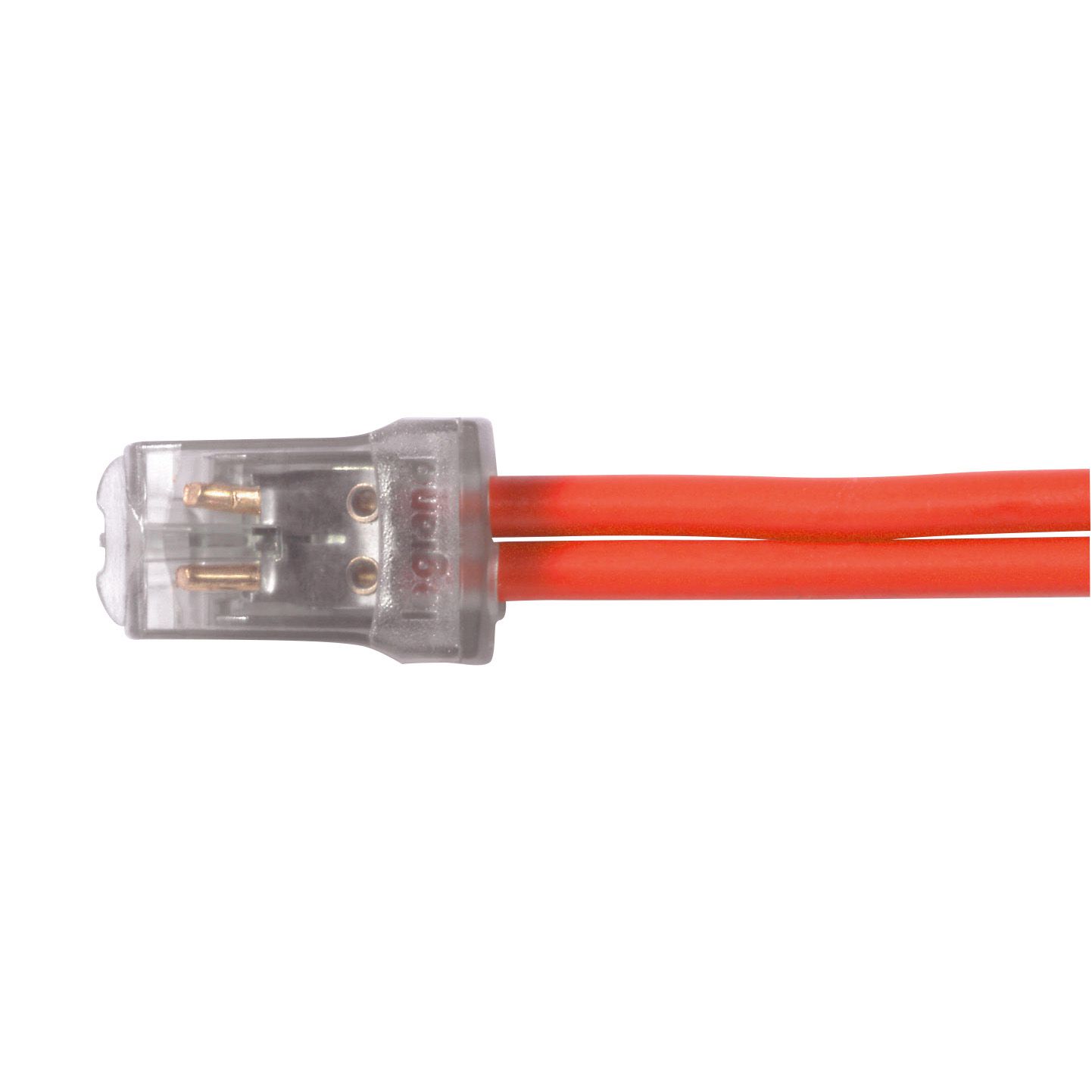

Screwless connection terminal Nylbloc auto - for 2 wires - 24 A - 450 V~
Documente
Declaratie de conformitate
Specificatii
| Connection | |
| Conductor cross section solid (solid, stranded) | - |
| Conductor cross section flexible (fine-strand) with cable end sleeve | - |
| Number of clamp positions (device side) | - |
| Number of clamp positions (installation side) | - |
| Nominal cross section (device side) | - |
| Nominal cross section (installation side) | - |
| Electrical | |
| Nominal current | 24 |
| Nominal voltage | 450 |
| Measurements | |
| Cable diameter | - |
| Min. AWG-size | - |
| Max. AWG-size | - |
| Application | |
| Suitable for multi-wire conductors | No |
| Suitable for flexible conductors | No |
| Suitable for solid conductors | Yes |
| Colour | |
| Transparent | Yes |
| Colour | Colourless |
| Model/type | |
| Type of locking/unlocking | - |
| Package 1 | |
| volume | 0,000909 |
| weight | 0,212 |
| length | 0,052 |
| width | 0,104 |
| qmax | 100 |
| qmin | 100 |
| um | BX |
| gtin | 3414971441729 |
| Package 2 | |
| volume | 0,015195 |
| weight | 2,434 |
| length | 0,126 |
| width | 0,303 |
| qmax | 1000 |
| qmin | 1000 |
| um | CT |
| gtin | 3414970611604 |
| Package 3 | |
| volume | 0,312 |
| weight | 24,34 |
| length | 0,26 |
| width | 1,2 |
| qmax | 10000 |
| qmin | 10000 |
| um | PF |
| gtin | 3414970611611 |
