Descriere

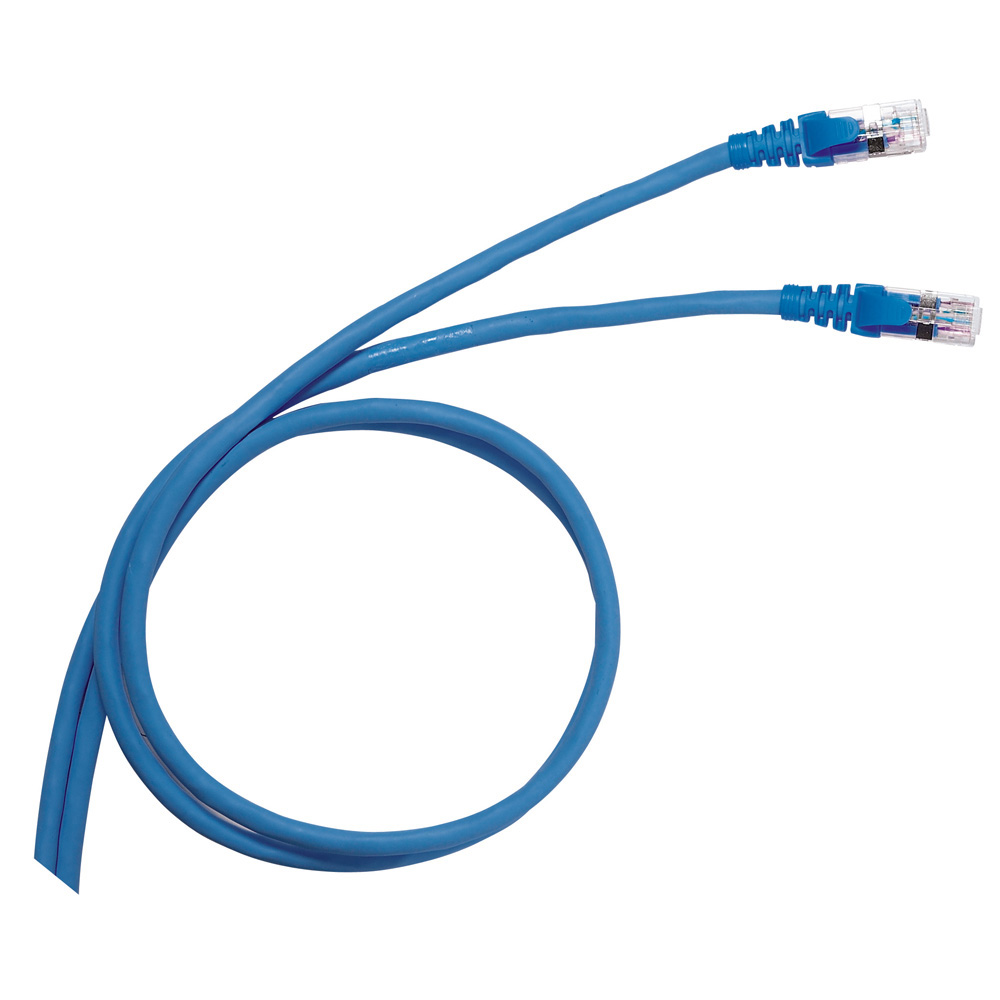

Patch cord RJ45 category 6 F/UTP screened PVC 3 meters
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Measurements | |
| AWG-size | 26 |
| Length | 3 |
| Material | |
| Halogen free according to EN IEC 60754-2 | - |
| Halogen free according to EN IEC 60754-1 | - |
| Halogen free according to EN IEC 60754-3 | - |
| Options | |
| Locking lever | Yes |
| Other | |
| Cable construction | 1x4 |
| NVP value | - |
| Category | 6 |
| Pin assignment | 1:1 |
| Anti-kink sleeve | Moulded-on |
| Approval/certification | |
| Compatible with Grade3TV according to XP-C 90-483 | No |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Model/type | |
| Cable type | F/UTP |
| Protection | |
| Fire retardant version | No |
| Oil resistant according to EN IEC 60811-404 | No |
| Colour | |
| Colour outer sheath | Blue |
| Colour anti-kink sleeve | Blue |
| Connection | |
| Type of connector connection 1 | RJ45 8(8) |
| Type of connector connection 2 | RJ45 8(8) |
| Package 1 | |
| volume | 0,000864 |
| weight | 0,118 |
| length | 0,02 |
| width | 0,18 |
| qmax | 1 |
| qmin | 1 |
| um | BX |
| gtin | 3245060517649 |
| Package 2 | |
| volume | 0,02108 |
| weight | 2,64 |
| length | 0,345 |
| width | 0,235 |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 3414970657909 |
| Package 3 | |
| volume | 0,594 |
| weight | 47,52 |
| length | 0,495 |
| width | 1,2 |
| qmax | 360 |
| qmin | 360 |
| um | PF |
| gtin | 3414972683456 |
| Dimensions of product | |
| Depth | 0,003 |
