Descriere

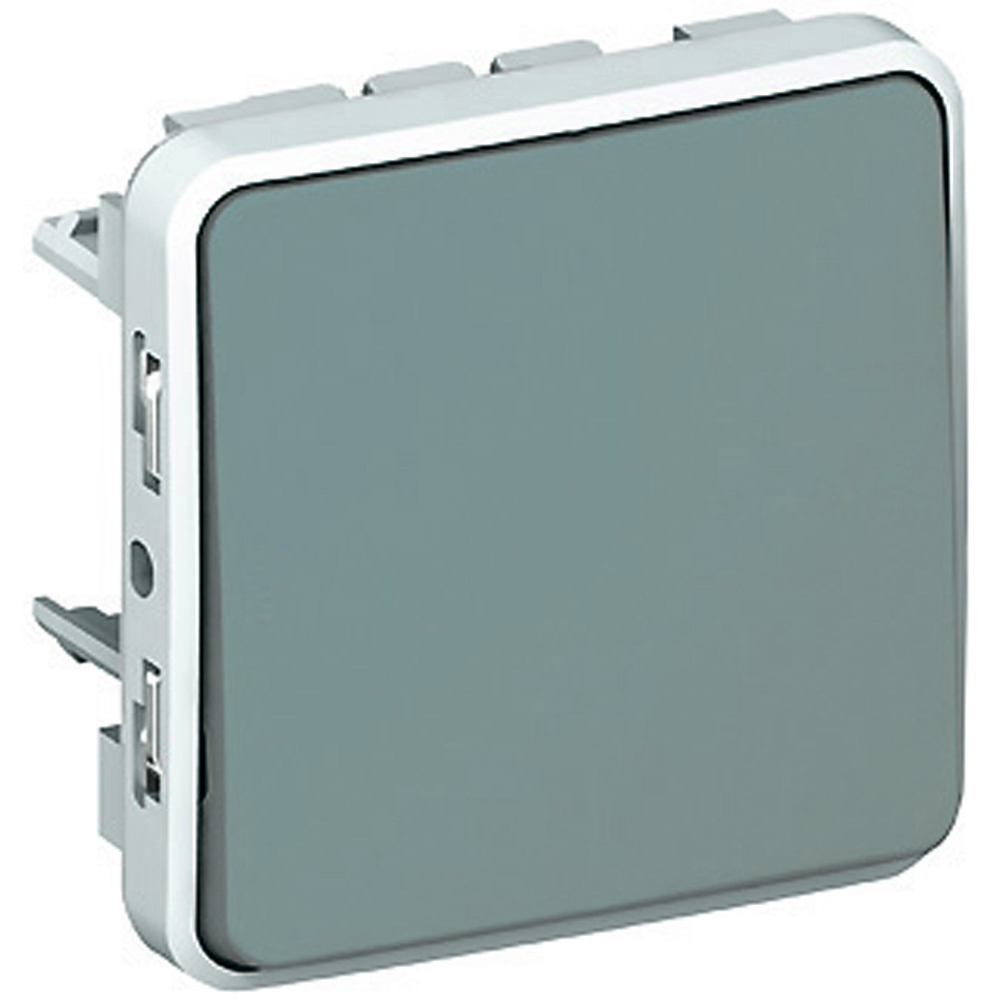

Push-button Plexo IP 55 - N/O contact - 10 A - modular - grey
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Options | |
| Label space/information surface | No |
| Anti-bacterial treatment | No |
| IFTTT support available | No |
| Material | |
| Material | Plastic |
| Surface finishing | Matt |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Surface protection | Untreated |
| Connection | |
| Connection type | Push-in clamp |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 0 |
| Number of revolving contacts | - |
| Mounting/installation | |
| Mounting method | Other |
| Type of fastening | Other |
| Electrical | |
| Nominal voltage | 250 |
| Number of poles | 1 |
| Rated current | 10 |
| Model/type | |
| Number of modules (module system) | 2 |
| Contactless type | No |
| With lighting | No |
| With light source | No |
| Model | Single push button |
| Imprint | None |
| With signal lamp | No |
| Assembly arrangement | Basic element with central cover plate |
| Number of rockers | 1 |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Monitoring contact | No |
| Colour | |
| Transparent | No |
| RAL-number (similar) | 7046 |
| Colour | Grey |
| Measurements | |
| Min. depth of built-in installation box | 40 |
| Device depth | 40 |
| Device width | 64 |
| Device height | 64 |
| Other | |
| Operating principle | - |
| Impact strength | IK07 |
| Protection | |
| Suitable for degree of protection (IP) | IP55 |
| Setting/control | |
| Method of operation | Rocker |
| Package 1 | |
| volume | 0,002592 |
| weight | 0,64 |
| length | 0,052 |
| width | 0,14 |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| Package 2 | |
| volume | 0,030515 |
| weight | 6,7 |
| length | 0,301 |
| width | 0,274 |
| qmax | 100 |
| qmin | 100 |
| um | CT |
| gtin | 3414970712400 |
| Dimensions of product | |
| Length | 0,064 |
| Width | 0,064 |
| Depth | 0,04 |
