Descriere

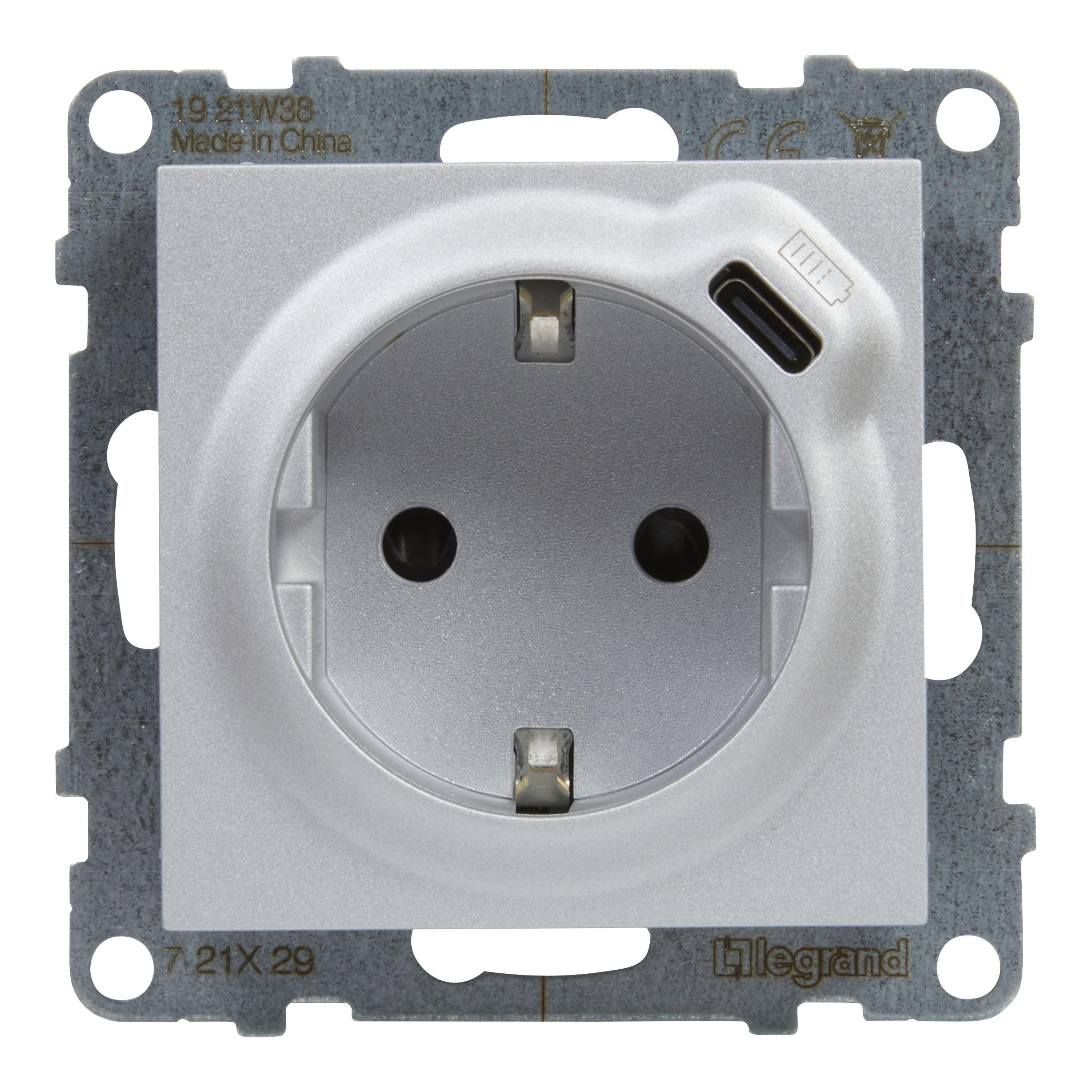

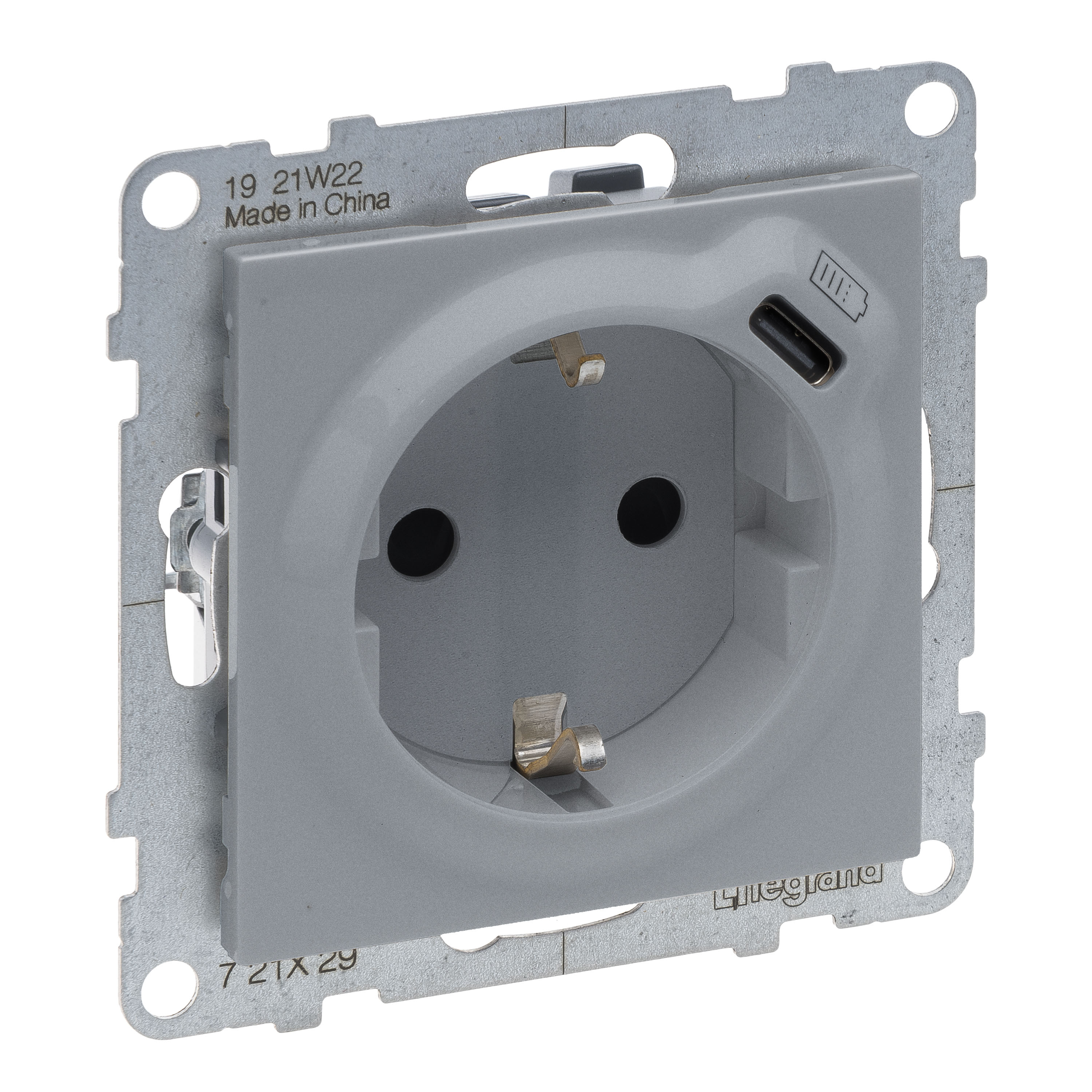

COMBINED SOCKET 2P+E SCHUKO STANDARD AUTO TERMINALS SHUTTERED + USB TYPE C ALU
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Electrical | |
| Overvoltage protection | No |
| Nominal current | 16 |
| Special power supply | Other |
| Nominal voltage | 250 |
| Max. current rating of USB power supply | - |
| Rated fault current | - |
| Number of phases | 1 |
| Options | |
| Rotated central insert | No |
| Eject-mechanism | No |
| Anti-bacterial treatment | No |
| Label space/information surface | No |
| Concurrently switching neutral conductor | No |
| Lockable | No |
| IFTTT support available | No |
| Socket outlets phase-separated | No |
| Material | |
| Material quality | Thermoplastic |
| Material | Plastic |
| Surface finishing | Glossy |
| Halogen free | Yes |
| Surface protection | Lacquered |
| Mounting/installation | |
| Mounting method | Flush-mounted |
| Mounting direction | - |
| Type of fastening | Mounting with claw and screw |
| Insulated mounting | No |
| Connection | |

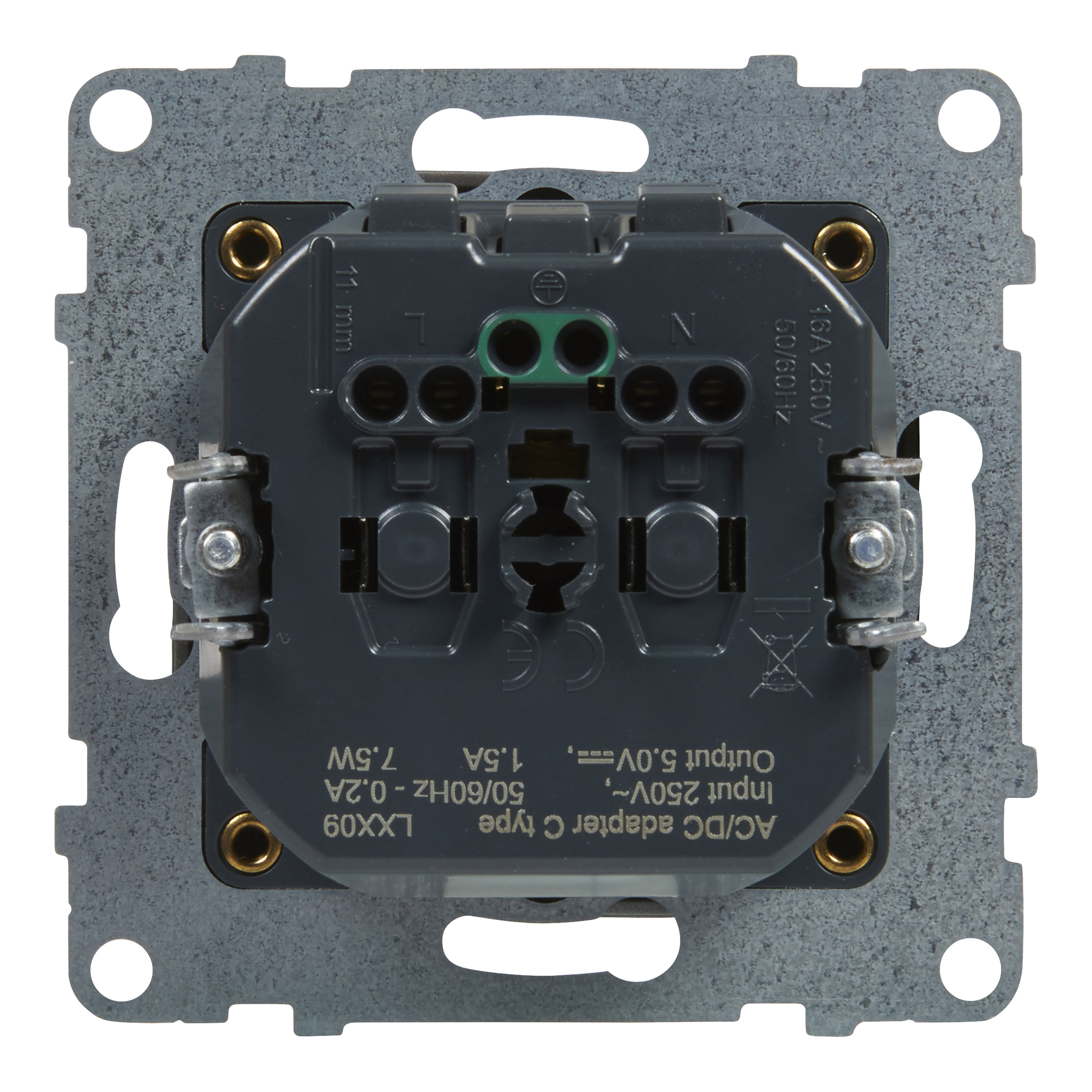

| Connection type | Push-in clamp |
| Number of ports USB-C | 1 |
| Number of ports USB-A | 0 |
| Number of active contacts (square) | 0 |
| Number of active contacts (flat) | 0 |
| Number of active contacts (round) | 2 |
| Protection | |
| Fault current protection | No |
| Suitable for degree of protection (IP) | IP20 |
| Inflammability class of insulation material according to UL 94 | - |
| Model/type | |
| Number of modules (module system) | 2 |
| With hinged lid | No |
| Model | Socket outlet with protective contact CEE 7/3 (type F) |
| Number of socket outlets switchable | 0 |
| Assembly arrangement | Basic element with central cover plate |
| With on/off switch | No |
| With orientation lighting | No |
| With function lighting | No |
| Number of socket outlets | 1 |
| With signal lamp | No |
| With built-in bluetooth speaker | No |
| With miniature fuse | No |
| Number of loop throughs | - |
| With enhanced contact protection | Yes |
| With loop through function | No |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| With Wi-Fi signal repeater | No |
| Measurements | |
| Min. depth of built-in installation box | 40 |
| Device depth | 44.8 |
| Device width | 72.9 |
| Device height | 72.9 |
| Device diameter | - |
| Other | |
| Imprint/indication | None |
| Impact strength | IK04 |
| Protective contact | Other |
| Frequency | 50 |
| Colour | |
| Metallic colour | Yes |
| RAL-number (similar) | - |
| Colour | Aluminium |
| Transparent | No |
| Colour of switch operator | Aluminium |
| Approval/certification | |
| For heavy conditions according to VDE | No |
| Compliant with UK Building Regulations Part M | - |
| Package 1 | |
| volume | 0,002064 |
| weight | 0,463 |
| length | 0,115 |
| width | 0,093 |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 3414972046558 |
| Package 2 | |
| volume | 0,048077 |
| weight | 9,66 |
| length | 0,202 |
| width | 0,398 |
| qmax | 100 |
| qmin | 100 |
| um | CT |
| gtin | 3414972145930 |
| Package 3 | |
| volume | 0,4152 |
| weight | 48,3 |
| length | 0,346 |
| width | 1,2 |
| qmax | 500 |
| qmin | 500 |
| um | PF |
| gtin | 3414973089646 |
| Dimensions of product | |
| Length | 0,0729 |
| Width | 0,0729 |
| Depth | 0,0448 |
