Descriere

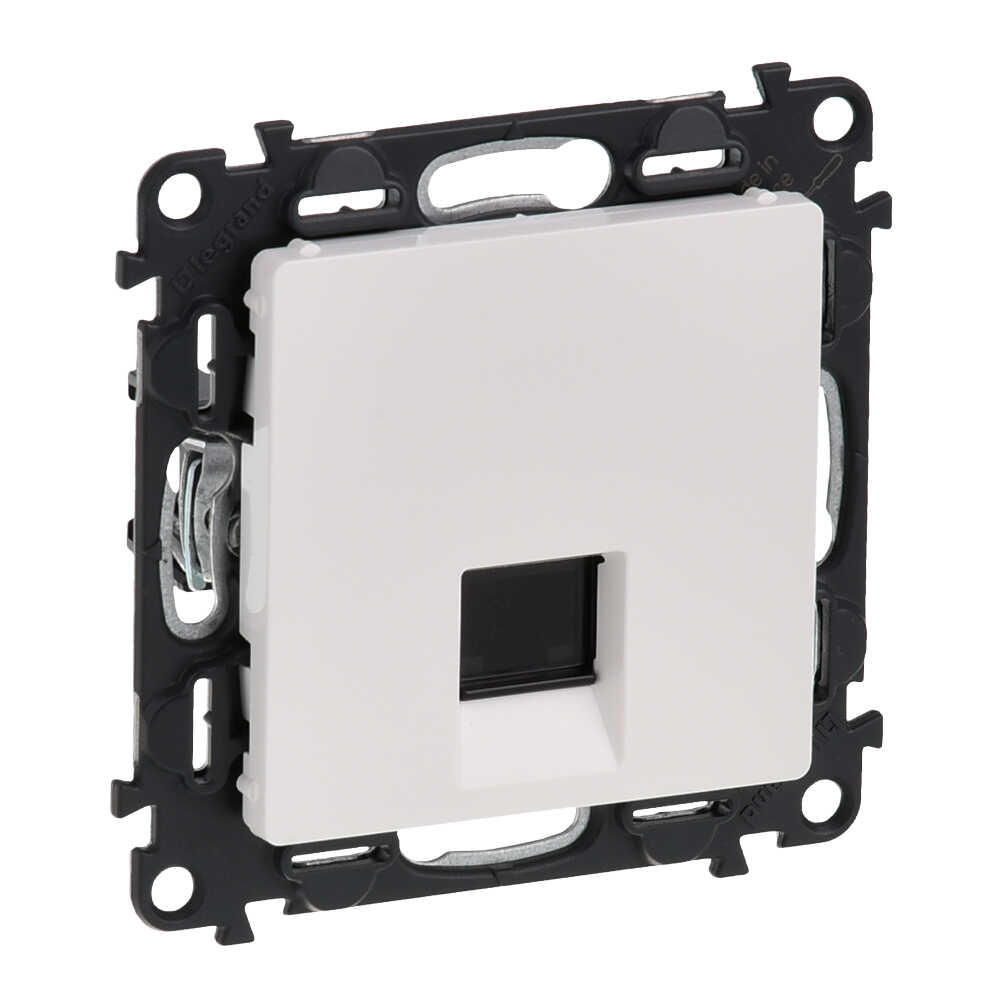

RJ45 socket Valena Life category 6 a STP with cover plate white
Documente
Fisa tehnica
Instructiuni
Specificatii
| Mounting/installation | |
| Duct installation | No |
| Type of fastening | Screwing |
| Floor box/subfloor mounted | No |
| Surface mounting | No |
| Flush-mounted installation | Yes |
| Model/type | |
| With dust cover | Yes |
| With label space | No |
| Number of modules (module system) | - |
| With terminal resistor | - |
| Mounting method shielding connection | Other |
| With buses/couplings | Yes |
| Assembly arrangement | Basic element with central cover plate |
| Colour | |
| Colour coding | Yes |
| RAL-number | 9003 |
| Colour | White |
| Protection | |
| Degree of protection (IP) | IP21 |
| Options | |
| Shielded buses | Yes |
| Shielded housing | - |
| Mechanical coding | No |
| Separate strain relief | No |
| Compatible with third-party covers | - |
| Connection | |
| Separate earthing connection | No |
| Connection type | Insulation displacement connector |
| Type of connector | RJ45 8(8) |
| Suitable for number of connectors | 1 |
| Measurements | |
| Device depth | 37.4 |
| Device width | 74.7 |
| Device height | 74.7 |
| Other | |
| Category | 6A (IEC) |
| Outlet direction | Straight |
| Package 1 | |
| volume | 0,002668 |
| weight | 0,51 |
| length | 0,117 |
| width | 0,12 |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 3414970541796 |
| Package 2 | |
| volume | 0,033321 |
| weight | 5,3 |
| length | 0,14 |
| width | 0,398 |
| qmax | 50 |
| qmin | 50 |
| um | CT |
| gtin | 3414970541802 |
| Package 3 | |
| volume | 0,366 |
| weight | 26,5 |
| length | 0,305 |
| width | 1,2 |
| qmax | 250 |
| qmin | 250 |
| um | PF |
| gtin | 3414970835819 |
| Dimensions of product | |
| Length | 0,0747 |
| Width | 0,0747 |
| Depth | 0,0374 |
