Descriere

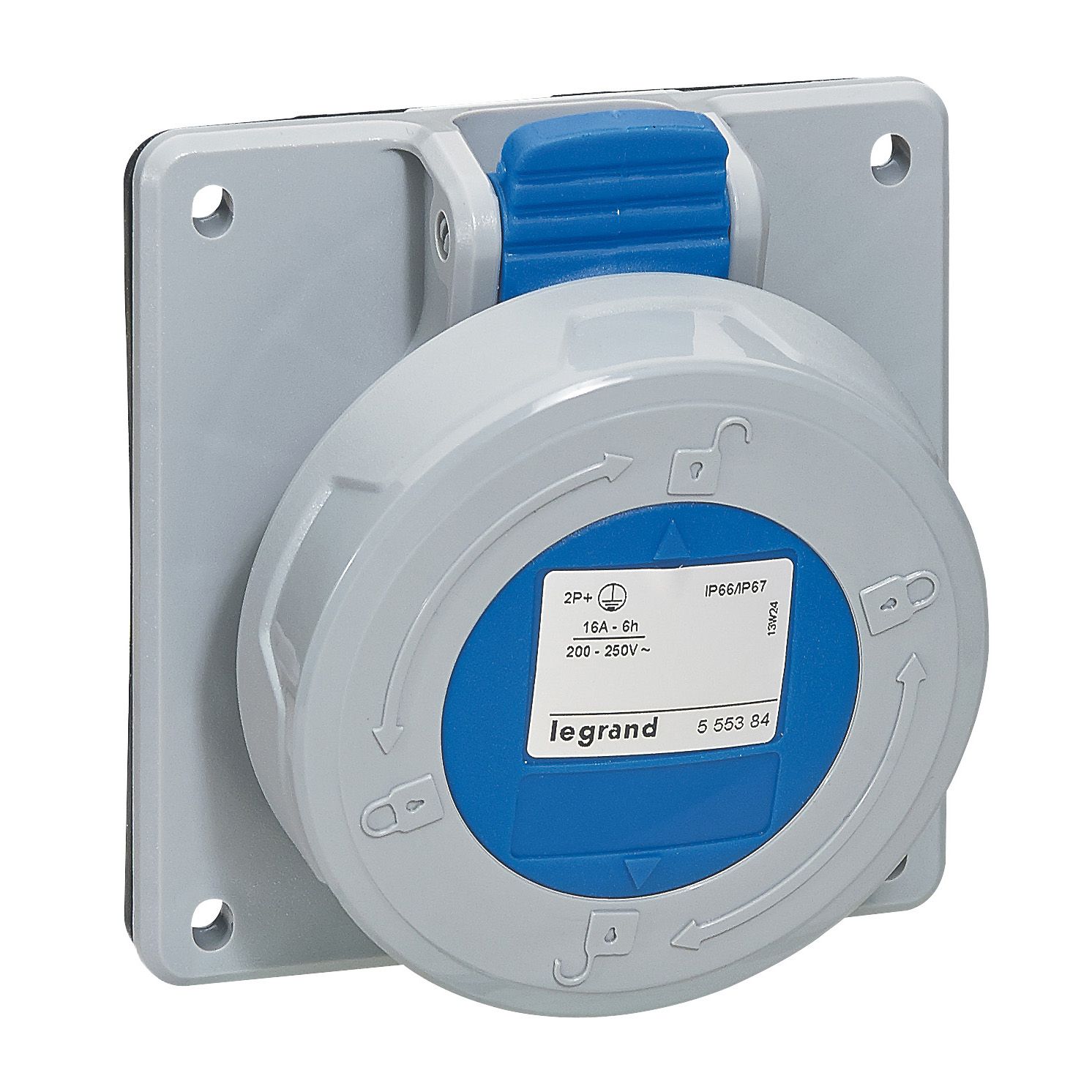

Panel mounting socket P17 - IP66/67 - 200/250 V~ - 16 A - 2P+E
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Specificatii
| Mounting/installation | |
| Drill hole distance vertical | 70 |
| Drill hole distance horizontal | 70 |
| Other | |
| Insert direction | Straight |
| Rated frequency | - |
| Clock hour position | 6 |
| Measurements | |
| Flange size vertical | 84 |
| Flange size horizontal | 84 |
| Protection | |
| Degree of protection (IP) | IP67 |
| Material | |
| Material | Plastic |
| Surface coating contacts | - |
| Contact material | - |
| Model/type | |
| Military model | No |
| Electrical | |
| Number of poles | 3 |
| Rated voltage | - |
| IEC-amperage | 16 |
| Voltage according to EN 60309-2 | 230 V (50+60 Hz) blue |
| Amperage according to UL/CSA (for UL-version) | - |
| Colour | |
| RAL-number | - |
| Identification colour | Blue |
| Connection | |
| Connection system | Screwed terminal |
| Package 1 | |
| volume | 0,00407 |
| weight | 0,728 |
| length | 0,1 |
| width | 0,11 |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 3414970530400 |
| Package 2 | |
| volume | 2,0136 |
| weight | 283,92 |
| length | 1,678 |
| width | 1,2 |
| qmax | 1950 |
| qmin | 1950 |
| um | PF |
| gtin | 3414970530417 |
