Descriere

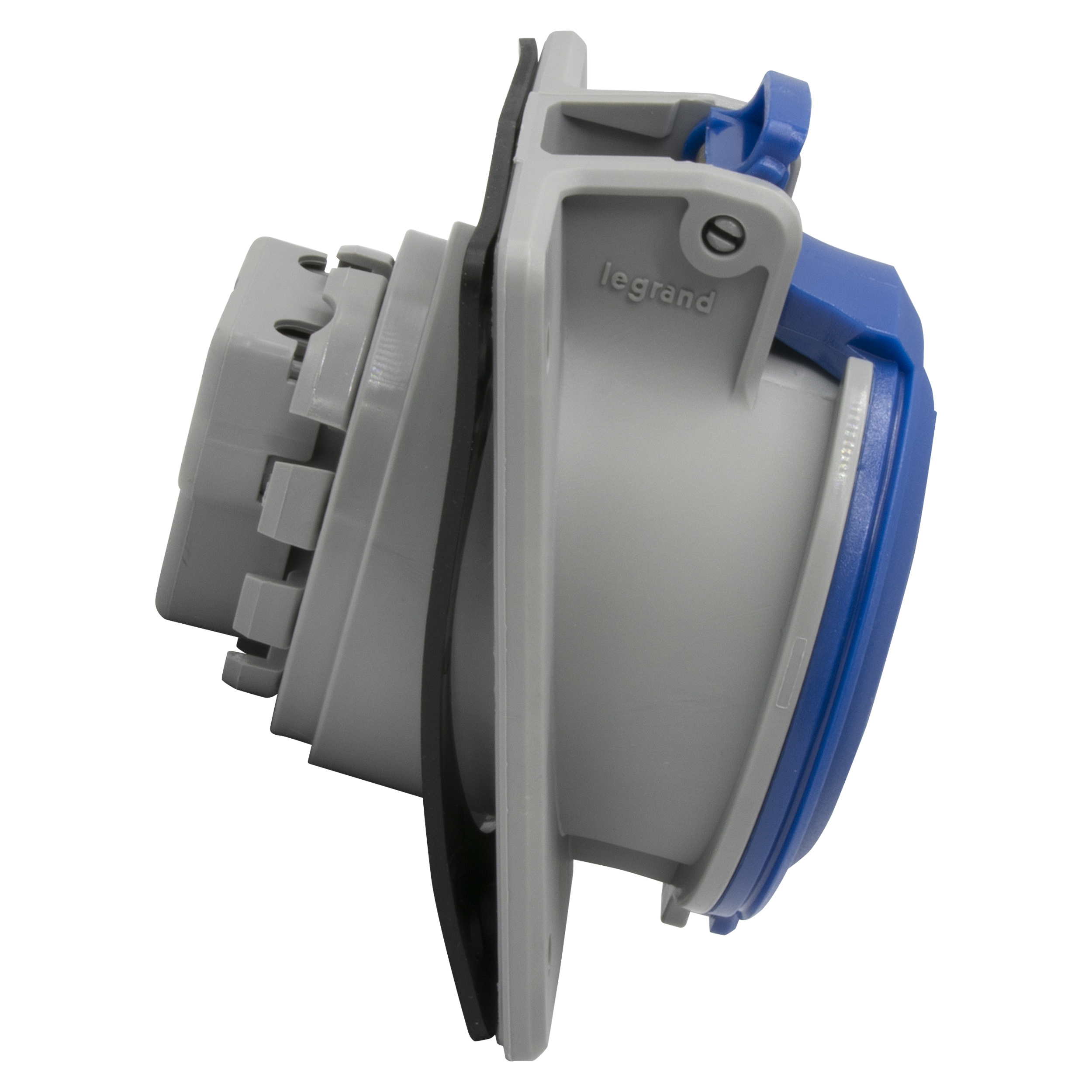

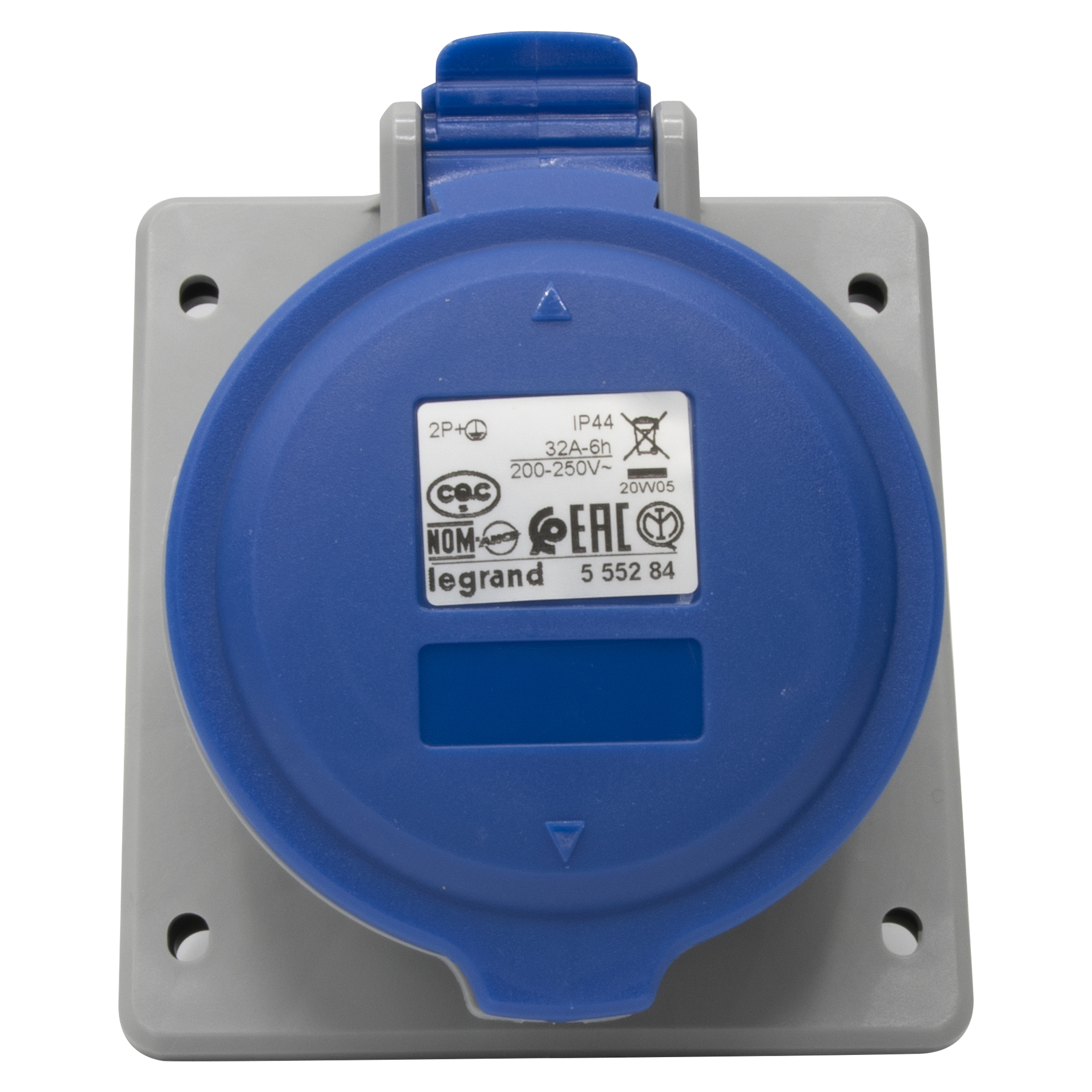

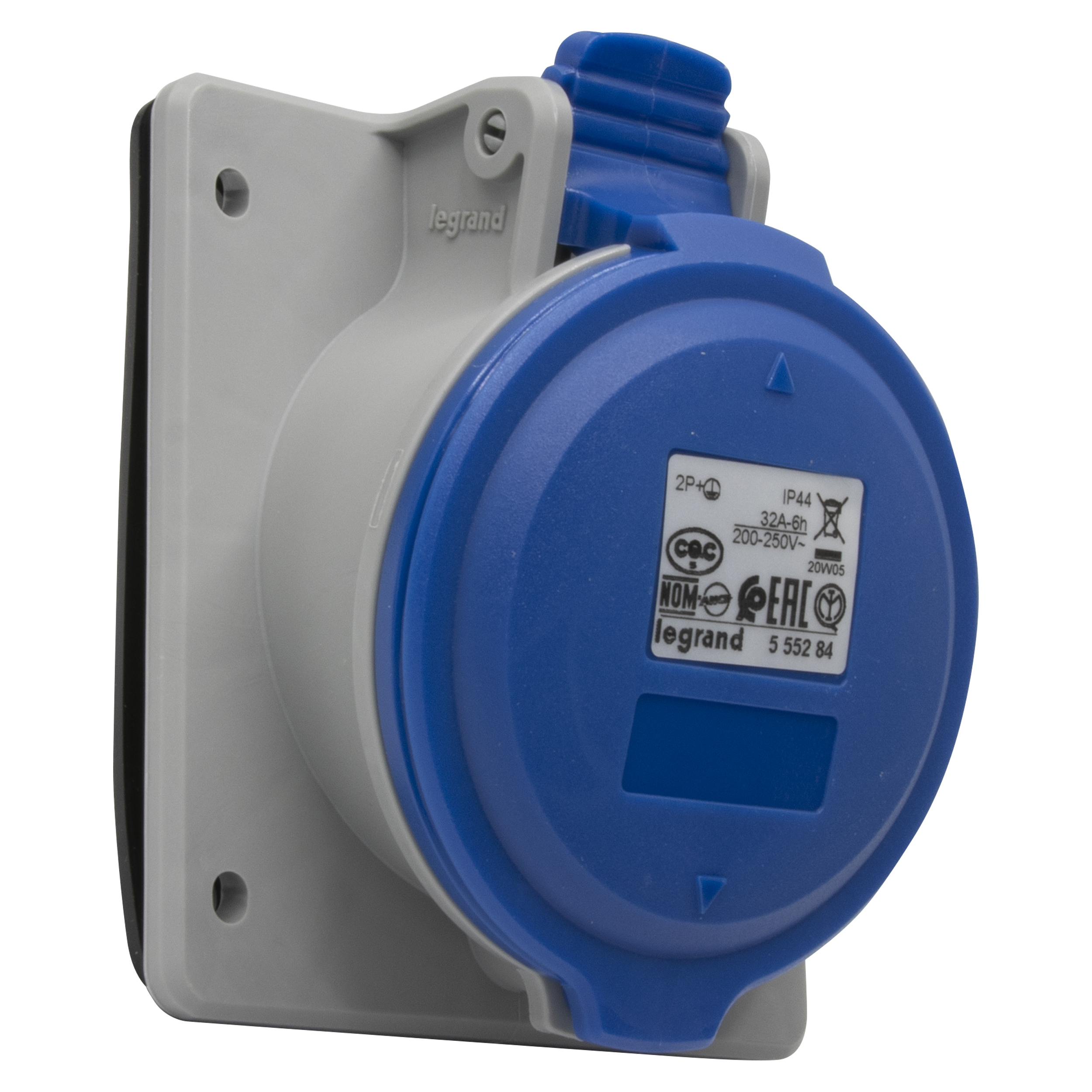

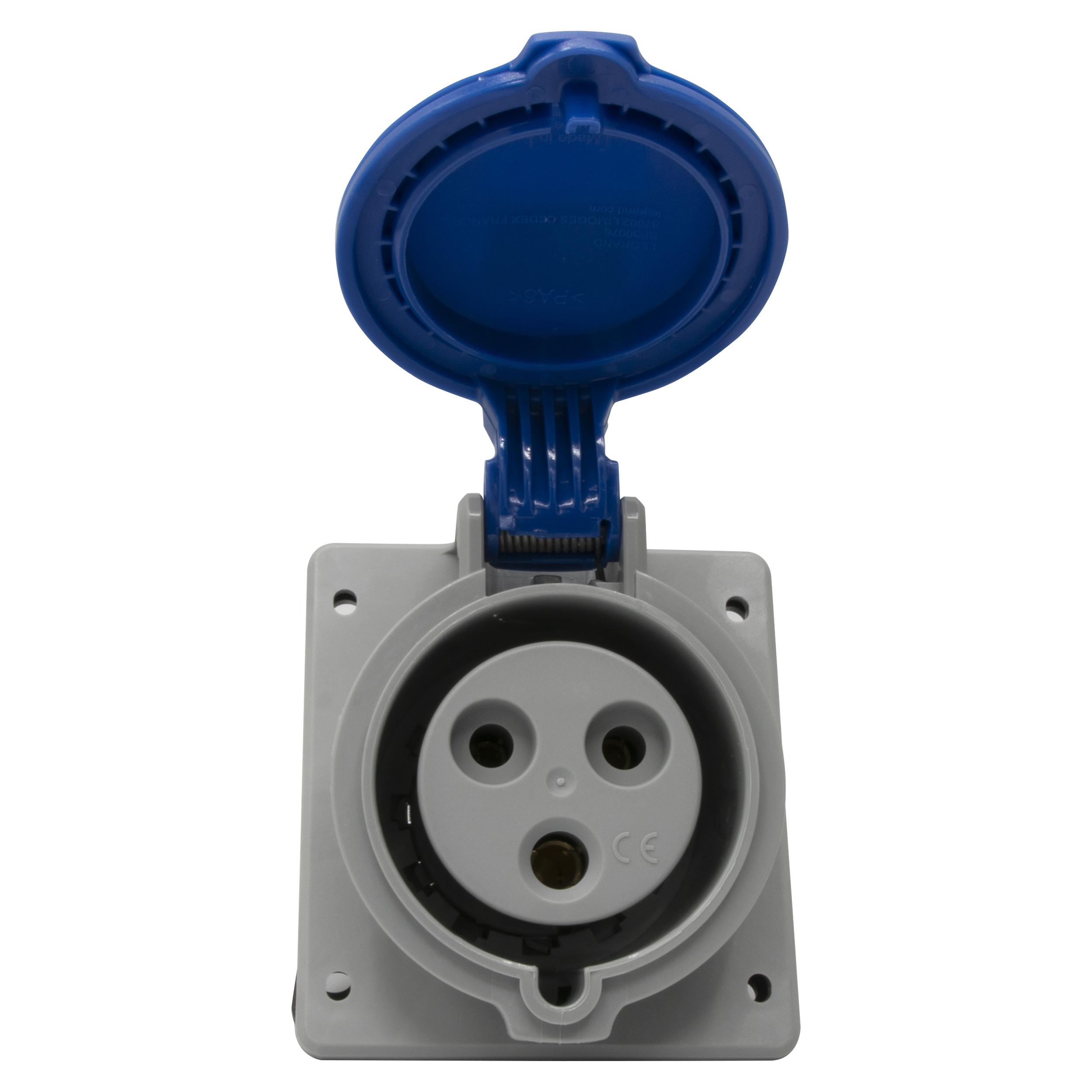

Panel mounting socket P17 - inclined outlet - IP44 - 200/250 V~ - 32 A - 2P+E
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Specificatii
| Mounting/installation | |
| Drill hole distance vertical | 70 |
| Drill hole distance horizontal | 70 |
| Other | |
| Insert direction | Straight |
| Rated frequency | - |
| Clock hour position | 6 |
| Measurements | |
| Flange size vertical | 84 |
| Flange size horizontal | 84 |
| Protection | |
| Degree of protection (IP) | IP44 |
| Material | |
| Material | Plastic |
| Surface coating contacts | - |
| Contact material | - |
| Model/type | |
| Military model | No |
| Electrical | |
| Number of poles | 3 |
| Rated voltage | - |
| IEC-amperage | 32 |
| Voltage according to EN 60309-2 | 230 V (50+60 Hz) blue |
| Amperage according to UL/CSA (for UL-version) | - |
| Colour | |
| RAL-number | - |
| Identification colour | Blue |
| Connection | |

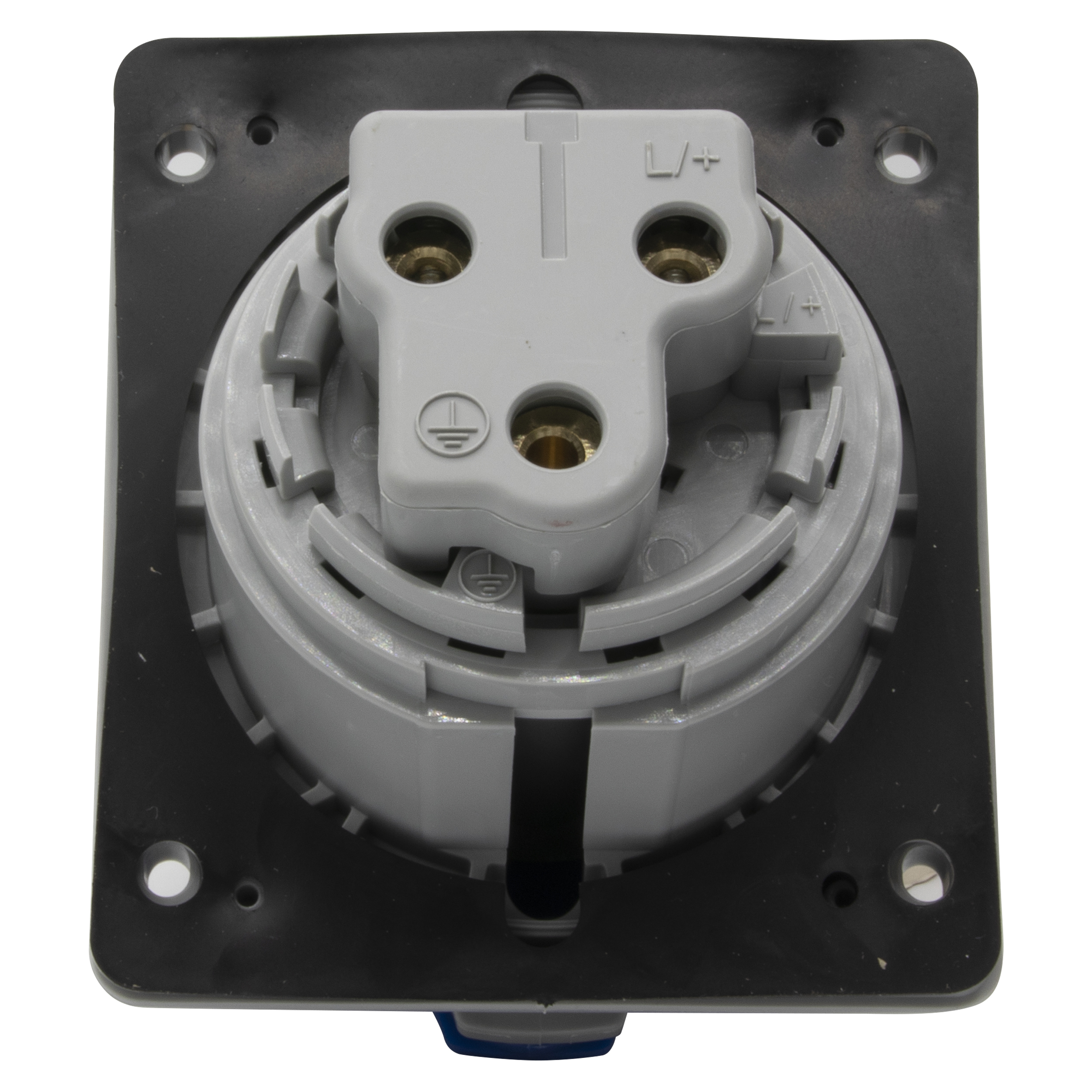

| Connection system | Screwed terminal |
| Package 1 | |
| volume | 0,008374 |
| weight | 1,676 |
| length | 0,095 |
| width | 0,215 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 3414970529879 |
| Package 2 | |
| volume | 0,9012 |
| weight | 100,56 |
| length | 0,751 |
| width | 1,2 |
| qmax | 600 |
| qmin | 600 |
| um | PF |
| gtin | 3414970529886 |
