Descriere

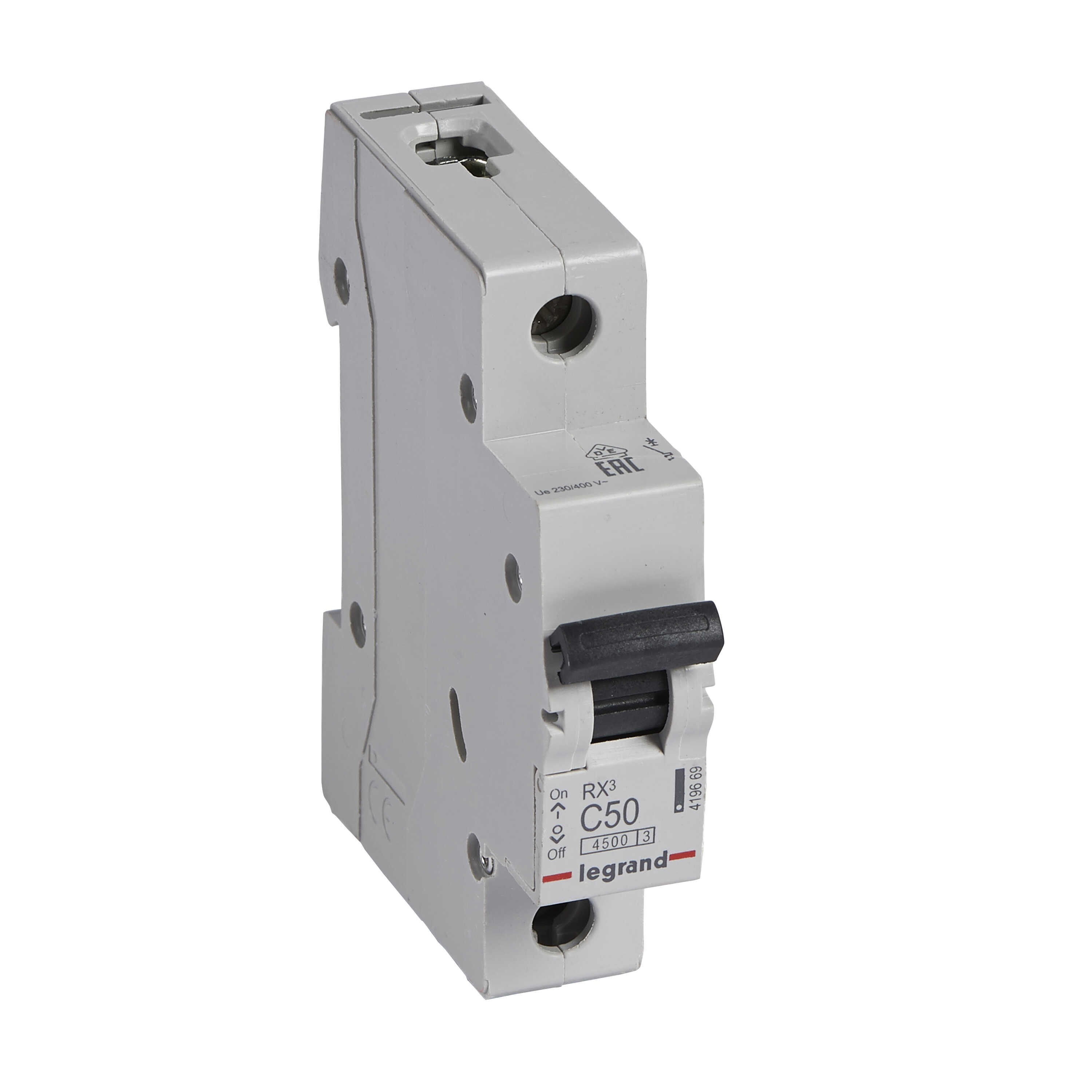

MCB RX³ 4500 - 1P - 230/400V~ - 50 A - C curve
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Protection | |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Connection | |
| Connectable conductor cross section solid-core | - |
| Connectable conductor cross section multi-wired | - |
| Operating conditions | |
| Ambient temperature during operating | - |
| Electrical | |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 4.5 |
| Voltage type | AC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | - |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | - |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 4.5 |
| Rated impulse withstand voltage Uimp | 4 |
| Power loss | - |
| Rated insulation voltage Ui | 400 |
| Overvoltage category | - |
| Rated current | 50 |
| Current limiting class | 3 |
| Release characteristic | C |
| Rated voltage | 230 |
| Options | |
| Concurrently switching neutral conductor | No |
| Additional equipment possible | No |
| Model/type | |
| Number of protected poles | 1 |
| Number of poles (total) | 1 |
| Other | |
| Frequency | 50 |
| Pollution degree | 2 |
| Measurements | |
| Built-in depth | 44 |
| Width in number of modular spacings | 1 |
| Mounting/installation | |
| Flush-mounted installation | Yes |
| Package 1 | |
| volume | 0,001864 |
| weight | 1,767 |
| length | 0,088 |
| width | 0,095 |
| qmax | 12 |
| qmin | 12 |
| um | BX |
| gtin | 3414970502117 |
| Package 2 | |
| volume | 0,014423 |
| weight | 10,809 |
| length | 0,202 |
| width | 0,238 |
| qmax | 72 |
| qmin | 72 |
| um | CT |
| gtin | 3414970502100 |
| Package 3 | |
| volume | 0,924 |
| weight | 518,832 |
| length | 0,77 |
| width | 1,2 |
| qmax | 3456 |
| qmin | 3456 |
| um | PF |
| gtin | 3414970581228 |
| Dimensions of product | |
| Length | 0,0888 |
| Width | 0,0178 |
| Depth | 0,0773 |
