Descriere

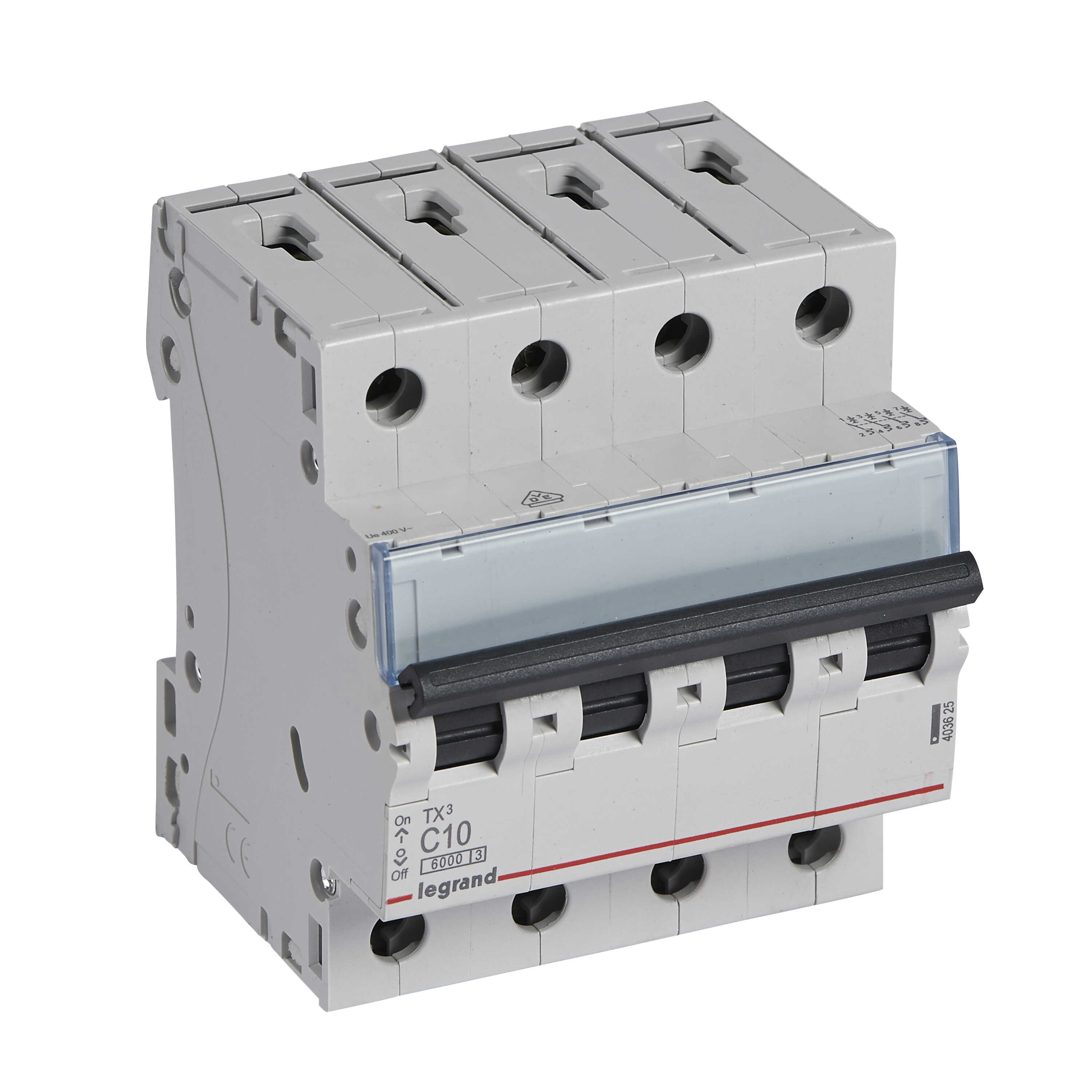

MCB TX³ 6000 - 4P - 400 V~ - 10 A - C curve - prong-type supply busbars
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Protection | |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Connection | |
| Connectable conductor cross section solid-core | - |
| Connectable conductor cross section multi-wired | - |
| Operating conditions | |
| Ambient temperature during operating | - |
| Electrical | |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 10 |
| Voltage type | AC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 6 |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 6 |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 10 |
| Rated impulse withstand voltage Uimp | 4 |
| Power loss | - |
| Rated insulation voltage Ui | 500 |
| Overvoltage category | - |
| Rated current | 10 |
| Current limiting class | 3 |
| Release characteristic | C |
| Rated voltage | 400 |
| Options | |
| Concurrently switching neutral conductor | Yes |
| Additional equipment possible | Yes |
| Model/type | |
| Number of protected poles | 4 |
| Number of poles (total) | 4 |
| Other | |
| Frequency | 50 |
| Pollution degree | 2 |
| Measurements | |
| Built-in depth | 44 |
| Width in number of modular spacings | 4 |
| Mounting/installation | |
| Flush-mounted installation | Yes |
| Package 1 | |
| volume | 0,000701 |
| weight | 0,413 |
| length | 0,089 |
| width | 0,078 |
| qmax | 1 |
| qmin | 1 |
| um | BX |
| gtin | 3245064036252 |
| Package 2 | |
| volume | 0,011816 |
| weight | 5,152 |
| length | 0,184 |
| width | 0,231 |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 3414972393928 |
| Package 3 | |
| volume | 0,516 |
| weight | 92,736 |
| length | 0,43 |
| width | 1,2 |
| qmax | 216 |
| qmin | 216 |
| um | PF |
| Dimensions of product | |
| Length | 0,088 |
| Width | 0,0708 |
| Depth | 0,0778 |
