Descriere

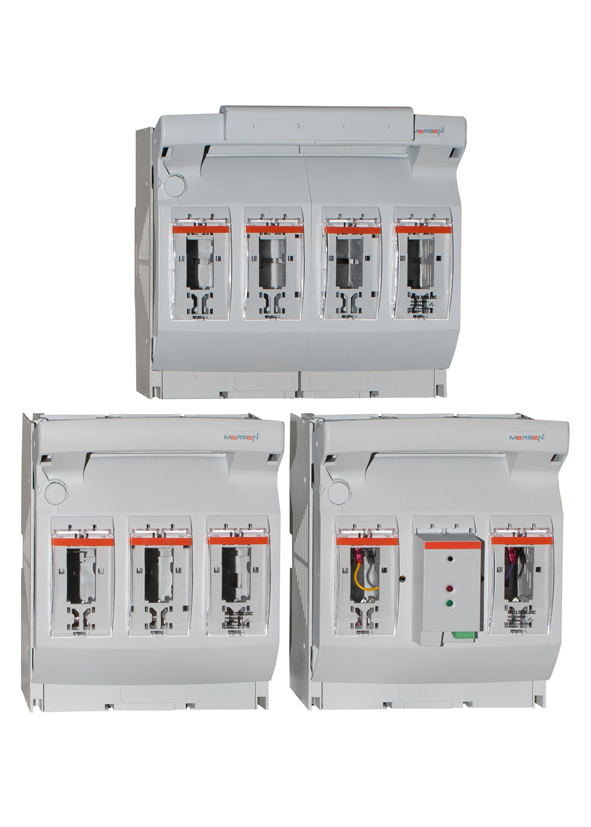

The production programme of MULTIBLOC® series 2.ST8 comprises NH fuse switch disconnectors for 400A. They are designed for bottom fitting/panel installation and are available in triple pole and quadruple pole units. For installation of MULTIBLOC® NH fuse switch disconnectors in distribution units with central cover, respective covers are used to obtain a uniform profile in height and length. MULTIBLOC® size 2 are designed for NH fuse-links in accordance with IEC/EN 60269-2, VDE 0636-2, size 2, 400A. MULTIBLOC® offers the user the possibility of fast and easy installation as well as a high degree of security during installation and maintenance.
Documente
Specificatii
| Electrical | |
| Conditioned rated short-circuit current Iq | 80 kA |
| Number of poles | 3 |
| Rated permanent current Iu | 400 A |
| Max. rated operation voltage Ue AC | 690 V |
| Measurements | |
| Construction size fuse insert | NH2 |
| Distance between rail centre, 40 mm | No |
| Distance between rail centre, 50 mm | No |
| Distance between rail centre, 60 mm | No |
| Distance between rail centre, 100 mm | No |
| Distance between rail centre, 185 mm | No |
| Model/type | |
| Model | Fuse switch disconnector |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Other | |
| Release indication | - |
| Options | |
| Double interrupting | - |
| Package 1 | |
| volume | 0,007247968 |
| weight | 3,5 |
| length | 0,262 |
| width | 0,208 |
| qmax | 1 |
| qmin | 1 |
| um | BX |
| gtin | 04027597023393 |
| Dimensions of product | |
| Volume | 0,006902 |
| Weight | 3,5 |
| Length | 0,13 |
| Width | 0,205 |
| Depth | 0,259 |
