Descriere

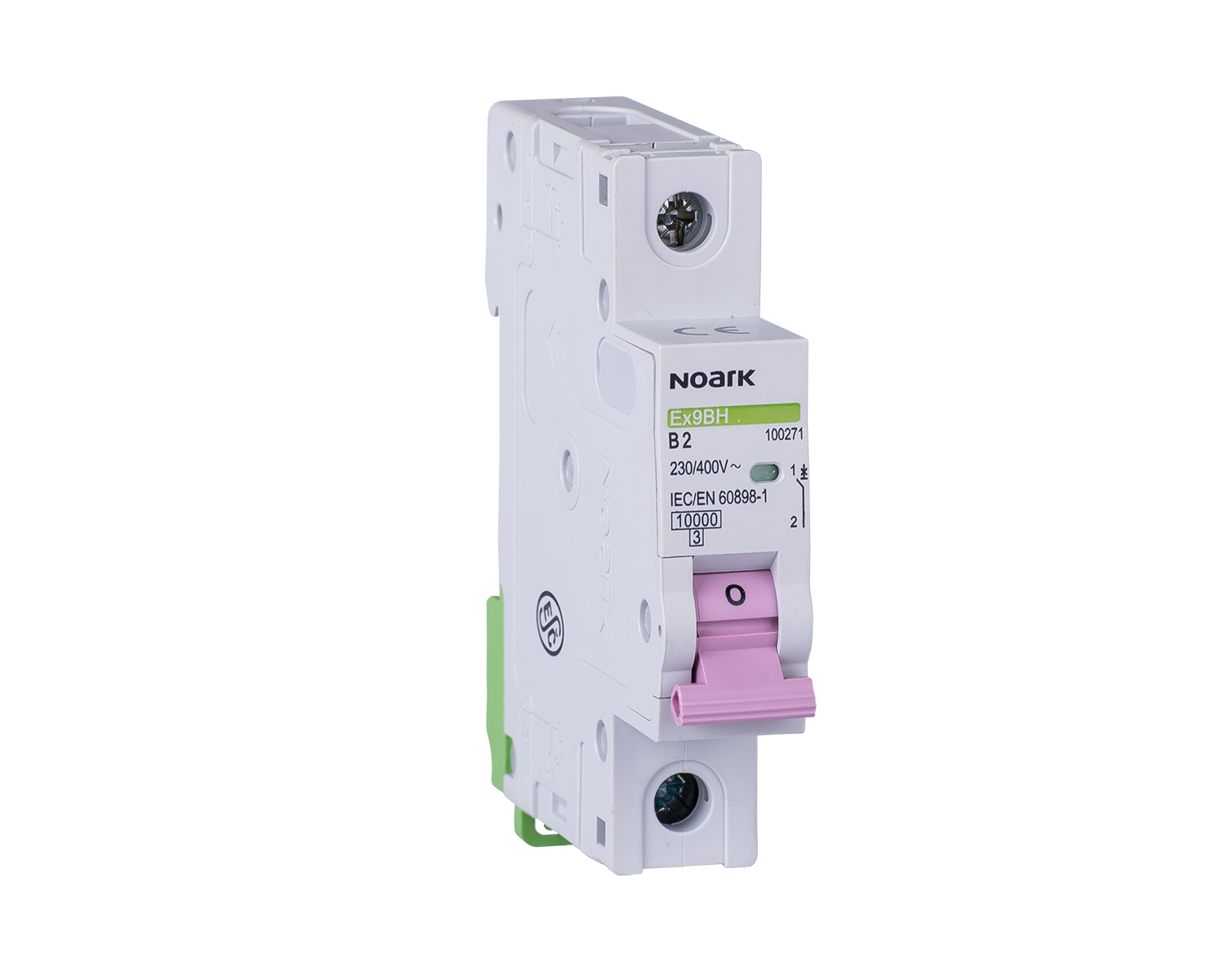

Mini-întreruptor 10 kA, caracteristica B, 10 A, 1-pol
Specificatii
| Measurements | |
| Built-in depth | 72 mm |
| Width in number of modular spacings | 1 |
| Electrical | |
| Release characteristic | B |
| Rated current | 10 A |
| Rated voltage | 230 V |
| Rated insulation voltage Ui | 690 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 10 kA |
| Voltage type | AC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 15 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 15 kA |
| Power loss | 1.8 W |
| Current limiting class | 3 |
| Overvoltage category | 3 |
| Model/type | |
| Number of poles (total) | 1 |
| Number of protected poles | 1 |
| Other | |
| Frequency | 50 Hz |
| Pollution degree | 2 |
| Mounting/installation | |
| Flush-mounted installation | No |
| Options | |
| Concurrently switching neutral conductor | No |
| Additional equipment possible | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Explosion-proof | No |
| Operating conditions | |
| Ambient temperature during operating | -30 °C |
| Connection | |
| Connectable conductor cross section multi-wired | - mm² |
| Connectable conductor cross section solid-core | 1 mm² |
