Descriere

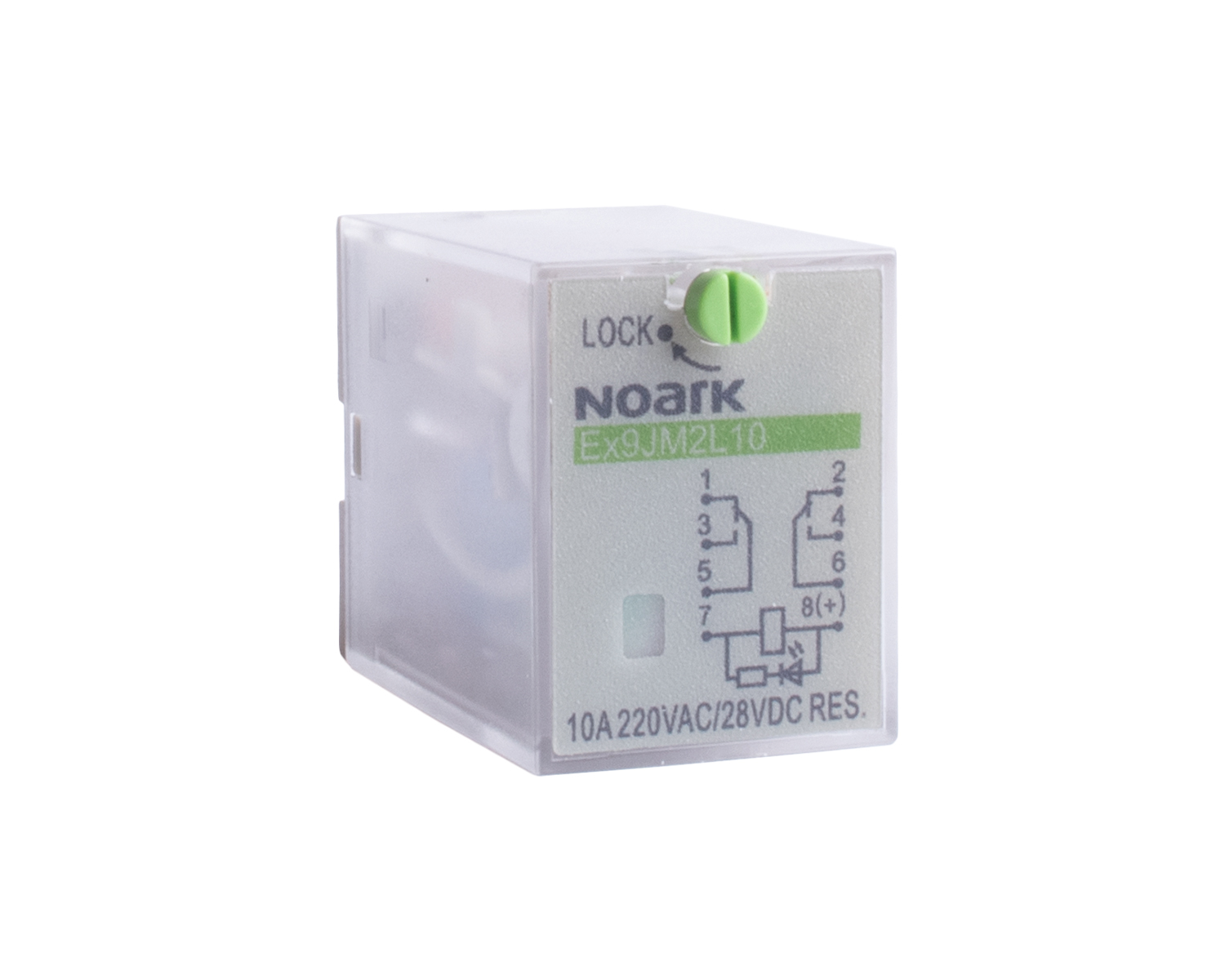

Releu Plug-in 10 A, 230 V AC, 2 contacte
Specificatii
| Connection | |
| Type of electric connection | Plug-in connection |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 2 |
| Mounting/installation | |
| Complete with socket | No |
| Model/type | |
| With detachable clamps | No |
| With LED indication | No |
| Type of switch contact | Single contact |
| With forced-guided contacts | - |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 V |
| Rated control supply voltage AC 60 Hz | 230 V |
| Rated control supply voltage DC | - V |
| Voltage type for actuating | AC |
| Voltage type (operating voltage) | AC/DC |
| Operating voltage AC 50 Hz | 250 V |
| Operating voltage AC 60 Hz | 250 V |
| Operating voltage DC | 30 V |
| Nominal current | 10 A |
| Max. starting current | - A |
| Other | |
| Drive, polarization | Polarized |
| Drive, switching attitude | Mono stable |
| Material | |
| Material of contact insert | - |
| Material contact | - |
| Material of contact surface | - |
| Protection | |
| Degree of protection (IP) | - |
| Approval/certification | |
| Relay technology category according to IEC 61810-7 | - |
| Measurements | |
| Width | 21.5 mm |
| Height | 37 mm |
| Depth | 27.5 mm |
