Descriere

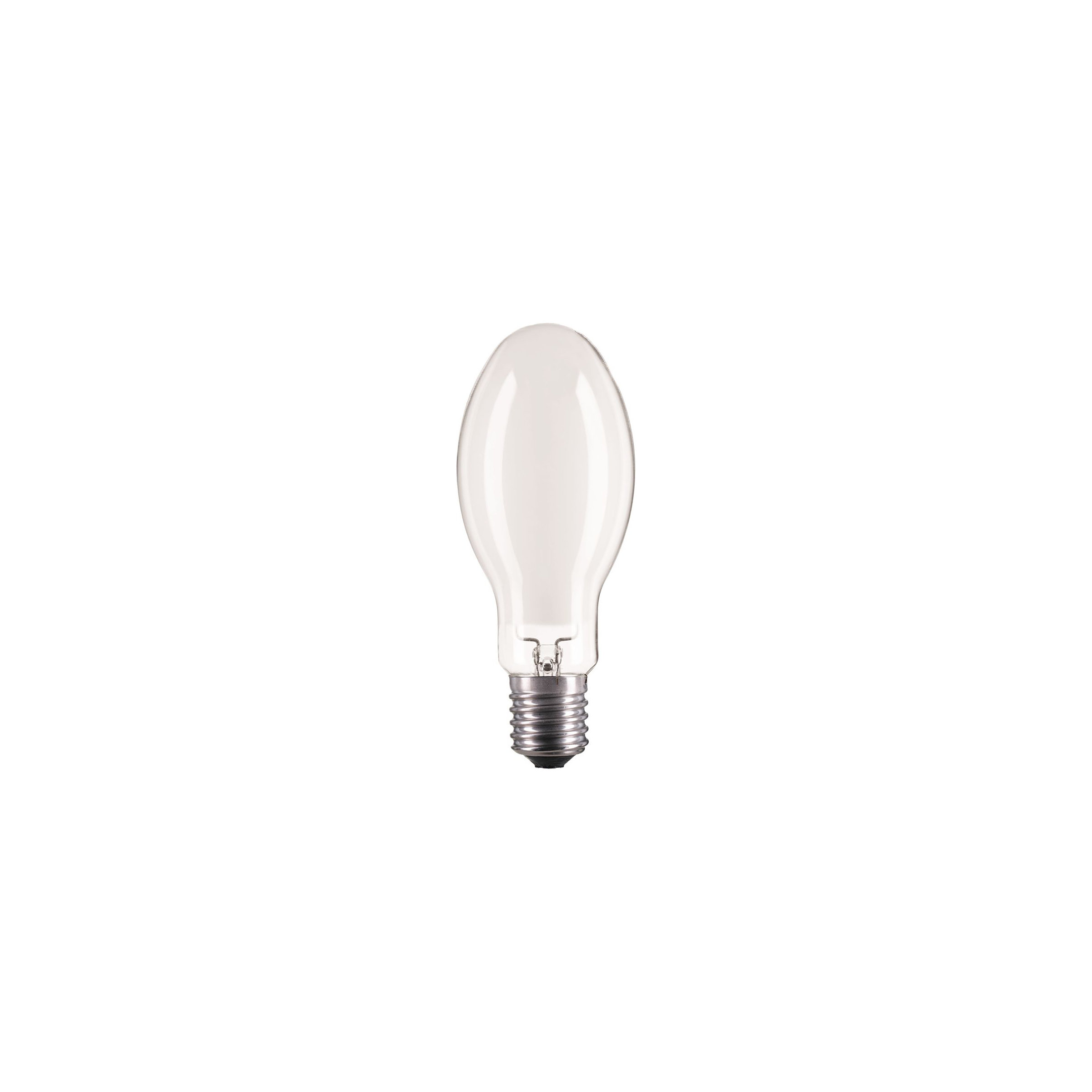

Lămpi ceramice cu descărcare în halogenuri metalice cu bec exterior tubular transparent sau elipsoidal vopsit, personalizate pentru a înlocui şi depăşi lămpile cu cuarţ cu descărcare în halogenuri metalice de pe echipamentul existent.
Documente
Specificatii
| Electrical | |
| Lamp power | 228.5 |
| Lamp voltage | 113 |
| Model/type | |
| Lamp shape | Ellipsoid |
| Model | Frosted |
| Material | |
| Material discharge tube | Ceramics |
| Other | |
| Burning position | Random |
| Lamp designation | Other |
| Average nominal lifetime | 20000 |
| Luminous flux | 20500 |
| Lamp efficacy | 90 |
| Measurements | |
| Diameter | 90 |
| Total length | 222 |
| Operating conditions | |
| External ignitor required | Yes |
| External ballast required | Yes |
| Closed luminaire required | Yes |
| Options | |
| Sun tanning lamp | No |
| Colour | |
| Colour | White |
| Colour of light | 842 |
| Colour rendering index CRI | 90-100 |
| Colour temperature | 4200 |
| Colour of light according to EN 12464-1 | Neutral white 3300-5300 K |
| Energy efficiency/environmental | |
| Energy efficiency class according to EU regulation 2019/2015 | G |
| Consumption | |
| Weighted energy consumption in 1000 hours | 229 |
| Connection | |
| Socket | E40 |
| Protection | |
| UV protection | No |
| Package 1 | |
| weight | 0,23 |
| length | 0,09 |
| width | 0,09 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| Package 2 | |
| weight | 2,757 |
| length | 0,403 |
| width | 0,305 |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 8718696596654 |
| Package 3 | |
| weight | 89,168 |
| length | 1,2 |
| width | 0,8 |
| qmax | 288 |
| qmin | 288 |
| um | PF |
