Descriere

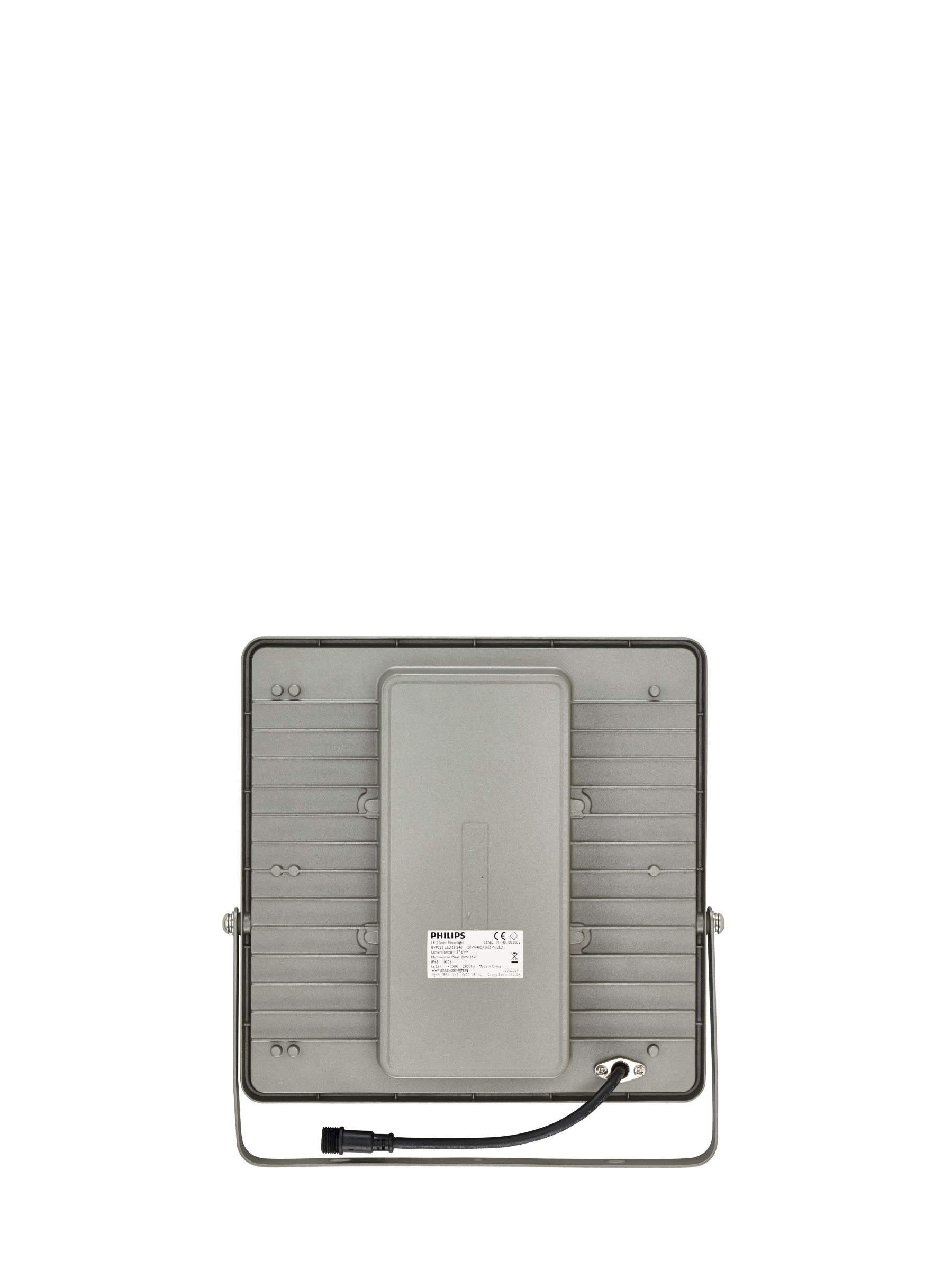

Proiector Ledinaire Solar, Aluminiu, Gri, Vopsire cu pulbere pe un strat, Balast integrat pe placa LED (DoB), Profil solar reducere intensitate lumină versiunea 1, 2800 lm, 20 W, 140 lm/W, 4000 K, (0.312,0.332) SDCM=5, CRI80, Simetric, IP65 | Protejat împotriva pătrunderii prafului, protejat împotriva jeturilor de apă, IK06 | 1 J, Clasa de siguranță III, Nivel de protecție contra supratensiunii a corpurilor de iluminat până la 1.5 kV în regim diferențial și 1.5 kV în regim comun, 2 × 0,75 mm², Conector plug-in extern, etanș la apă, cu 3 pini
Documente
Fisa tehnica
Instructiuni
Alte surse
Specificatii
| Mounting/installation | |
| Suitable for surface mounting | Yes |
| Suitable for built-in mounting | No |
| Suitable for wall mounting | Yes |
| Suitable for suspended mounting | No |
| Suitable for ceiling mounting | No |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Application | |
| Suitable for low voltage cable system | No |
| Suitable for workplace according to EN 12464-1 | No |
| Approval/certification | |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Other | |
| Luminaire efficacy | 140 |
| Unified Glare Ratio (UGR) | - |
| Suitable for number of light sources | 1 |
| Light distributor | Reflector |
| Light distribution | Symmetric |
| Beam angle | > 80° - Extreme wide beam |
| Light outlet | Direct |
| Total harmonic distortion | 0 |
| Rated lifetime L70/B50 at 25 °C | 30000 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 65 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 70 |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 7.5 |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | - |
| Impact strength | IK06 |
| Luminous flux | 2800 |
| Rated luminous flux according to IEC 62722-2-1 | 2800 |
| Flickering value Pst LM | - |
| Stroboscope effect value SVM | - |
| Energy efficiency/environmental | |
| Photobiological safety according to EN 62471 | RG1 |
| Energy efficiency class of the light source according to EU regulation 2019/2015 | Not required |
| Options | |
| Covering of the luminaire with thermally insulating material possible | No |
| IFTTT support available | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI-2 | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming DSI | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming phase cut-off (trailing edge) | No |
| Dimming phase cut-on (leading edge) | No |
| Dimming programmable | Yes |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Constant light output (CLO) | No |
| Colour | |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Housing colour | Grey |
| Reflector colour | White |
| Colour of light | White |
| Colour temperature | 4000 |
| Colour rendering index CRI | 80-89 |
| Colour of light adjustable | No |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Setting/control | |
| Operation by Bluetooth | No |
| Adjustability | Not adjustable |
| Type of control gear | LED operating device current-controlled |
| Dimming mains voltage modulation | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Model/type | |
| With movement sensor | No |
| With light sensor | No |
| Lamp type | LED not exchangeable |
| With light source | Yes |
| Lamp holder | Other |
| With control gear | Yes |
| Dimming potentiometer (integrated) | No |
| Reflector | High-gloss |
| Type of wiring | Ending |
| Material | |
| Housing material | Aluminium |
| Surface protection | Powder coating |
| Material cover | Glass transparent |
| Surface brushed | No |
| Electrical | |
| Voltage type | DC |
| Nominal voltage | 10 |
| Nominal current | 1850 |
| Suitable for lamp power | - |
| Max. system power | 20 |
| Power factor | 1 |
| Number of poles | 0 |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) | - |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) | - |
| Emergency power supply integrated | No |
| Connection | |
| Exchangeable control gear | No |
| Conductor cross section | 0 |
| Connectable conductor cross section | 0 |
| Connection type | Other |
| Protection | |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | - |
| Protection class according to IEC 61140 | III |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Operating conditions | |
| Rated ambient temperature according to IEC 62722-2-1 | 25 |
| Performance | |
| Luminous intensity | - |

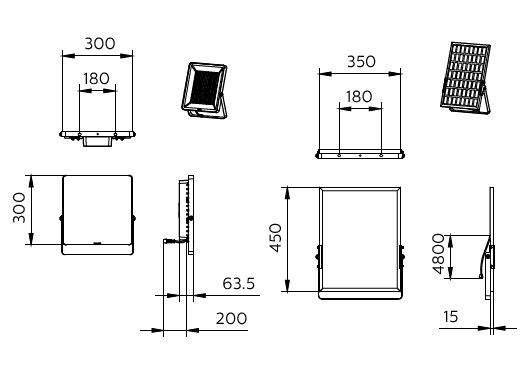

| Measurements | |
| Width | 342 |
| Height/depth | 63.5 |
| Length | 320 |
| Outer diameter | - |
| Built-in width | - |
| Built-in height/depth | - |
| Built-in length | - |
| Built-in diameter | - |
| Package 1 | |
| weight | 6,593 |
| length | 0,503 |
| width | 0,133 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| Package 2 | |
| weight | 19,78 |
| length | 0,535 |
| width | 0,448 |
| qmax | 3 |
| qmin | 3 |
| um | CT |
| gtin | 8720169752108 |
| Package 3 | |
| weight | 104,12 |
| length | 1,2 |
| width | 0,8 |
| qmax | 12 |
| qmin | 12 |
| um | PF |
