Descriere

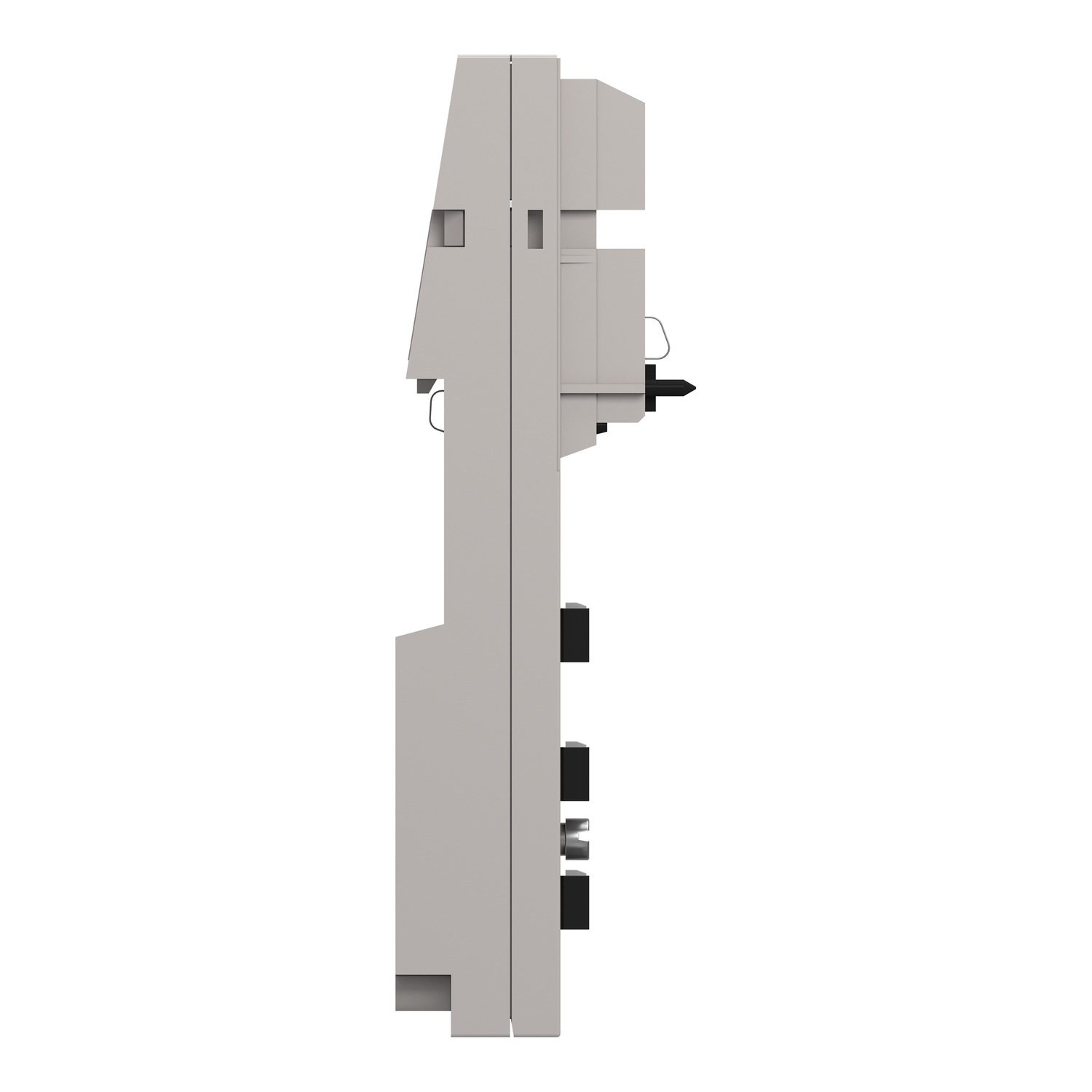

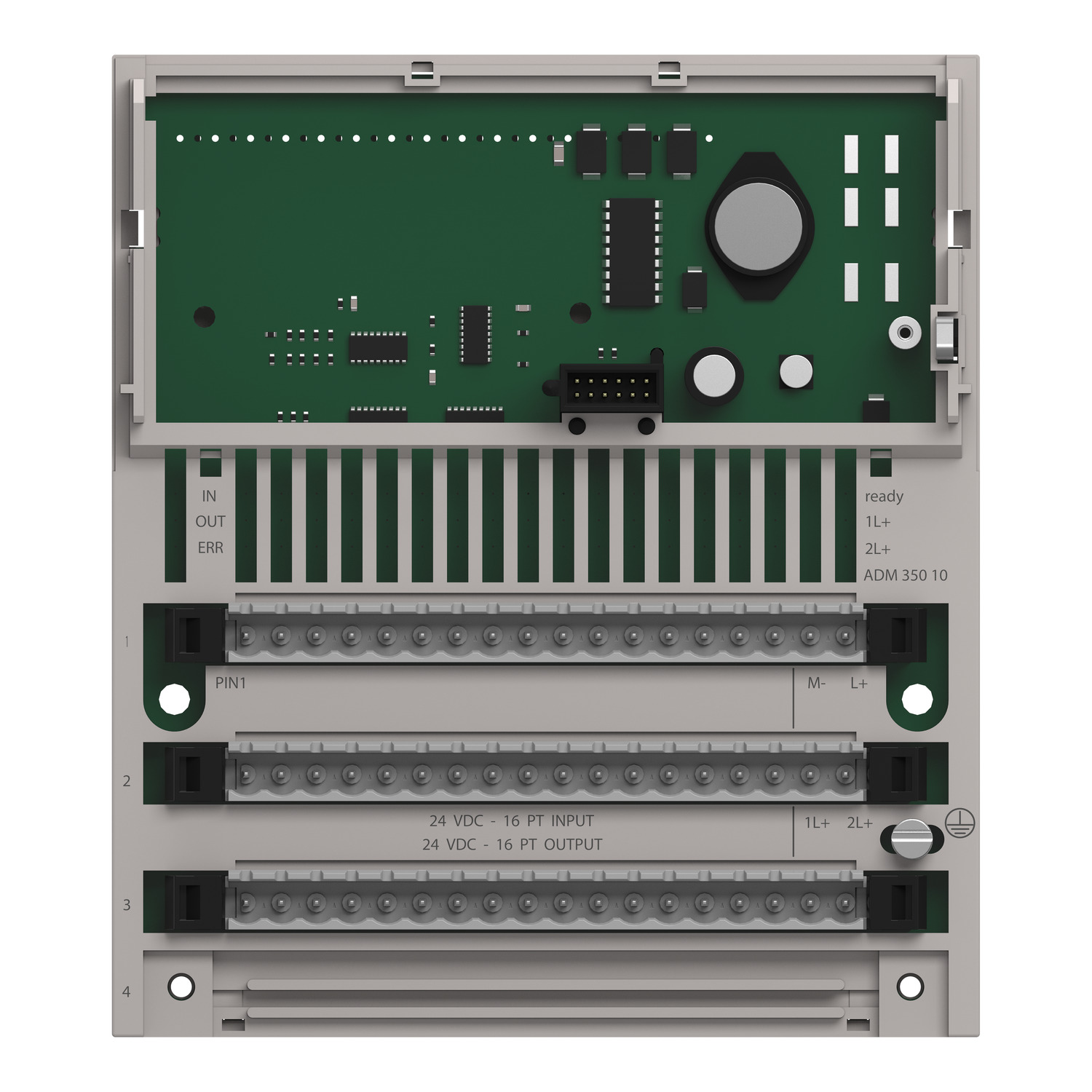

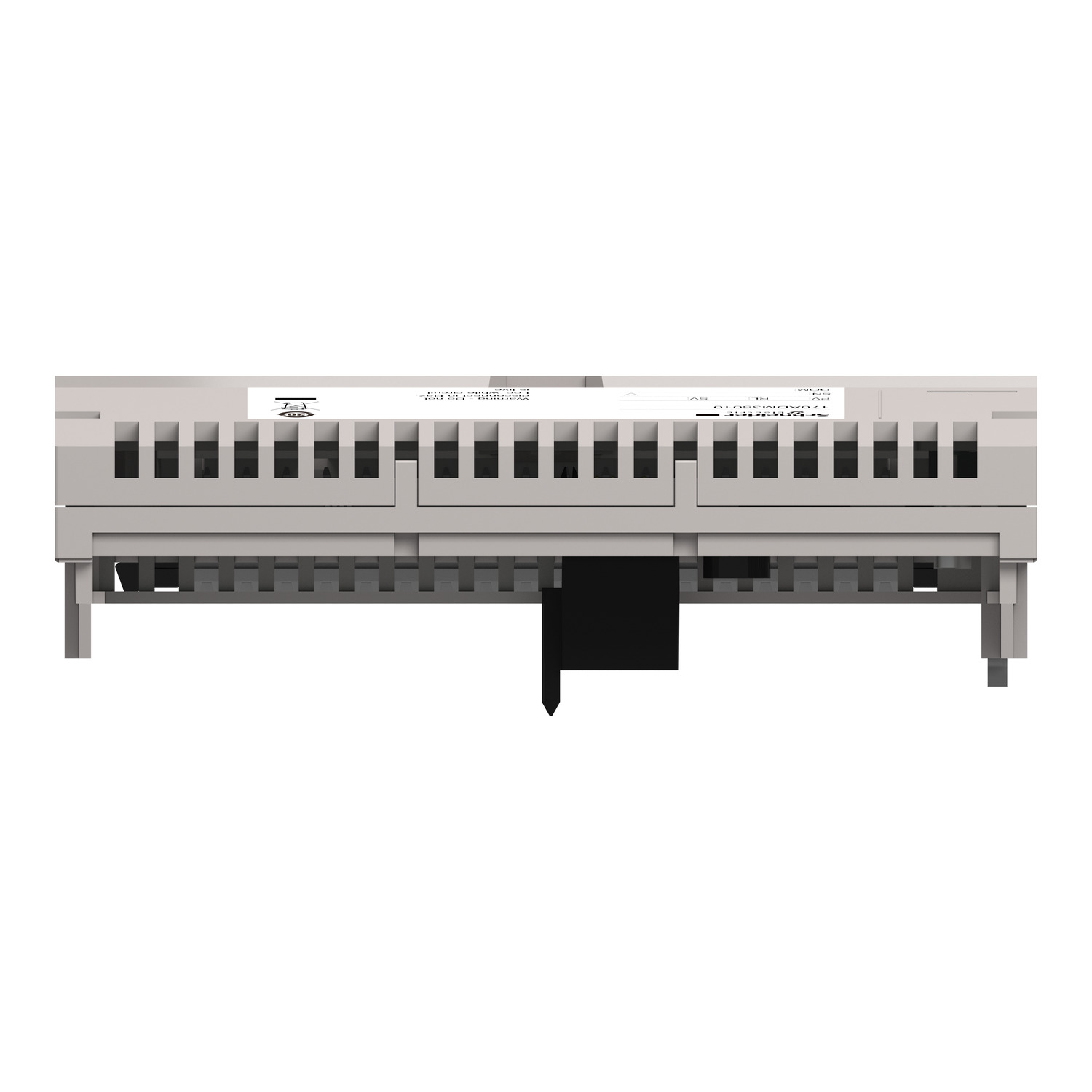

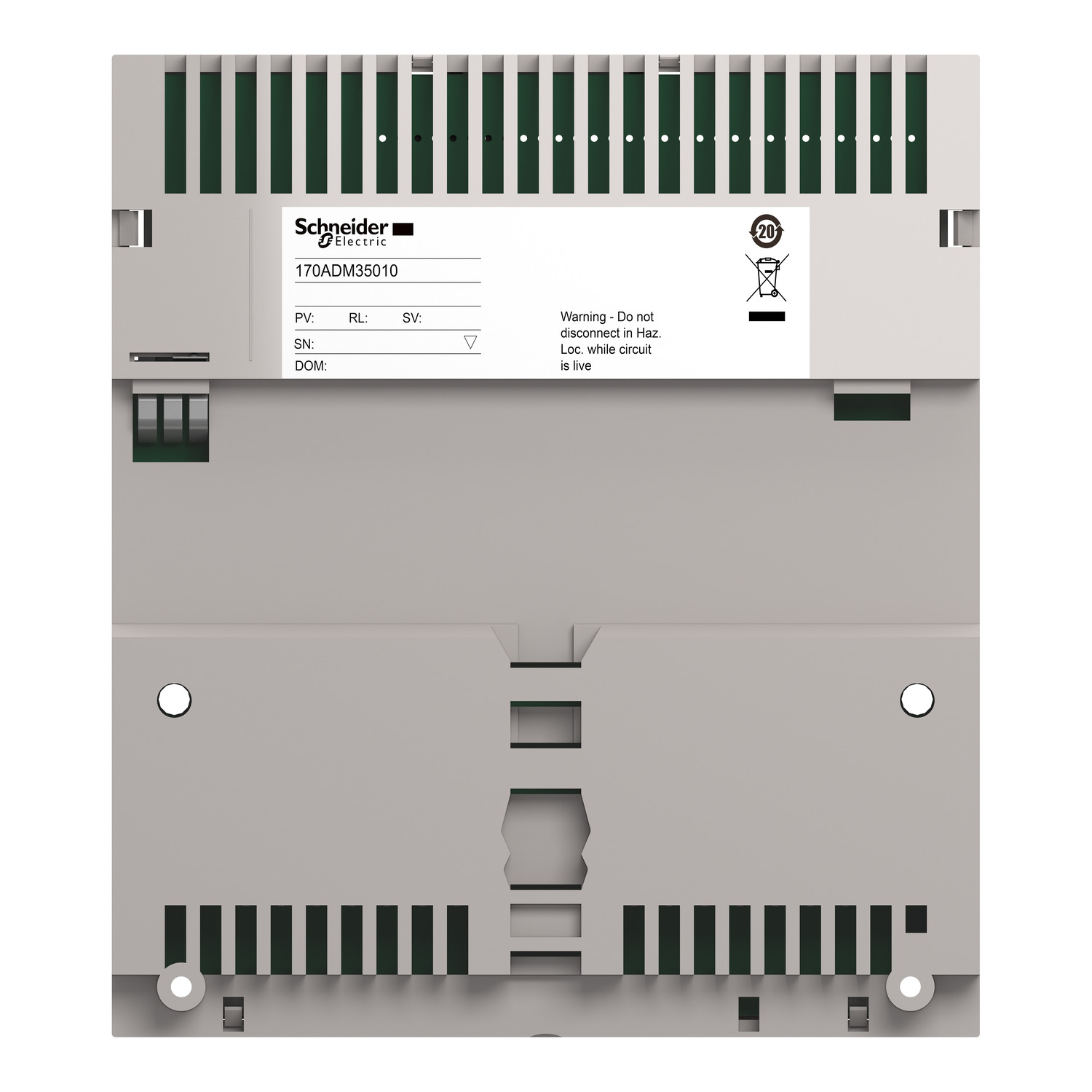

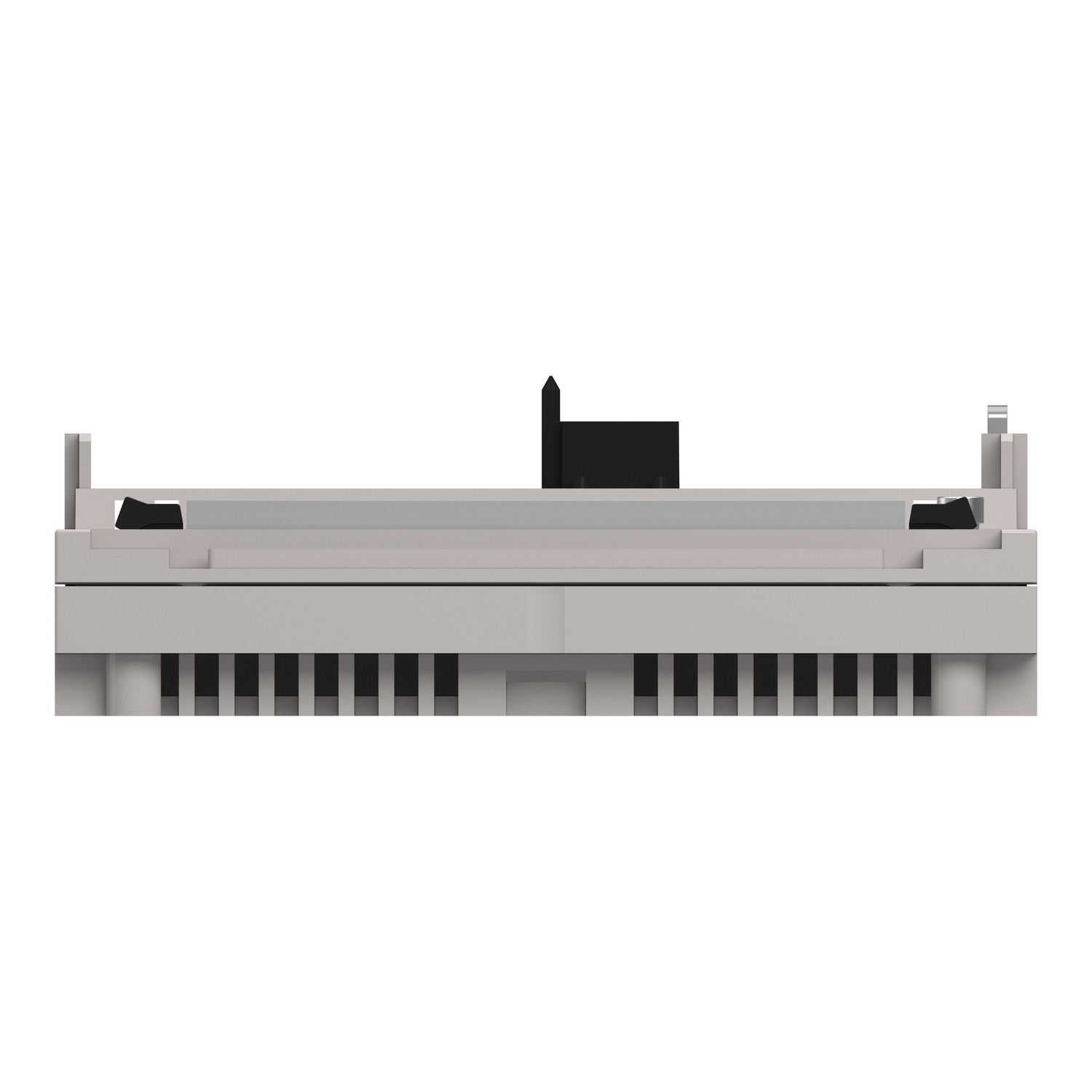

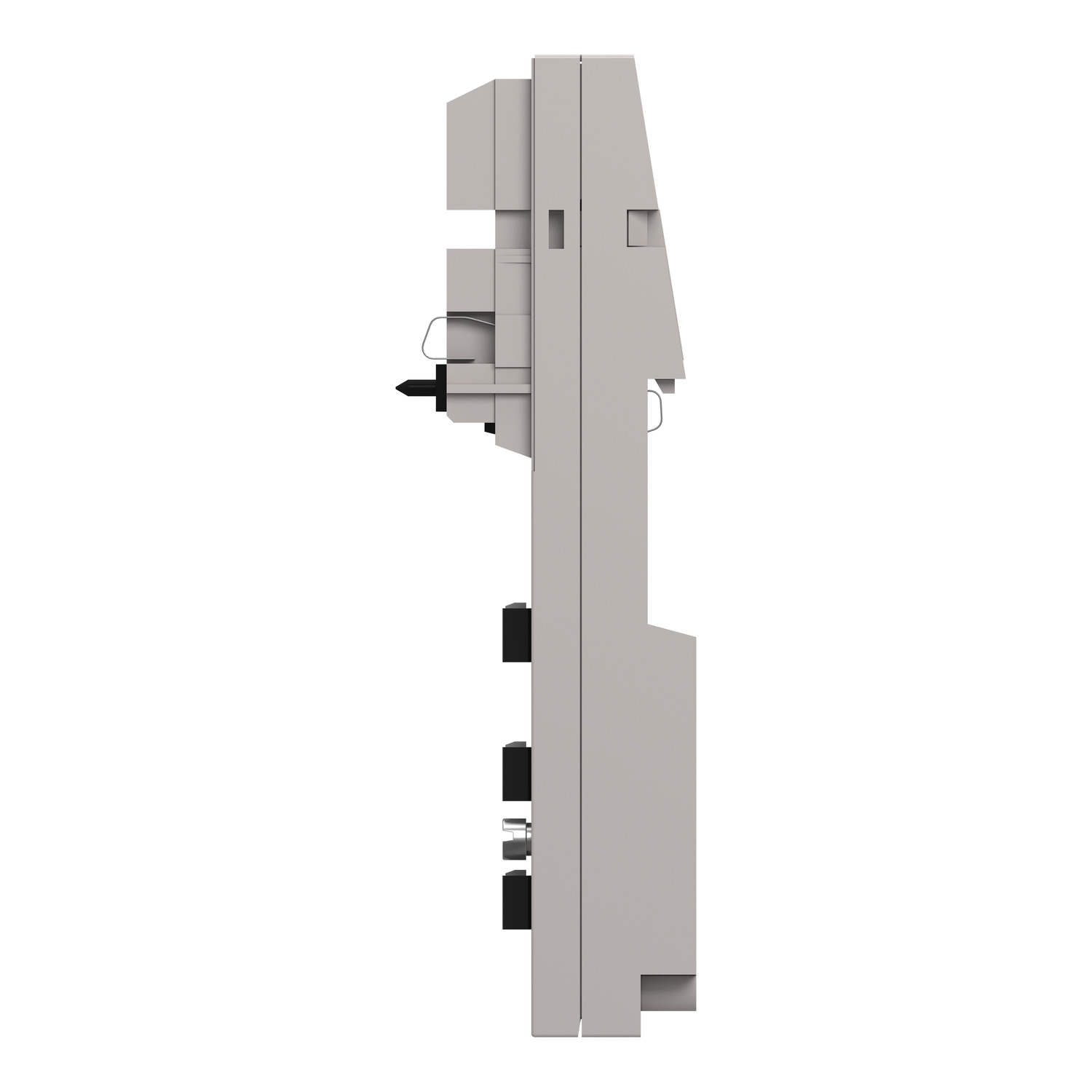

Modul I/O Discret Modicon Momentum - 16 Int. 24 V C.C. - 16 Ies. Cu Semicond.
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Input current at signal 1 | 10 mA |
| Output current | 0.5 A |
| Voltage type (supply voltage) | AC/DC |
| Permitted voltage at output | 20 V |
| Permitted voltage at input | -3 V |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Type of voltage (input voltage) | AC/DC |
| Type of output voltage | AC/DC |
| Supply voltage DC | 24 V |
| Connection | |
| Type of electric connection | Other |
| Short-circuit protection, outputs available | Yes |
| Number of digital outputs | 16 |
| Number of digital inputs | 16 |
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Options | |
| Digital inputs configurable | No |
| Digital outputs configurable | No |
| Model/type | |
| Type of digital output | Transistor |
| Other | |
| Appendant operation agent (Ex ia) | No |
| Time delay at signal change | 3.3 ms |
| Appendant operation agent (Ex ib) | No |
| Performance | |
| Performance level according to EN ISO 13849-1 | None |
| Measurements | |
| Height | 141.5 mm |
| Width | 125 mm |
| Depth | 40 mm |
| Application | |
| Suitable for safety functions | No |
| Protection | |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Package 1 | |
| volume | 2791,88 cm3 |
| weight | 406 g |
| length | 26 cm |
| width | 18,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3595861000261 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 4,407 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 13595861000268 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 46 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 80 |
| qmin | 80 |
| um | PF |
