Descriere

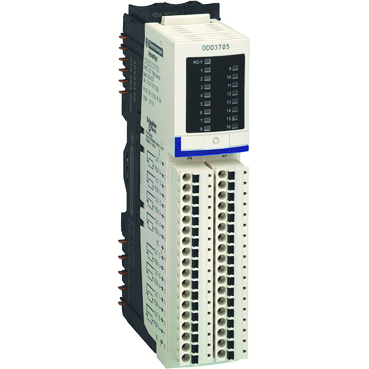

Kit Iesiri Digitale Stb - 24 V Dc - 16 O
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Communication | |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces parallel | 0 |
| Supporting protocol for SERCOS | No |
| Number of HW-interfaces other | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| With optical interface | No |
| Number of HW-interfaces wireless | 0 |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | Yes |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | Yes |
| Supporting protocol for TCP/IP | Yes |
| Supporting protocol for KNX | No |
| Supporting protocol for CAN | Yes |
| Supporting protocol for INTERBUS | Yes |
| Supporting protocol for DeviceNet | Yes |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for LON | No |
| Supporting protocol for other bus systems | No |
| Supporting protocol for SUCONET | No |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Options | |
| Digital inputs configurable | No |
| System accessory | Yes |
| Digital outputs configurable | Yes |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Mobile communications standard 3G (UMTS) | No |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| IO link master | No |
| Rack-assembly possible | Yes |
| Electrical | |
| Permitted voltage at output | 24 V |
| Permitted voltage at input | 19.2 V |
| Type of voltage (input voltage) | DC |
| Input current at signal 1 | 0.4 mA |
| Output current | 0.5 A |
| Voltage type (supply voltage) | DC |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Type of output voltage | DC |
| Supply voltage DC | 24 V |
| Performance | |
| Performance level according to EN ISO 13849-1 | None |
| Connection | |
| Fieldbus connection over separate bus coupler possible | Yes |
| Type of electric connection | Screw connection |
| Short-circuit protection, outputs available | Yes |
| Number of digital outputs | 16 |
| Number of digital inputs | 0 |
| Measurements | |
| Height | 13.9 mm |
| Width | 128.3 mm |
| Depth | 70 mm |
| Other | |
| Time delay at signal change | 2 ms |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Protection | |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Degree of protection (IP) | IP20 |
| Model/type | |
| Type of digital output | Other |
| Mounting/installation | |
| Front built-in possible | No |
| Suitable for rail mounting | No |
| Wall mounting/direct mounting | No |
| Application | |
| Suitable for safety functions | No |
| Package 1 | |
| volume | 375,689211768 cm3 |
| weight | 210 g |
| length | 13,052 cm |
| width | 7,947 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3595863932638 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 4,77 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 13595863932635 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 86 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 320 |
| qmin | 320 |
| um | PF |
