Descriere

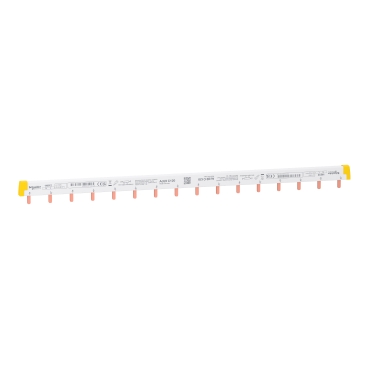

Acti9, Bare Colectoare Tip Pieptene, 1L+N, 27mm Pitch, 24 Module, 125A
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Measurements | |
| Length | 432 mm |
| Cross section | 16 mm² |
| Width in number of modular spacings | 24 |
| Module width | 27 mm |
| Colour | |
| Colour | White |
| Options | |
| Insulated | Yes |
| Electrical | |
| Number of phases | 1 |
| Rated surge voltage | - |
| Rated permanent current Iu | 125 A |
| Conditioned rated short-circuit current Iq | - |
| Number of poles | 2 |
| Max. rated operation voltage Ue | 500 V |
| Rated short-time withstand current lcw | - |
| Connection | |
| Type of electric connection | Pin |
| Application | |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | Yes |
| Suitable for number of devices | 8 |
| Package 1 | |
| volume | 299,2 cm3 |
| weight | 167 g |
| length | 44 cm |
| width | 4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430148128 |
| Package 2 | |
| volume | 10300 cm3 |
| weight | 3,75 kg |
| length | 103 cm |
| width | 10 cm |
| qmax | 20 |
| qmin | 20 |
| um | BX |
| gtin | 23303430148122 |
| Package 3 | |
| volume | 432000 cm3 |
| weight | 67,3 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 280 |
| qmin | 280 |
| um | PF |
