Descriere

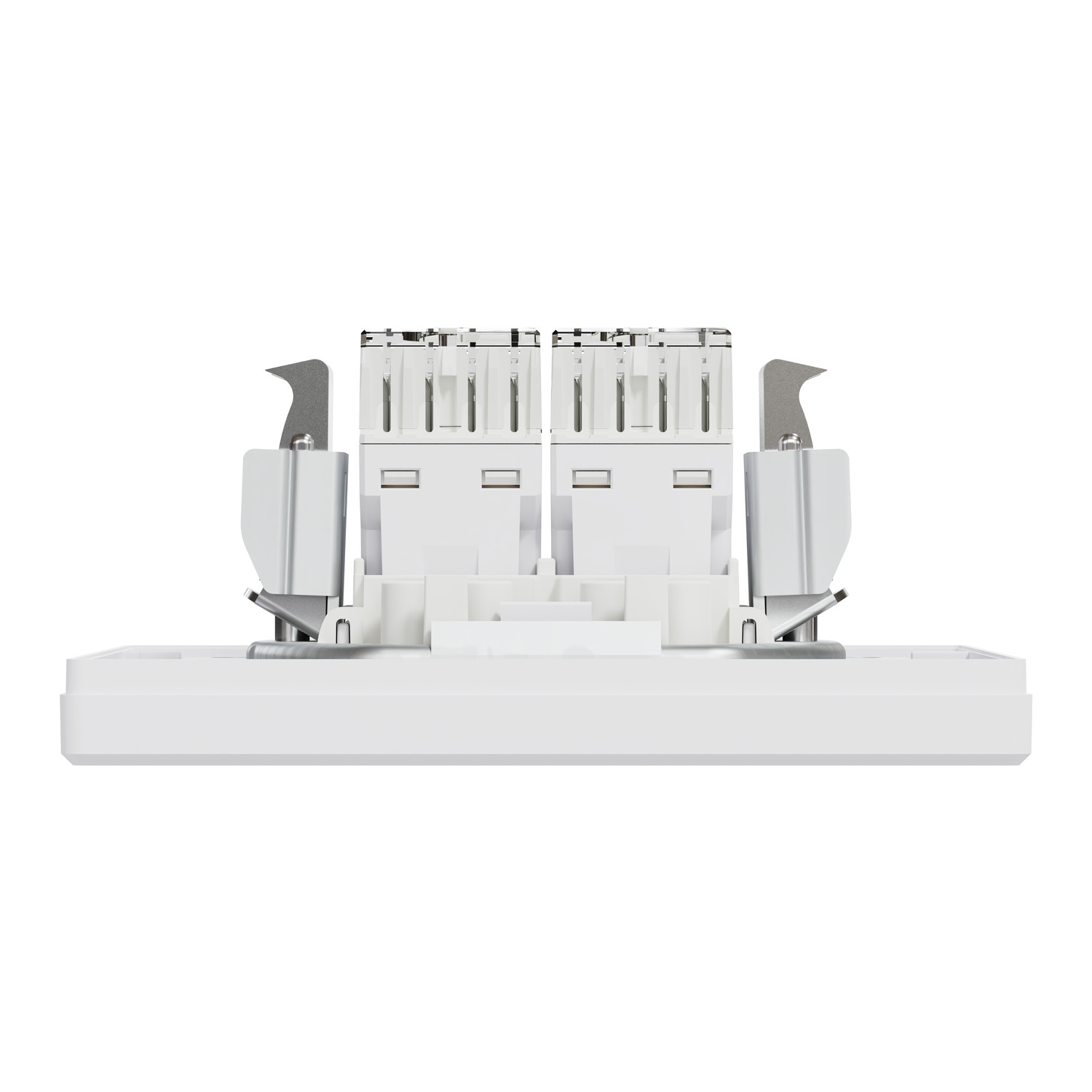

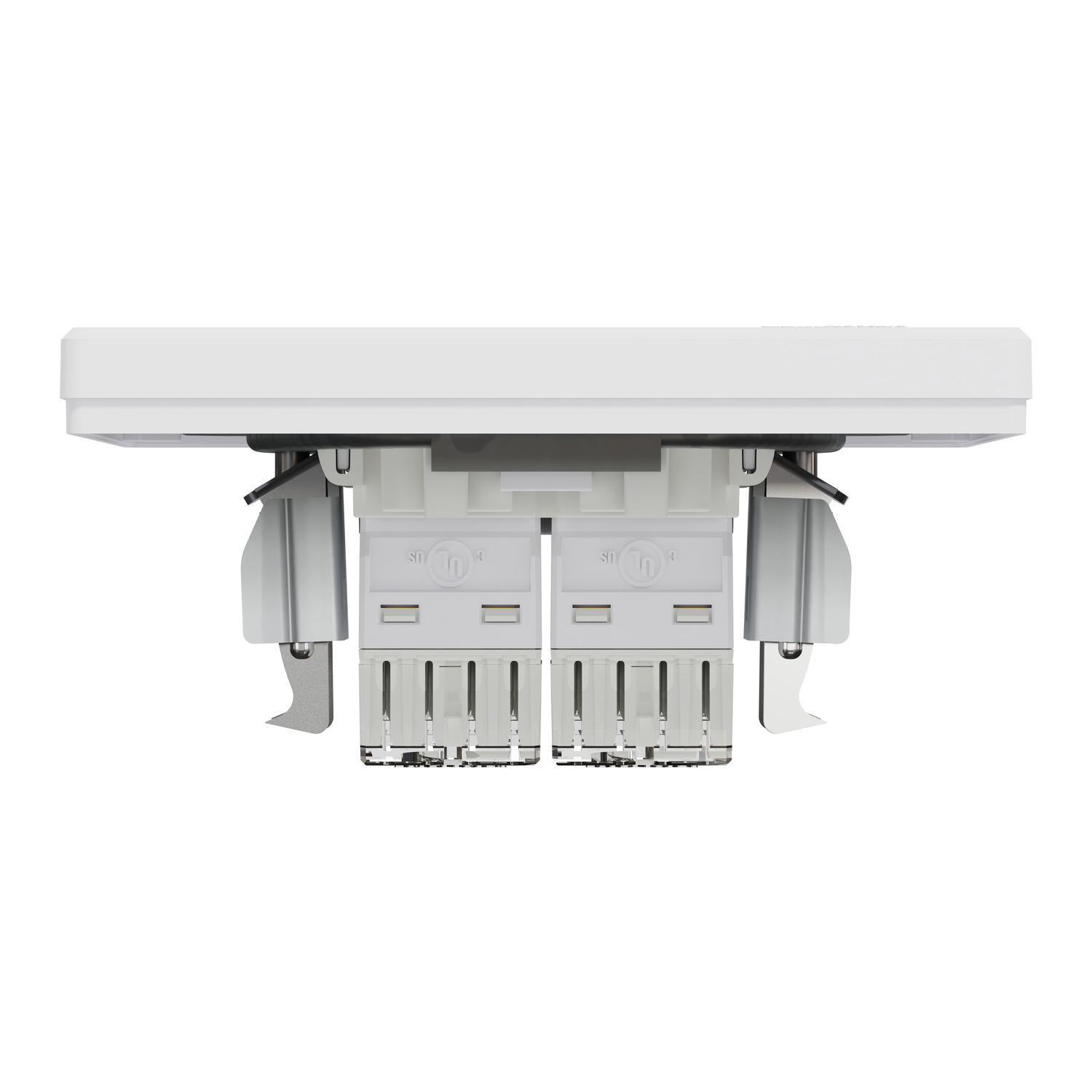

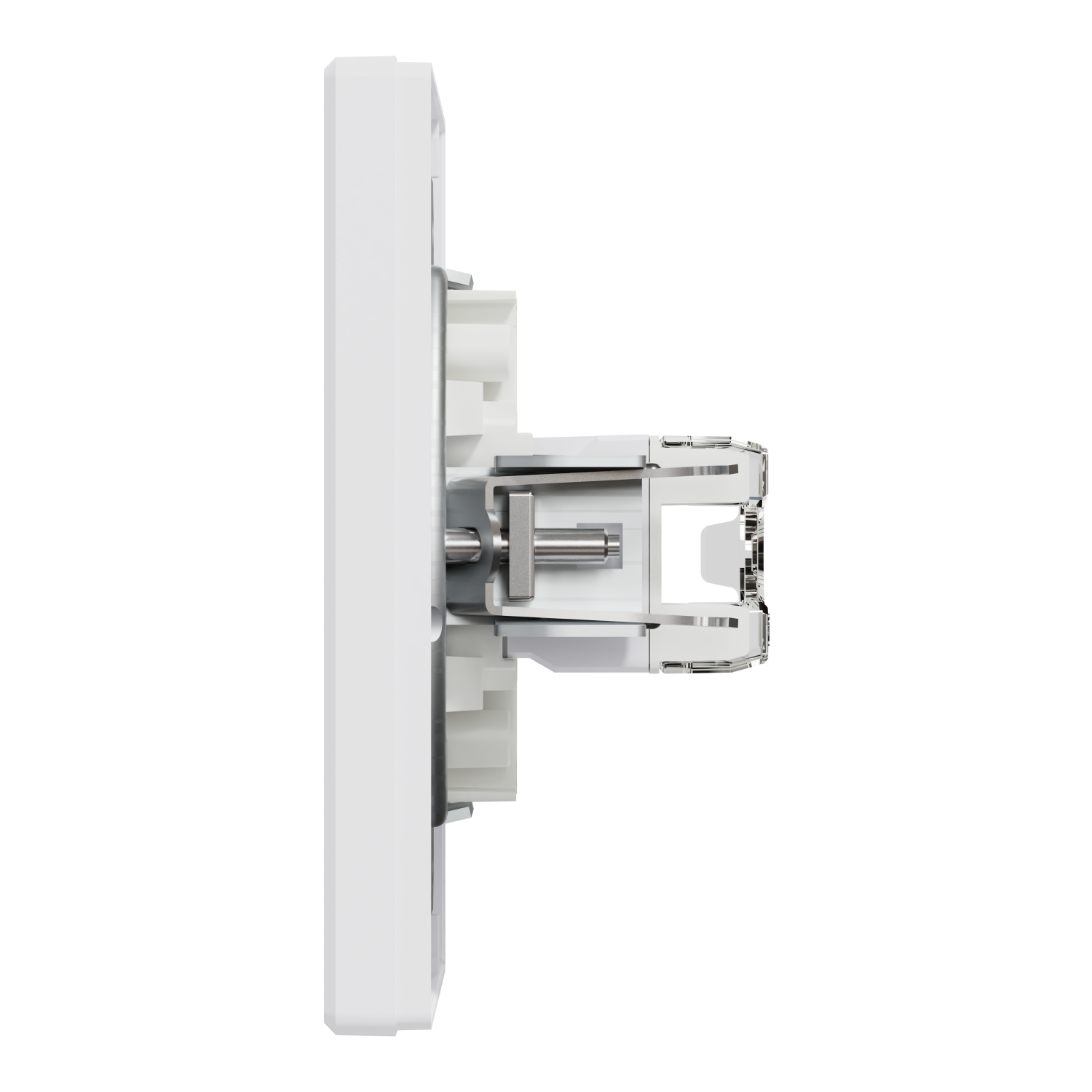

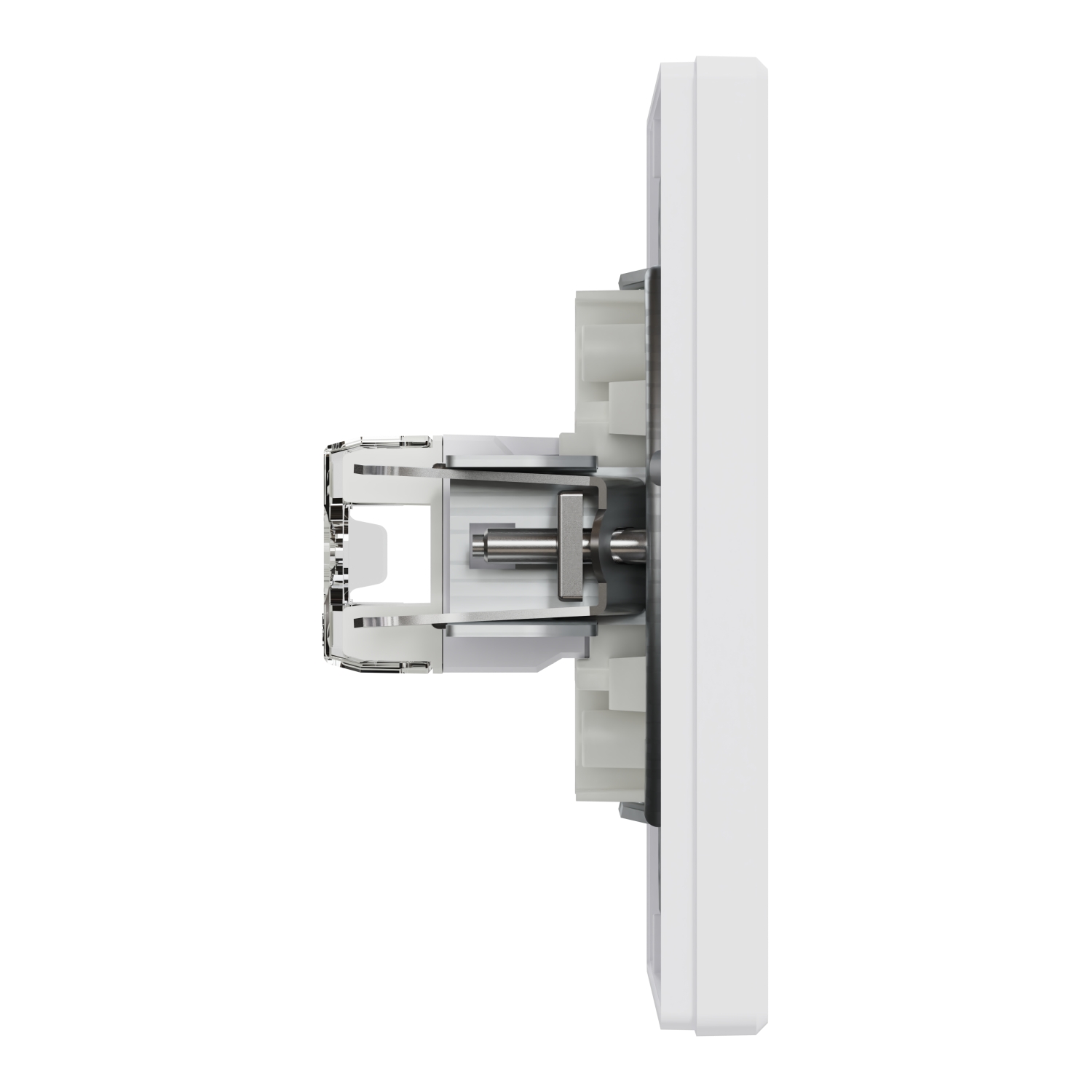

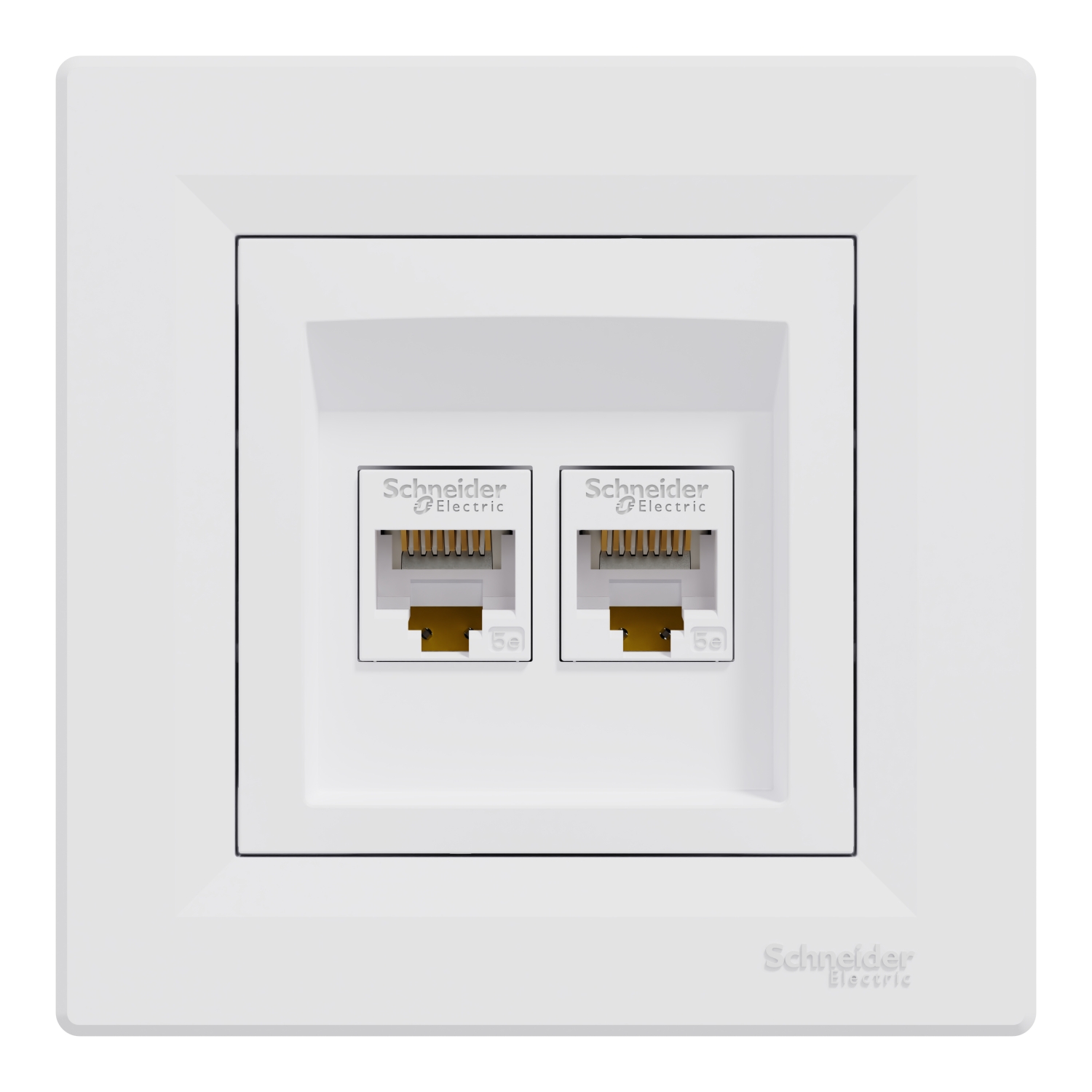

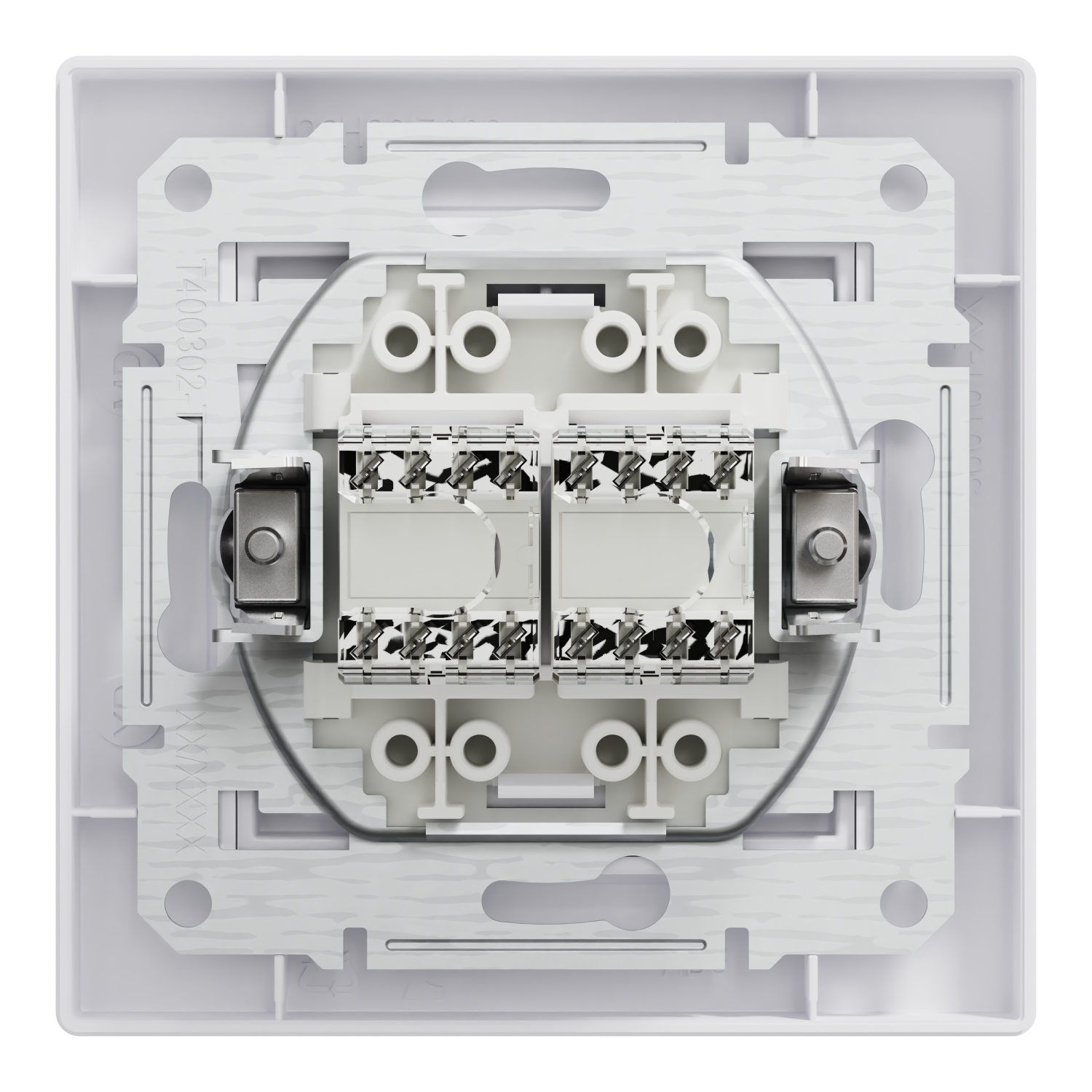

Asfora, 2xPriza de date RJ45 cat.5e UTP alb
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| Type of connector | RJ45 8(8) |
| Connection type | Insulation displacement connector |
| Separate earthing connection | - |
| Suitable for number of connectors | 2 |
| Model/type | |
| Mounting method shielding connection | Other |
| Number of modules (module system) | - |
| With terminal resistor | - |
| With label space | - |
| With dust cover | - |
| Assembly arrangement | Basic element |
| With buses/couplings | - |
| Measurements | |
| Device depth | 48 mm |
| Device width | 83 mm |
| Device height | 83 mm |
| Options | |
| Mechanical coding | - |
| Shielded buses | No |
| Shielded housing | - |
| Compatible with third-party covers | - |
| Separate strain relief | - |
| Colour | |
| RAL-number | - |
| Colour | White |
| Colour coding | - |
| Protection | |
| Degree of protection (IP) | IP20 |
| Mounting/installation | |
| Duct installation | - |
| Type of fastening | Other |
| Floor box/subfloor mounted | - |
| Flush-mounted installation | - |
| Surface mounting | No |
| Other | |
| Category | 5E |
| Outlet direction | - |
| Package 1 | |
| volume | 256 cm3 |
| weight | 74 g |
| length | 8 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480526992 |
| Package 2 | |
| volume | 4833,125 cm3 |
| weight | 813 g |
| length | 27,5 cm |
| width | 18,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480526999 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 10,363 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 33606480526993 |
| Package 4 | |
| weight | 106,56 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 1440 |
| qmin | 1440 |
| um | PF |
