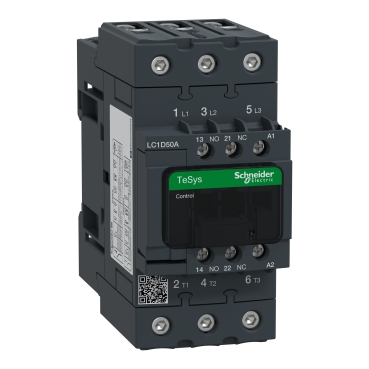

TeSys D contactor 3P 50A AC-3440V - aux 1NO+1NC - 48V 50Hz - EverLink
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 48 V |
| Rated control supply voltage AC 60 Hz | - |
| Rated operation power at AC-3, 400 V | 22 kW |
| Rated operation power NEMA | 29.8 kW |
| Rated operation current Ie at AC-1, 400 V | 80 A |
| Rated operation current Ie at AC-4, 400 V | 50 A |
| Rated operation current Ie at AC-3, 400 V | 50 A |
| Rated control supply voltage DC | - |
| Voltage type for actuating | AC |
| Rated operation power at AC-4, 400 V | 22 kW |
| Options | |
| Suitable for distribution board | Yes |
| Package 1 | |
| volume | 1215 cm3 |
| weight | 905 g |
| length | 15 cm |
| width | 13,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489602680 |
| Package 2 | |
| volume | 9000 cm3 |
| weight | 3,821 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 4 |
| qmin | 4 |
| um | CT |
| gtin | 43606489602688 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 130,241 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 128 |
| qmin | 128 |
| um | PF |
