Descriere

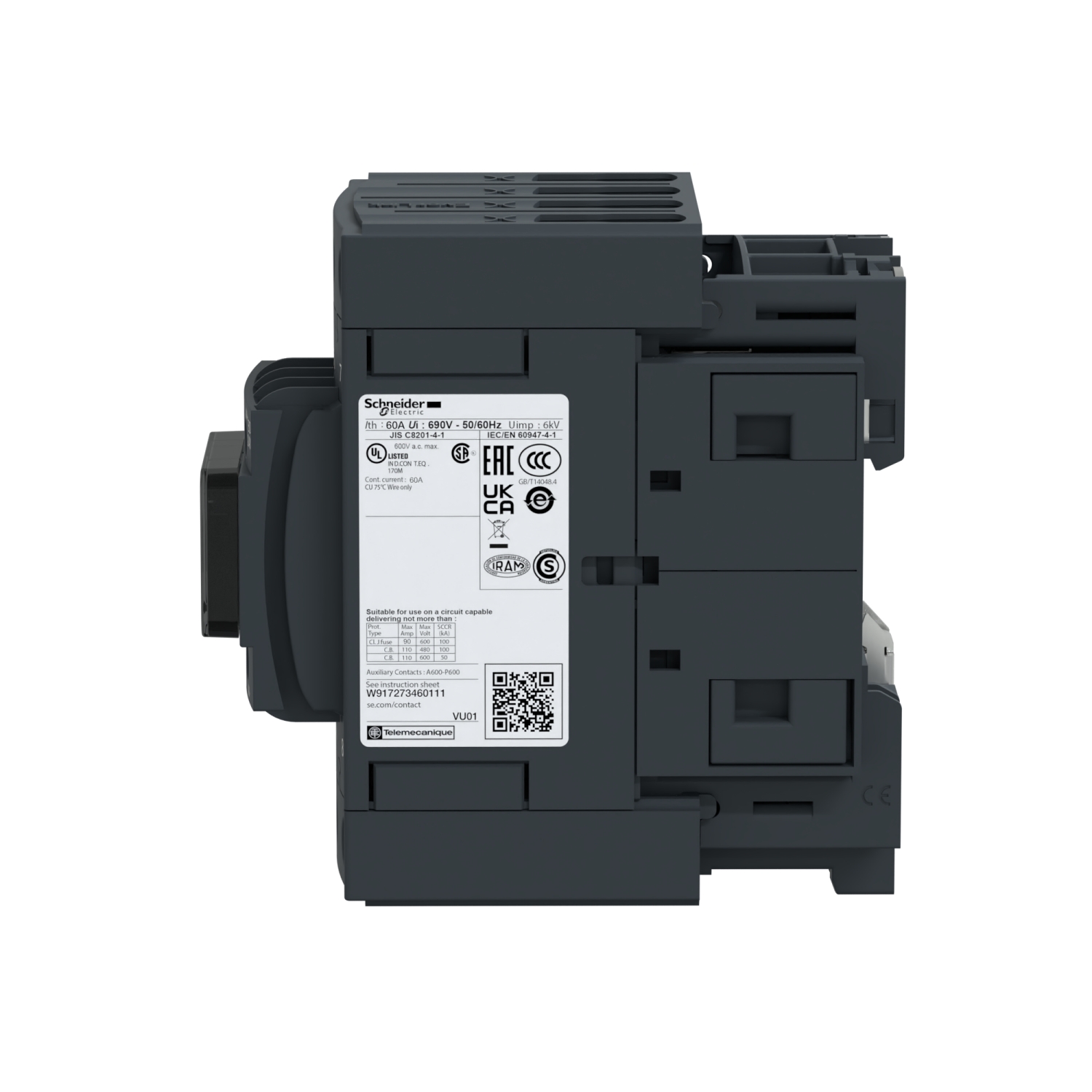

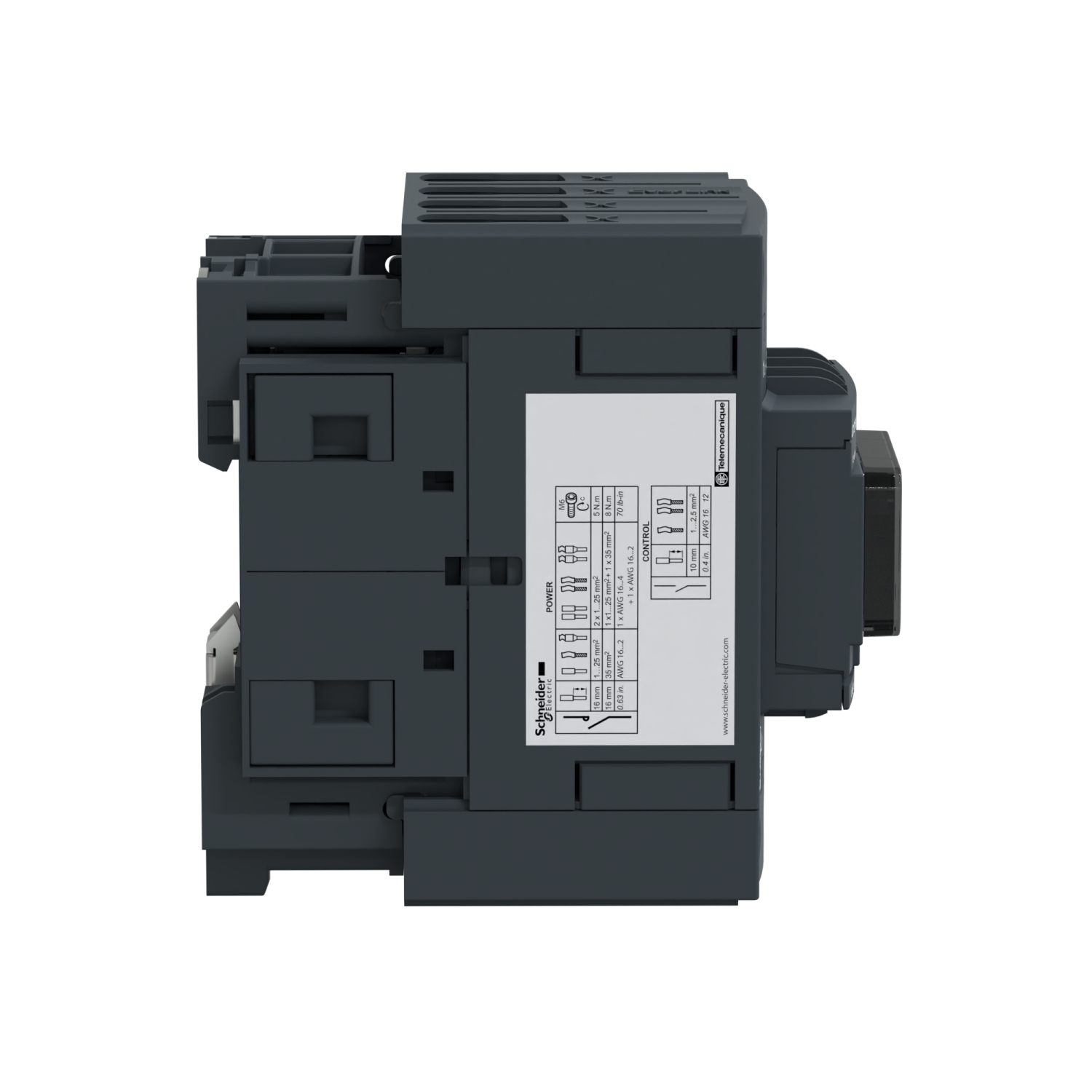

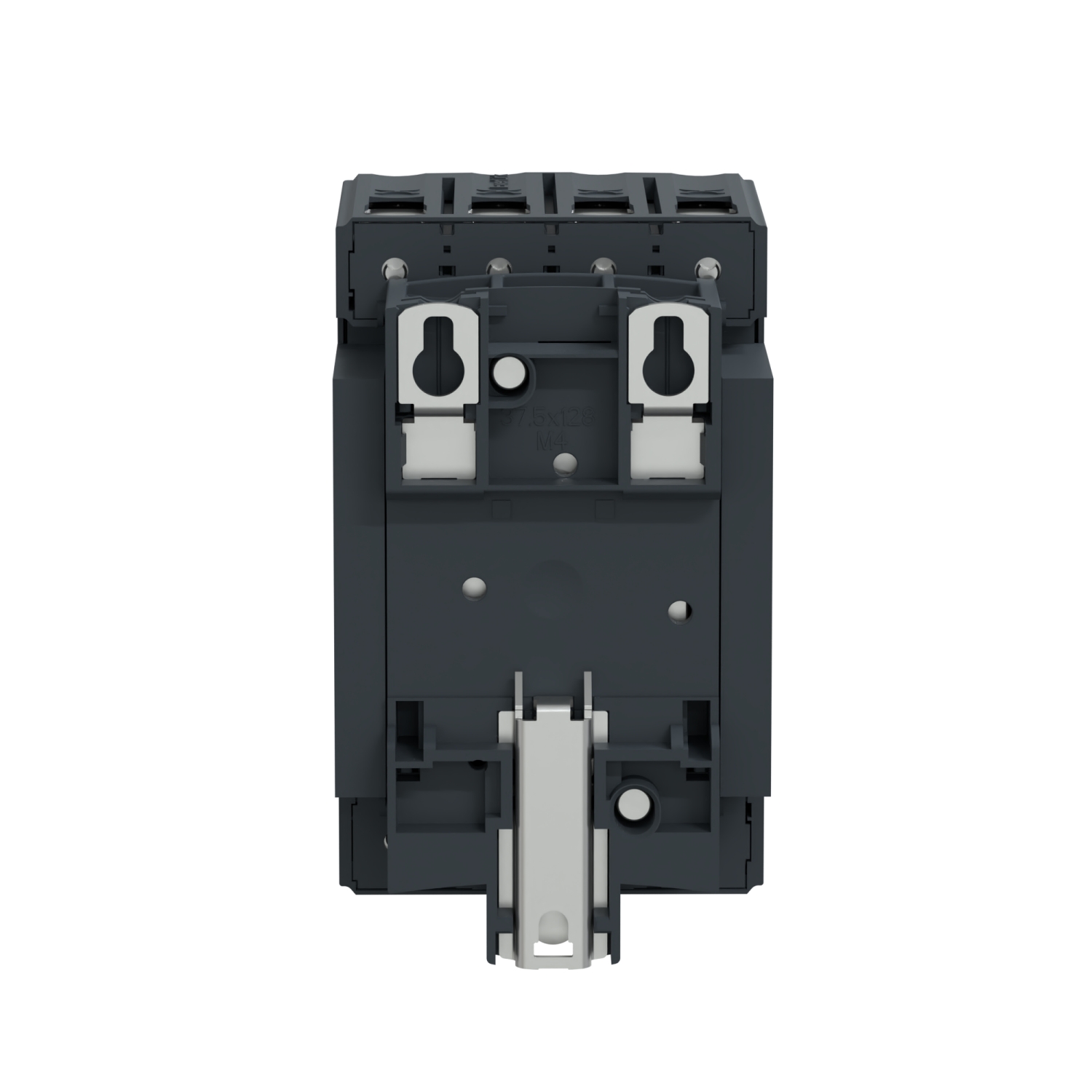

Contactor, TeSys Deca, 4P(4 NO), AC-1, <=440V, 60A, 120VAC 60Hz coil, screw clamp terminal
Documente
Fisa tehnica
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 4 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | 120 V |
| Rated operation power at AC-3, 400 V | - |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 60 A |
| Rated operation current Ie at AC-3, 400 V | - |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V | - |
| Rated control supply voltage DC | - |
| Rated operation power at AC-4, 400 V | - |
| Options | |
| Suitable for distribution board | Yes |
| Package 1 | |
| volume | 1701,36 cm3 |
| weight | 1,062 kg |
| length | 15,3 cm |
| width | 13,9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119409285 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 8,134 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 7 |
| qmin | 7 |
| um | CT |
| gtin | 43389119409283 |
| Package 3 | |
| volume | 369600 cm3 |
| weight | 138,644 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 112 |
| qmin | 112 |
| um | PF |
