Descriere

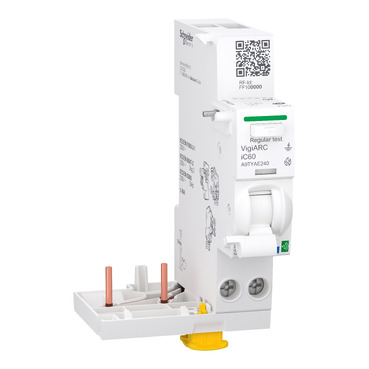

Acti9 Active Vigi ARC, Bloc auxiliar detectie arc electric si protectie diferentiala, cu Powertag, 40A, 30mA tip A-SI, pentru iC60 2P
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Nominal voltage | 230 V |
| Rated insulation voltage Ui | 250 V |
| Nominal current | 40 A |
| Surge current capacity | 3 kA |
| Rated fault current | 0.03 A |
| Number of poles | 2 |
| Rated impulse withstand voltage Uimp | 4 kV |
| Leakage current type | A |
| Other | |
| Max. delay time | 0 ms |
| Frequency | 50 Hz |
| Pollution degree | 2 |
| Setting/control | |
| Delay adjustable | No |
| Rated fault current adjustable | No |
| Connection | |
| Connectable conductor cross section solid-core | 1 mm² |
| Connectable conductor cross section multi-wired | 1 mm² |
| Operating conditions | |
| Ambient temperature during operating | -25 °C |
| Model/type | |
| With interlocking device | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Options | |
| Anti-nuisance tripping version | Yes |
| Package 1 | |
| volume | 578,592 cm3 |
| weight | 132 g |
| length | 11,2 cm |
| width | 8,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481906113 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 2,548 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 17 |
| qmin | 17 |
| um | CT |
| gtin | 43606481906111 |
