Descriere

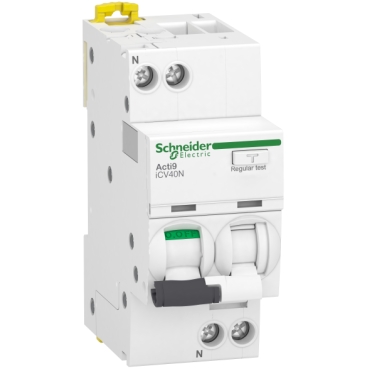

Acest produs Acti9 iCV40 este un intreruptor automat cu protectie diferentiala (RCBO). Este un RCBO 1P+N cu 1 pol protejat, curent nominal In de 20 A si curba de declansare C. Protectia diferentiala este de tip AC, cu o sensibilitate de 30 mA. Temporizarea protectiei pentru scurgeri la pamant este instantanee. Capacitatea nominala de rupere la scurtcircuit Icn este de pana la 6000 A in conformitate cu standardul SR EN 61009-2-1. Acest produs protejeaza la scurtcircuit, suprasarcina, impotriva electrocutarii si impotriva incendiilor. Cei 2 indicatori unici Visitrip reduc timpul de interventie prin indicarea circuitului defect si identificarea rapida a tipului de defect. Banda sa verde VisiSafe garanteaza deschiderea fizica a contactelor pentru a permite interventia in aval. Acest produs este in conformitate cu standardul SR EN 61009-2-1. Are o anduranta electrica de pana la 20000 de cicluri si o anduranta mecanica de pana la 20000 de cicluri. Tensiunea operationala nominala Ue este de pana la 230 V c.a. Tensiunea de izolare nominala Ui este de 400 V c.a.. Tensiunea nominala de rezistenta la impuls Uimp este de 4 kV. Frecventa este de 50/60 Hz. Se monteaza pe sina DIN. Latimea in module de 9 mm este de 4. Culoarea produsului este alb (RAL9003). Dimensiunile sunt (L) 36mm x (I) 85mm x (a) 73mm. Greutatea este de 210g. Are un grad de protectie IP20 (conform standardului SR EN 60529) si devine IP40 la instalarea in cofret modular. Temperatura de functionare este de la -5°C la 60°C. Temperatura de depozitare este de la -40°C la 85°C.
Documente
Specificatii
| Measurements | |
| Built-in depth | 44 mm |
| Width in number of modular spacings | 2 |
| Electrical | |
| Rated insulation voltage Ui | 400 V |
| Rated fault current | 0.03 A |
| Rated short-circuit breaking capacity according to IEC 60947-2 | - |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 | 6 kA |
| Rated impulse withstand voltage Uimp | 4 kV |
| Leakage current type | AC |
| Rated current | 20 A |
| Rated voltage | 230 V |
| Release characteristic | C |
| Voltage type | AC |
| Surge current capacity | 0.25 kA |
| Overvoltage category | 3 |
| Current limiting class | 3 |
| Rated short-circuit breaking capacity according to EN 61009 | 6 kA |
| Model/type | |
| Number of poles (total) | 2 |
| Number of protected poles | 1 |
| With interlocking device | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Options | |
| Anti-nuisance tripping version | No |
| Concurrently switching neutral conductor | Yes |
| Mounting/installation | |
| Flush-mounted installation | No |
| Other | |
| Frequency | 50/60 Hz |
| Pollution degree | 3 |
| Connection | |
| Connectable conductor cross section solid-core | 1 mm² |
| Connectable conductor cross section multi-wired | 1 mm² |
| Disconnection characteristic | Undelayed |
| Operating conditions | |
| Ambient temperature during operating | -5 °C |
| Package 1 | |
| volume | 320 cm3 |
| weight | 210 g |
| length | 10 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489444242 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 11,734 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 54 |
| qmin | 54 |
| um | CT |
| gtin | 43606489444240 |
| Package 3 | |
| volume | 432000 cm3 |
| weight | 105,872 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 432 |
| qmin | 432 |
| um | PF |
