Descriere

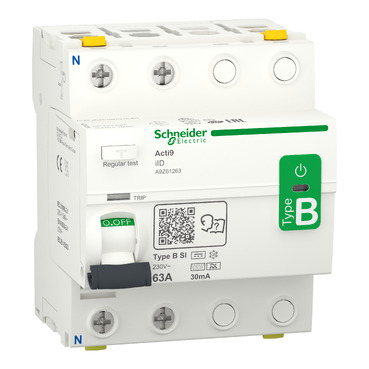

Acti9 iID, Intreruptor Diferential, 2P, 63A, 30mA, Tip B-SI
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Rated current | 63 A |
| Rated voltage | 230 V |
| Voltage type | AC |
| Short-circuit breaking capacity (Icw) | - |
| Rated insulation voltage Ui | 250 V |
| Surge current capacity | 3 kA |
| Rated fault current | 0.03 A |
| Number of poles | 2 |
| Rated impulse withstand voltage Uimp | 6 kV |
| Leakage current type | B |
| Model/type | |
| Short-time delayed tripping | No |
| With interlocking device | No |
| Measurements | |
| Built-in depth | 44 mm |
| Width in number of modular spacings | 4 |
| Protection | |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Selective protection | No |
| Other | |
| Frequency | 50 Hz |
| Pollution degree | 3 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Connection | |
| Connectable conductor cross section solid-core | 1 mm² |
| Connectable conductor cross section multi-wired | 1 mm² |
| Operating conditions | |
| Ambient temperature during operating | -25 °C |
| Options | |
| Additional equipment possible | Yes |
| Package 1 | |
| volume | 624,75 cm3 |
| weight | 362 g |
| length | 9,8 cm |
| width | 7,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489502768 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 10,254 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 27 |
| qmin | 27 |
| um | CT |
| gtin | 43606489502766 |
