Descriere

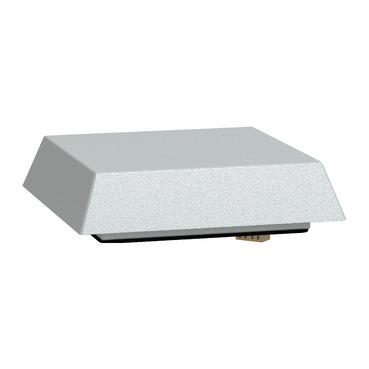

Hota superioara ClimaSys de 85 W cu ventilator de 228 x 228 mm cu filtru G2 asigura un control eficient al temperaturii in interiorul carcaselor Prisma P, Prisma PH, Prisma iPM M Ventilatorul are un debit de aer liber de 575 m³/h la 50 Hz si 350 m³/h cu decupaj pentru grila de evacuare de 291 x 291 mm Latimea externa este de 340 mm, inaltimea de 96 mm si adancimea de 340 mm Accesoriul este format dintr-o hota pentru partea superioara a carcasei, un ventilator si elemente de fixare Culoarea hotei este gri (RAL 7035). Gradul de protectie la patrundere este IP54 Tensiunea de intrare este de 230 V 50/60 Hz Nivelul de zgomot este de 64-64 dB Protectie IP54.
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Application | |
| Suitable for 19 inch rack mounting | No |
| Colour | |
| Colour | Grey |
| RAL-number | 7035 |
| Measurements | |
| Width | 340 mm |
| Depth | 340 mm |
| Height | 96 mm |
| Energy efficiency/environmental | |
| Noise emission | 64 dB(A) |
| Model/type | |
| Air circulator | Yes |
| With protective cover | No |
| Built as slide-in ventilator | Yes |
| EMC-version | No |
| With filter | No |
| Roof ventilator | Yes |
| Number of fans | 1 |
| Electrical | |
| Voltage type | AC |
| Operating voltage AC 50 Hz | 230 V |
| Operating voltage AC 60 Hz | 230 V |
| Operating voltage DC | - |
| Rated power | 85 W |
| Mounting/installation | |
| Mounting method | Screw mounting |
| Suitable for wall built-in | No |
| Protection | |
| Degree of protection (IP) | IP54 |
| Degree of protection (NEMA) | 13 |
| Performance | |
| Volume flow, freeblowing | 575 m³/h |
| Package 1 | |
| volume | 14700 cm3 |
| weight | 6,066 kg |
| length | 35 cm |
| width | 35 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480151392 |
| Package 2 | |
| volume | 1297800 cm3 |
| weight | 377 kg |
| length | 105 cm |
| width | 120 cm |
| qmax | 60 |
| qmin | 60 |
| um | PF |
| gtin | 73606480151391 |
