Descriere

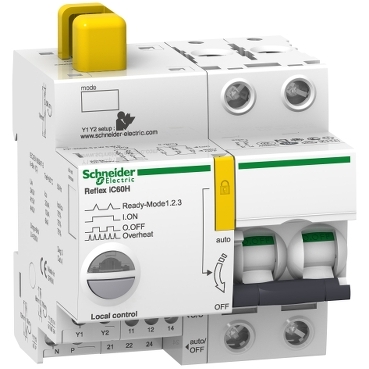

Reflex Ic60H Ti24 10 A 2P curba C Intreruptor Automat cu Comanda Integrata
Documente
Specificatii
| Electrical | |
| Rated current | 10 A |
| Rated voltage | 415 V |
| Release characteristic | C |
| Voltage type | AC |
| Overvoltage category | 4 |
| Current limiting class | 0 |
| Rated short-circuit breaking capacity according to IEC 60947-2 | 15 kA |
| Rated short-circuit breaking capacity according to EN 60898 | - |
| Number of poles | 2 |
| Rated switch current auxiliary device | 1 A |
| Rated voltage auxiliary device | 230 V |
| Control voltage type auxiliary equipment | AC |
| Measurements | |
| Built-in depth | 44.5 mm |
| Width in number of modular spacings | 4.5 |
| Construction size according to DIN 43880 | 3 |
| Other | |
| Frequency | 50 Hz |
| Pollution degree | 3 |
| Options | |
| Concurrently switching neutral conductor | No |
| Model/type | |
| Additional equipment attached at delivery | Remote drive |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 1633,5 cm3 |
| weight | 566,9 g |
| length | 16,5 cm |
| width | 11 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480455070 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 8,425 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 14 |
| qmin | 14 |
| um | CT |
| gtin | 43606480455078 |
