Descriere

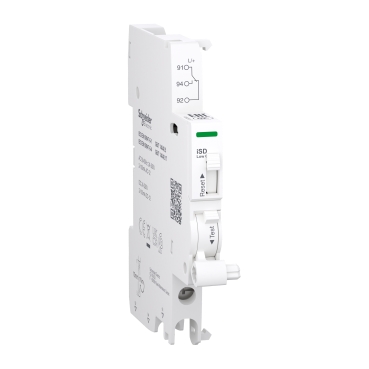

Acti9 A9A, Contact auxiliar low level, iSD, 1 C/O, 2mA-100mA, 24-250V C.A., 24-220V C.C., conexiune pe jos
Documente
Specificatii
| Electrical | |
| Rated voltage | 240 V |
| Rated switch current | 0.002 A |
| Suitable for max. number of poles main contact unit (total) | 4 |
| Suitable for max. current main contact unit | 63 A |
| Voltage type for actuating | AC/DC |
| Model/type | |
| With auto test for earth leakage function | No |
| Number of fault-signal switches | 1 |
| Additional equipment | Auxiliary switch |
| Measurements | |
| Width in number of modular spacings | 0.5 |
| Other | |
| Device fitting | Earth leakage circuit breaker and miniature circuit breaker (MCB) |
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Options | |
| Installed at the factory | No |
| Package 1 | |
| volume | 163,68 cm3 |
| weight | 40 g |
| length | 9,3 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606482129146 |
| Package 2 | |
| volume | 2295 cm3 |
| weight | 562 g |
| length | 27 cm |
| width | 10 cm |
| qmax | 12 |
| qmin | 12 |
| um | BX |
| gtin | 13606482129143 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 6,257 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 43606482129144 |
| Package 4 | |
| weight | 58,5 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 960 |
| qmin | 960 |
| um | PF |
