Descriere

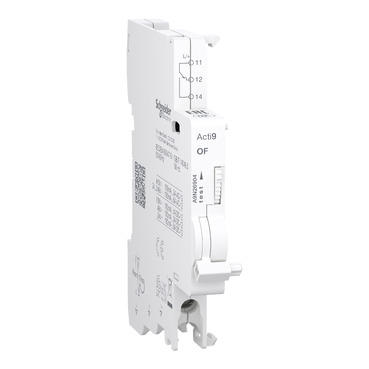

Acti9 A9N, Contact auxiliar, OF, 1 C/O, 100mA-6A, 24-415V C.A., 24-130V C.C., conexiune pe jos
Documente
Specificatii
| Electrical | |
| Rated voltage | 240 V |
| Rated switch current | 0.1 A |
| Suitable for max. number of poles main contact unit (total) | 4 |
| Suitable for max. current main contact unit | 63 A |
| Voltage type for actuating | AC/DC |
| Model/type | |
| With auto test for earth leakage function | No |
| Number of fault-signal switches | 0 |
| Additional equipment | Auxiliary switch |
| Measurements | |
| Width in number of modular spacings | 0.5 |
| Other | |
| Device fitting | Earth leakage circuit breaker and miniature circuit breaker (MCB) |
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Options | |
| Installed at the factory | No |
| Package 1 | |
| volume | 146,64 cm3 |
| weight | 38 g |
| length | 9,4 cm |
| width | 7,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606486351789 |
| Package 2 | |
| volume | 2261 cm3 |
| weight | 505 g |
| length | 26,6 cm |
| width | 10 cm |
| qmax | 12 |
| qmin | 12 |
| um | BX |
| gtin | 13606486351786 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 4,971 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 108 |
| qmin | 108 |
| um | CT |
| gtin | 23606486351783 |
| Package 4 | |
| weight | 49,8 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 864 |
| qmin | 864 |
| um | PF |
