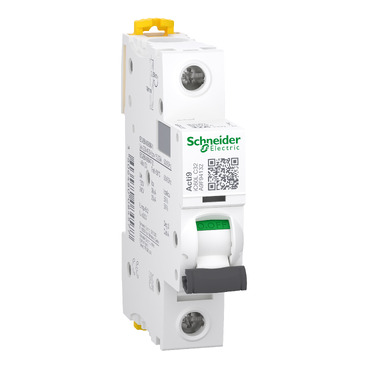

ACTI9 IC60L 1P 32A C

Cod produs: A9F94132

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606480084577

Acti9 Ic60L, Intreruptor Automat Miniatura, 1P, 32A, curba C

Measurements
Built-in depth	44.5 mm
Width in number of modular spacings	1
Other
Frequency	50 Hz
Pollution degree	3
Model/type
Number of poles (total)	1
Number of protected poles	1
Electrical
Rated insulation voltage Ui	500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	20 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	15 kA
Rated impulse withstand voltage Uimp	6 kV
Rated current	32 A
Rated voltage	230 V
Release characteristic	C
Voltage type	AC/DC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-
Overvoltage category	4
Current limiting class	3
Options
Additional equipment possible	Yes
Concurrently switching neutral conductor	No
Protection
Degree of protection (IP)	IP20
Explosion-proof	No
Mounting/installation
Flush-mounted installation	No
Connection
Connectable conductor cross section solid-core	1 mm²
Connectable conductor cross section multi-wired	1 mm²
Operating conditions
Ambient temperature during operating	-35 °C
Package 1
volume	128,25 cm3
weight	124 g
length	9,5 cm
width	1,8 cm
qmax	1
qmin	1
um	C62
gtin	3606480084577
Package 2
volume	1764 cm3
weight	1,555 kg
length	22,5 cm
width	9,8 cm
qmax	12
qmin	12
um	BX
gtin	13606480084574
Package 3
volume	36000 cm3
weight	17,7 kg
length	40 cm
width	30 cm
qmax	132
qmin	132
um	CT
gtin	43606480084575
