Descriere

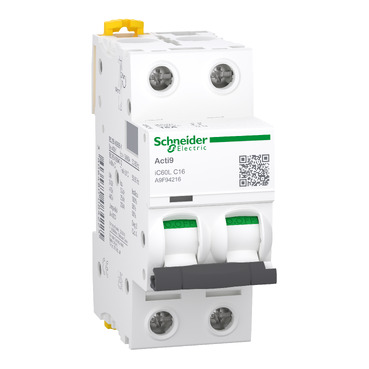

Acti9 Ic60L, Intreruptor Automat Miniatura, 2P, 16A, curba C
Documente
Specificatii
| Other | |
| Frequency | 50 Hz |
| Pollution degree | 3 |
| Measurements | |
| Built-in depth | 44.5 mm |
| Width in number of modular spacings | 2 |
| Model/type | |
| Number of poles (total) | 2 |
| Number of protected poles | 2 |
| Electrical | |
| Rated insulation voltage Ui | 500 V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 15 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 50 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 15 kA |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated current | 16 A |
| Rated voltage | 400 V |
| Release characteristic | C |
| Voltage type | AC/DC |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 25 kA |
| Overvoltage category | 4 |
| Current limiting class | 3 |
| Options | |
| Additional equipment possible | Yes |
| Concurrently switching neutral conductor | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Explosion-proof | No |
| Mounting/installation | |
| Flush-mounted installation | No |
| Connection | |
| Connectable conductor cross section solid-core | 1 mm² |
| Connectable conductor cross section multi-wired | 1 mm² |
| Operating conditions | |
| Ambient temperature during operating | -35 °C |
| Package 1 | |
| volume | 263,625 cm3 |
| weight | 223 g |
| length | 9,5 cm |
| width | 3,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480084225 |
| Package 2 | |
| volume | 1800 cm3 |
| weight | 1,384 kg |
| length | 22,5 cm |
| width | 10 cm |
| qmax | 6 |
| qmin | 6 |
| um | BX |
| gtin | 13606480084222 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 15,8 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 66 |
| qmin | 66 |
| um | CT |
| gtin | 43606480084223 |
