Descriere

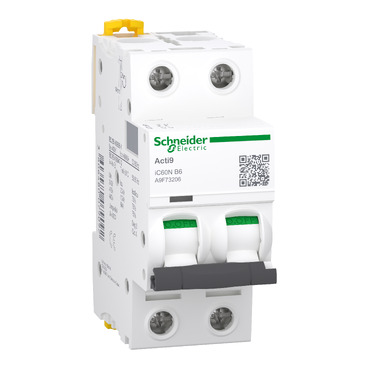

Acest Acti9 iC60N este un intreruptor automat de joasa tensiune (MCB). Este un disjunctor 2P cu 2 poli protejati, curent nominal In 6A si curba de declansare B. Capacitatea nominala de rupere la scurtcircuit este de pana la 20 kA pentru tensiune de la 220 V c.a. la 240 V c.a. in conformitate cu standardul EN / IEC 60947-2 si 6000 A la 400 V c.a. in conformitate cu standardul EN / IEC 60898-1. Este compatibil atat cu standardul rezidential EN/IEC 60898-1, cat si cu standardul industrial EN/IEC 60947-2. Acest disjunctor protejeaza circuitele la scurtcircuit si suprasarcina. Indicatorul VisiTrip reduce timpul de interventie, semnalizand declansarea la defect. Banda sa verde VisiSafe garanteaza deschiderea fizica a contactelor pentru a permite interventia in aval. Mecanismul sau de inchidere rapida, independent de operarea manuala, imbunatateste durata de serviciu. Are o anduranta electrica de pana la 10000 de cicluri si o anduranta mecanica de pana la 20000 de cicluri. Tensiunea de izolare nominala Ui este de 500 V c.a. Limitarea curentului de scurcircuit de clasa 3 (in conformitate cu standardul SR EN 60898-1) permite optimizarea costului protectiilor din aval. Produsul poate fi instalat pe o sina DIN. Latimea sa este de 4 module de 9 mm. Gradul de poluare este 3. Categoria de supratensiune este IV. Culoarea produsului este alb (RAL9003). Dimensiunile sunt (L) 36mm x (I) 85mm x (a) 78.5mm. Greutatea este de 0,25 kg. In conformitate cu standardul SE EN 60529, gradul de protectie este IP20 si IP40 in cofret. Temperatura de functionare este de la -35°C la 70°C. Temperatura de depozitare este de la -40°C la 85°C.
Documente
Specificatii
| Other | |
| Frequency | 50 Hz |
| Pollution degree | 3 |
| Measurements | |
| Built-in depth | 44.5 mm |
| Width in number of modular spacings | 2 |
| Electrical | |
| Rated insulation voltage Ui | 500 V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 6 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 20 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 6 kA |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated current | 6 A |
| Rated voltage | 400 V |
| Release characteristic | B |
| Voltage type | AC/DC |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 10 kA |
| Overvoltage category | 4 |
| Current limiting class | 3 |
| Model/type | |
| Number of poles (total) | 2 |
| Number of protected poles | 2 |
| Options | |
| Additional equipment possible | Yes |
| Concurrently switching neutral conductor | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Explosion-proof | No |
| Mounting/installation | |
| Flush-mounted installation | No |
| Connection | |
| Connectable conductor cross section solid-core | 1 mm² |
| Connectable conductor cross section multi-wired | 1 mm² |
| Operating conditions | |
| Ambient temperature during operating | -35 °C |
| Package 1 | |
| volume | 231,84 cm3 |
| weight | 214 g |
| length | 9,2 cm |
| width | 7,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480079092 |
| Package 2 | |
| volume | 1836,8 cm3 |
| weight | 1,348 kg |
| length | 22,4 cm |
| width | 10 cm |
| qmax | 6 |
| qmin | 6 |
| um | BX |
| gtin | 13606480079099 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 15,338 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 66 |
| qmin | 66 |
| um | CT |
| gtin | 43606480079090 |
