Descriere

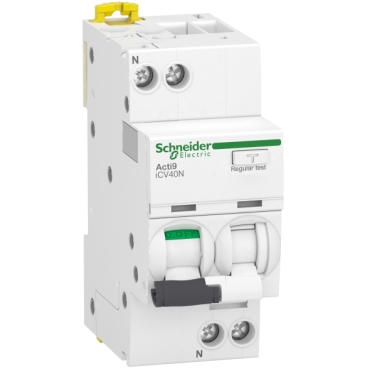

Acest produs Acti9 iCV40 este un intreruptor automat cu protectie diferentiala (RCBO). Este un disjunctor 1P+N cu 1 pol protejat, 16 A in curent nominal si curba de declansare B. Protectia diferentiala este de tip A, cu o sensibilitate de 10 mA. Temporizarea protectiei pentru scurgeri la pamant este instantanee. Capacitatea nominala de rupere la scurtcircuit Icn este de pana la 6000 A in conformitate cu standardul SR EN 61009-2-1. Acest produs protejeaza la scurtcircuit, suprasarcina, impotriva electrocutarii si impotriva incendiilor. Cei 2 indicatori unici Visitrip reduc timpul de interventie prin indicarea circuitului defect si identificarea rapida a tipului de defect. Banda sa verde VisiSafe garanteaza deschiderea fizica a contactelor pentru a permite interventia in aval. Acest produs este in conformitate cu standardul SR EN 61009-2-1. Are o anduranta electrica de pana la 20000 de cicluri si o anduranta mecanica de pana la 20000 de cicluri. Tensiunea operationala nominala Ue este de pana la 230 V c.a. Tensiunea de izolare nominala Ui este de 400 V c.a.. Tensiunea nominala de rezistenta la impuls Uimp este de 4 kV. Frecventa este de 50/60 Hz. Se monteaza pe sina DIN. Latimea in module de 9 mm este de 4. Culoarea produsului este alb (RAL9003). Dimensiunile sunt (L) 36mm x (I) 94mm x (a) 74mm. Greutatea este de 505g. Are un grad de protectie IP20. El devine IP40 la instalarea in cofret modular, in conformitate cu standardul SR EN 60529. Temperatura de functionare este de la -5°C la 60°C. Temperatura de depozitare este de la -40°C la 85°C.
Documente
Specificatii
| Measurements | |
| Built-in depth | 44 mm |
| Width in number of modular spacings | 2 |
| Electrical | |
| Rated insulation voltage Ui | 400 V |
| Rated fault current | 0.01 A |
| Rated short-circuit breaking capacity according to IEC 60947-2 | - |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 | 6 kA |
| Rated impulse withstand voltage Uimp | 4 kV |
| Leakage current type | A |
| Rated current | 16 A |
| Rated voltage | 230 V |
| Release characteristic | B |
| Voltage type | AC |
| Surge current capacity | 0.25 kA |
| Overvoltage category | 3 |
| Current limiting class | 3 |
| Rated short-circuit breaking capacity according to EN 61009 | 6 kA |
| Model/type | |
| Number of poles (total) | 2 |
| Number of protected poles | 1 |
| With interlocking device | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Options | |
| Anti-nuisance tripping version | No |
| Concurrently switching neutral conductor | Yes |
| Mounting/installation | |
| Flush-mounted installation | No |
| Other | |
| Frequency | 50/60 Hz |
| Pollution degree | 3 |
| Connection | |
| Connectable conductor cross section solid-core | 1 mm² |
| Connectable conductor cross section multi-wired | 1 mm² |
| Disconnection characteristic | Undelayed |
| Operating conditions | |
| Ambient temperature during operating | -5 °C |
| Package 1 | |
| volume | 320 cm3 |
| weight | 214 g |
| length | 8 cm |
| width | 4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489751852 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 12,169 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 54 |
| qmin | 54 |
| um | CT |
| gtin | 43606489751850 |
| Package 3 | |
| volume | 432000 cm3 |
| weight | 109,275 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 432 |
| qmin | 432 |
| um | PF |
