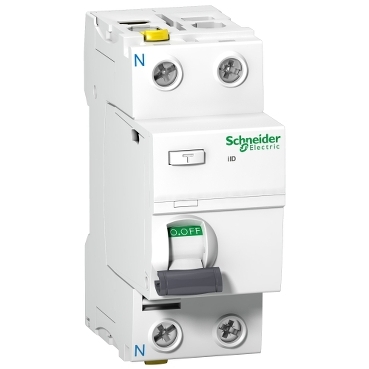

ACTI9 IID 2P 25A 30MA A RCCB

Cod produs: A9Z21225

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606480442988

Acti9 iID, Intreruptor Diferential, DT, 2P, 25A, 30mA, Tip A

Electrical
Rated current	25 A
Rated voltage	230 V
Voltage type	AC
Short-circuit breaking capacity (Icw)	-
Rated insulation voltage Ui	500 V
Surge current capacity	0.25 kA
Rated fault current	0.03 A
Number of poles	2
Rated impulse withstand voltage Uimp	6 kV
Leakage current type	A
Model/type
Short-time delayed tripping	No
With interlocking device	Yes
Measurements
Built-in depth	44 mm
Width in number of modular spacings	2
Protection
Explosion-proof	No
Selective protection	No
Degree of protection (IP)	IP20
Other
Frequency	50/60 Hz
Pollution degree	3
Mounting/installation
Mounting method	DIN rail
Connection
Connectable conductor cross section solid-core	1 mm²
Connectable conductor cross section multi-wired	1 mm²
Operating conditions
Ambient temperature during operating	-25 °C
Options
Additional equipment possible	Yes
Package 1
volume	340 cm3
weight	226 g
length	10 cm
width	8,5 cm
qmax	1
qmin	1
um	C62
gtin	3606480442988
Package 2
volume	36000 cm3
weight	12,457 kg
length	40 cm
width	30 cm
qmax	54
qmin	54
um	CT
gtin	43606480442986
Package 3
volume	432000 cm3
weight	117,554 kg
length	120 cm
width	80 cm
qmax	432
qmin	432
um	PF
