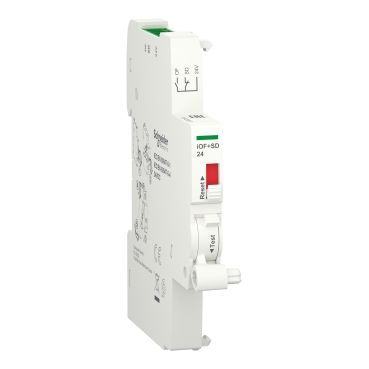

Descriere
Acest dispozitiv auxiliar electric Acti9 iOF+SD24 este un contact dublu, care indica starea deschis/inchis si care indica o declansarea la defect. Este compatibil cu gamele Acti9, cum ar fi ARA, RCA, iC60, iC40, iID, iSW-NA, si conectorii Ti24. Cele 2 contacte 1 NO + 1NC pot transmite informatiile despre dispozitivul asociat catre Acti9 Smartlink. De asemenea, poate transmite informatiile despre dispozitivul atasat, respectiv declansarea la defect, actionarea dispozitivului auxiliar de declansare, pozitia Deschis sau Inchis, catre un un controler logic programabil. Latimea in module de 9mm este de 1. Este compatibil cu bara tip pieptene in aval. Indica la distanta pozitia si declansarea la defect a dispozitivului asociat. Curentul operational nominal este de la 2 mA la 100 mA. Tensiunea operationala nominala Ue este de 240 V c.c. Temperatura de functionare este de la -25°C la + 70°C. Temperatura de depozitare este de la -40°C la + 85°C. Acest produs este in conformitate cu standardele SR EN 60947-5-1.
Documente
Specificatii
| Electrical | |
| Rated voltage | 24 V |
| Rated switch current | 0.1 A |
| Suitable for max. number of poles main contact unit (total) | 4 |
| Suitable for max. current main contact unit | 63 A |
| Voltage type for actuating | DC |
| Model/type | |
| With auto test for earth leakage function | No |
| Number of fault-signal switches | 1 |
| Additional equipment | Auxiliary switch/fault-signal switch |
| Other | |
| Device fitting | Earth leakage circuit breaker and miniature circuit breaker (MCB) |
| Measurements | |
| Width in number of modular spacings | 0.5 |
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Options | |
| Installed at the factory | No |
| Package 1 | |
| volume | 167,2 cm3 |
| weight | 37 g |
| length | 9,5 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480461613 |
| Package 2 | |
| volume | 2295 cm3 |
| weight | 523 g |
| length | 27 cm |
| width | 10 cm |
| qmax | 12 |
| qmin | 12 |
| um | BX |
| gtin | 13606480461610 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 5,897 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 43606480461611 |
| Package 4 | |
| weight | 57,176 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 960 |
| qmin | 960 |
| um | PF |
