Descriere

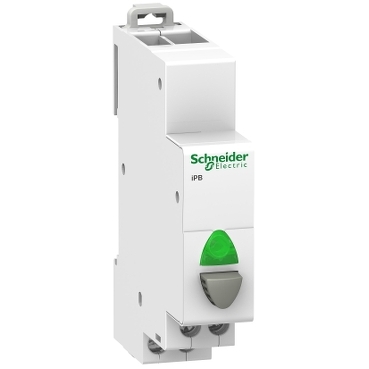

Acti9 Ipb Buton Gri 1Nd, Indicator Luminos Verde 110-230Vca
Documente
Specificatii
| Measurements | |
| Built-in depth | 50 mm |
| Width in number of modular spacings | 1 |
| Electrical | |
| Voltage type | AC |
| Switching current | 20 A |
| Switching voltage | 250 V |
| Lamp voltage | 110 V |
| Max. lamp power | 0.3 W |
| Model/type | |
| With signal lamp | Yes |
| Lamp type | LED |
| Colour | |
| Colour calotte | Green |
| Colour button | Grey |
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Other | |
| Lamp socket | - |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 136 cm3 |
| weight | 46 g |
| length | 8 cm |
| width | 2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480088285 |
| Package 2 | |
| volume | 1840 cm3 |
| weight | 607 g |
| length | 23 cm |
| width | 10 cm |
| qmax | 12 |
| qmin | 12 |
| um | BX |
| gtin | 13606480088282 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 5,95 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 108 |
| qmin | 108 |
| um | CT |
| gtin | 43606480088283 |
