Descriere

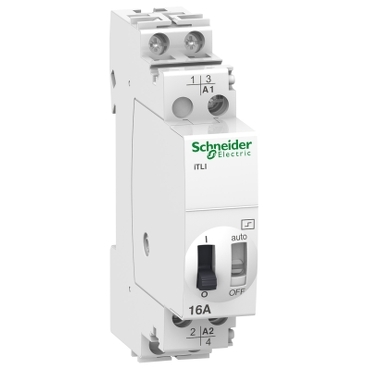

Teleruptor Itli, 2P, 1Nd+1Nc, 16A, Bobina 12 Vca 50/60Hz- 6 Vcc
Documente
Specificatii
| Electrical | |
| Frequency control voltage 1 | 50 Hz |
| Type of control voltage 2 | DC |
| Rated switch current | 16 A |
| Frequency control voltage 2 | - |
| Max. load fluorescent lamp (parallel compensated) | 900 VA |
| Supply voltage | 24 V |
| Voltage type (supply voltage) | AC |
| Max. incandescent lamp load | 1600 W |
| Max. load fluorescent lamp | 1300 VA |
| Max. load fluorescent lamp (Duo circuit) | 2000 VA |
| Control voltage 1 | 12 V |
| Type of control voltage 1 | AC |
| Max. switching current (cos phi = 0.6) | 16 A |
| Control voltage 2 | 6 V |
| Application | |
| Suitable for manual operation | Yes |
| Measurements | |
| Built-in depth | 43.5 mm |
| Width in number of modular spacings | 1 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Model/type | |
| Function | Mechanical switch |
| Package 1 | |
| volume | 107,1 cm3 |
| weight | 113 g |
| length | 8,5 cm |
| width | 7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480092015 |
| Package 2 | |
| volume | 1620 cm3 |
| weight | 1,412 kg |
| length | 22,5 cm |
| width | 9 cm |
| qmax | 12 |
| qmin | 12 |
| um | BX |
| gtin | 13606480092012 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 17,46 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 144 |
| qmin | 144 |
| um | CT |
| gtin | 43606480092013 |
