Descriere

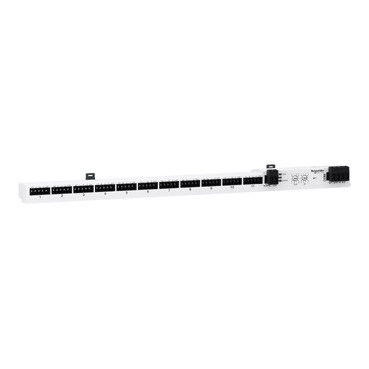

I/O Smart Link Modbus este un modul de comunicatii cu 11 canale. Comunica cu dispozitivele auxiliare iACT24 pentru contactoarele iCT, iATL24 pentru releele de impulsuri iTL, iOF+SD24 pentru iC60, iID, ARA, RCA iSW-NA. Trebuie asociat cu un EcoStruxure Panel Server PAS600 sau PAS800, datorita retelei Modbus RS485. Este utilizat pentru a transfera date de la dispozitivele Acti9 catre un PLC sau un sistem de monitorizare a retelei datorita retelei Ethernet. Comunica, de asemenea, cu OF+SD24 pentru C60, C120, DPN, ID C60H-DC, Ti24 pentru RCA iC60 Reflex iC60. Este furnizat cu o retea de alimentare de 24 V c.c., 2 suruburi pentru montarea pe Linergy FM80. Legatura este Modbus, RTU, conexiune seriala RS485. Rata de transfer este autoadaptabila de la 9600 la 38400 baud. Intervalul de adresare Modbus este de la 1 la 99. Este o magistrala de tip RS485 cu 4 fire. Este o conexiune auxiliara. Lungimea maxima a magistralei este de 1000 m. Lungimea maxima a cablurilor si a cablurilor detasabile cu conectori la ambele capete este de 500 m. Tensiunea de alimentare este de 24 V c.c. +/- 10%. Curentul maxim de intrare este de 1,5 A. Curentul maxim de anclansare este de 7 A. Gradul de protectie este IP20. Gradul de poluare este 3. Este conform cu directiva RoHS. Durata de salvare a memoriei este de 10 ani. Dimensiunile sunt 359 milimetri in latime, 23 milimetri in inaltime si 42 milimetri in adancime. Greutatea este de 188 g. Temperatura de functionare este de la -25 la +60 °C si numai +50 °C in cazul montarii verticale. Temperatura de depozitare este de la -40 la +80 °C. Acest produs este conform cu standardul IEC61010-2-201.
Documente
Specificatii
| Communication | |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces parallel | 0 |
| Supporting protocol for SERCOS | No |
| Number of HW-interfaces other | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| With optical interface | No |
| Number of HW-interfaces wireless | 0 |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for KNX | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for LON | No |
| Supporting protocol for other bus systems | No |
| Supporting protocol for SUCONET | No |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Connection | |
| Analogue input, resistor temperature | No |
| Analogue input, thermocouple | No |
| Analogue input, resistor | No |
| Analogue input signal configurable | No |
| Fieldbus connection over separate bus coupler possible | No |
| Analogue output, voltage | - |
| Analogue output, current | - |
| Short-circuit protection, digital outputs available | Yes |
| Type of electric connection | Plug-in connection |
| Analogue input, current | No |
| Number of digital outputs | 11 |
| Number of digital inputs | 22 |
| Number of analogue outputs | 0 |
| Number of analogue inputs | 0 |
| Analogue input, voltage | No |
| Options | |
| Analogue inputs configurable | Yes |
| Analogue outputs configurable | No |
| System accessory | Yes |
| Digital inputs configurable | Yes |
| Digital outputs configurable | Yes |
| Radio standard GPRS | No |
| Analogue output signal configurable | - |
| Radio standard GSM | No |
| Mobile communications standard 3G (UMTS) | No |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| IO link master | No |
| Rack-assembly possible | No |
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Performance | |
| Performance level according to EN ISO 13849-1 | None |
| Electrical | |
| Permitted voltage at input | 19.2 V |
| Type of voltage (input voltage) | DC |
| Input current at signal 1 | 2.5 mA |
| Voltage type (supply voltage) | DC |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Type of output voltage | DC |
| Supply voltage DC | 24 V |
| Output current at digital output | 0.1 A |
| Output voltage at digital output | 24 V |
| Other | |
| Time delay at signal change | - |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Resolution of the analogue outputs | - |
| Resolution of the analogue inputs | - |
| Measurements | |
| Height | 23 mm |
| Width | 359 mm |
| Depth | 42 mm |
| Protection | |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Degree of protection (IP) | IP20 |
| Model/type | |
| Type of digital output | Other |
| Mounting/installation | |
| Front built-in possible | No |
| Suitable for rail mounting | No |
| Wall mounting/direct mounting | Yes |
| Application | |
| Suitable for safety functions | No |
| Package 1 | |
| volume | 793,65 cm3 |
| weight | 242 g |
| length | 37 cm |
| width | 6,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480430602 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 8,2 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 32 |
| qmin | 32 |
| um | CT |
| gtin | 43606480430600 |
