Descriere

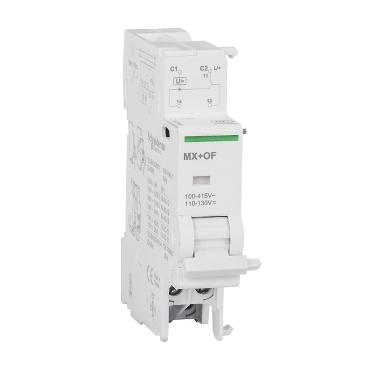

declansator de deschidere Mx Mx Plus 1 Of 220-415Vac Dc
Documente
Specificatii
| Electrical | |
| Rated voltage | 415 V |
| Rated switch current | 3 A |
| Suitable for max. number of poles main contact unit (total) | 4 |
| Suitable for max. current main contact unit | 125 A |
| Voltage type for actuating | AC |
| Model/type | |
| With auto test for earth leakage function | No |
| Number of fault-signal switches | 0 |
| Additional equipment | Shunt release (for power circuit breaker) |
| Other | |
| Device fitting | Miniature circuit breaker (MCB) |
| Measurements | |
| Width in number of modular spacings | 1 |
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Options | |
| Installed at the factory | No |
| Package 1 | |
| volume | 202,895 cm3 |
| weight | 69 g |
| length | 8,5 cm |
| width | 7,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480382956 |
| Package 2 | |
| volume | 2400,518 cm3 |
| weight | 622 g |
| length | 27,1 cm |
| width | 10,3 cm |
| qmax | 8 |
| qmin | 8 |
| um | BX |
| gtin | 13606480382953 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 6,168 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 72 |
| qmin | 72 |
| um | CT |
| gtin | 43606480382954 |
