Descriere

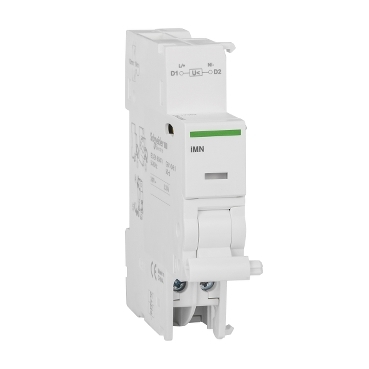

Bobina de declansare, Imn, Unitate de declansare, 220, 240 V C.A.
Documente
Specificatii
| Electrical | |
| Rated voltage | 240 V |
| Rated switch current | - |
| Suitable for max. number of poles main contact unit (total) | 4 |
| Suitable for max. current main contact unit | 63 A |
| Voltage type for actuating | AC |
| Model/type | |
| With auto test for earth leakage function | No |
| Number of fault-signal switches | 0 |
| Additional equipment | Under voltage coil |
| Measurements | |
| Width in number of modular spacings | 1 |
| Other | |
| Device fitting | Miniature circuit breaker (MCB) |
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Options | |
| Installed at the factory | No |
| Package 1 | |
| volume | 228 cm3 |
| weight | 80 g |
| length | 9,5 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480087998 |
| Package 2 | |
| volume | 2322,9 cm3 |
| weight | 697 g |
| length | 26,7 cm |
| width | 10 cm |
| qmax | 8 |
| qmin | 8 |
| um | BX |
| gtin | 13606480087995 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 6,903 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 72 |
| qmin | 72 |
| um | CT |
| gtin | 43606480087996 |
