Descriere

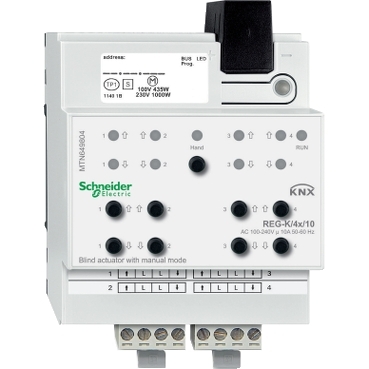

Actuator jaluzele KNX 4x/10A, comanda manuala
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Setting/control | |
| Local operation/hand operation | Yes |
| Connection | |
| With bus connection | Yes |
| Number of inputs | 0 |
| Electrical | |
| Max. switching power | 1000 W |
| Switching current (resistive) | 10 A |
| Model/type | |
| With switch function | No |
| Type of current | AC |
| With LED indication | Yes |
| Measurements | |
| Width in number of modular spacings | 4 |
| Min. depth of built-in installation box | - |
| Other | |
| Max. number of venetian-blind outputs | 4 |
| Communication | |
| Other bus systems | None |
| Bus system radio frequency | No |
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system KNX | Yes |
| Bus system LON | No |
| Bus system Powernet | No |
| Mounting/installation | |
| Mounting method | DRA (DIN-rail adaptor) |
| Options | |
| Radio frequency bidirectional | No |
| Bus module detachable | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 1600 cm3 |
| weight | 385 g |
| length | 16 cm |
| width | 12,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606485011998 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 4,166 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 43606485011996 |
