Descriere

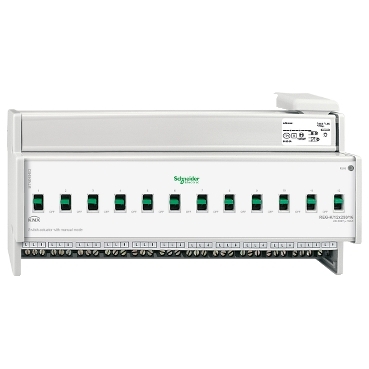

Actuator KNX 12x230/16A cu comanda manuala
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| With bus connection | Yes |
| Different phases connectable | Yes |
| Number of digital inputs | - |
| Electrical | |
| Max. switching power | 3600 W |
| Max. switching current | 16 A |
| Rated current | 16 A |
| Rated operating voltage | 230 V |
| Max. switching power LED | - |
| Measurements | |
| Width in number of modular spacings | 12 |
| Min. depth of built-in installation box | - |
| Communication | |
| Bus system radio frequency | No |
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system Powernet | No |
| Other bus systems | - |
| Bus system KNX | Yes |
| Bus system LON | No |
| Options | |
| Modular expandability | No |
| Radio frequency bidirectional | No |
| Bus module detachable | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Setting/control | |
| Local operation/hand operation | Yes |
| Performance | |
| Output power | 3600 W |
| Other | |
| Max. number of switching contacts | 12 |
| Model/type | |
| With LED indication | No |
| Mounting/installation | |
| Mounting method | DRA (DIN-rail adaptor) |
| Application | |
| Suitable for C-load | Yes |
| Package 1 | |
| volume | 2755,2 cm3 |
| weight | 890 g |
| length | 28 cm |
| width | 12,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606485011806 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 5,8 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 43606485011804 |
