Descriere

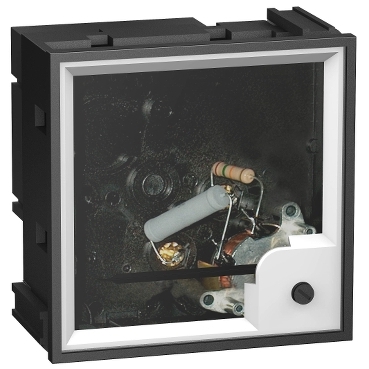

Ampermetru Analogic Amp - 3 In Fara Cadran - 72X72 Mm
Documente
Specificatii
| Measurements | |
| Width | 72 mm |
| Width in number of modular spacings | 4 |
| Height | 72 mm |
| Other | |
| Measuring range | 0 A |
| Max. needle deflection | 90 ° |
| Nominal end value of the scale | - |
| Options | |
| Calibrated | No |
| Suitable for distribution board | No |
| Scales lighting | No |
| Overcurrent scale | No |
| Stay-set indicator | No |
| Model/type | |
| Model | Front mounting |
| Measurement system | Soft iron |
| Electrical | |
| Voltage type | AC |
| Power loss | 1.1 W |
| Performance | |
| Accuracy class | 1.5 |
| Connection | |
| Transformer connection | Yes |
| Package 1 | |
| volume | 765 cm3 |
| weight | 191 g |
| length | 9 cm |
| width | 8,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430160038 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 6,757 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 33 |
| qmin | 33 |
| um | CT |
| gtin | 43303430160036 |
