| Communication |
| Number of interfaces PROFINET |
0 |
| Number of HW-interfaces parallel |
0 |
| Supporting protocol for SERCOS |
No |
| Number of HW-interfaces other |
1 |
| Number of HW-interfaces serial TTY |
0 |
| Number of HW-interfaces USB |
0 |
| With optical interface |
No |
| Supporting protocol for INTERBUS-Safety |
No |
| Supporting protocol for AS-Interface Safety at Work |
No |
| Supporting protocol for DeviceNet Safety |
No |
| Supporting protocol for EtherNet/IP |
No |
| Supporting protocol for Foundation Fieldbus |
No |
| Supporting protocol for SafetyBUS p |
No |
| Supporting protocol for PROFINET CBA |
No |
| Supporting protocol for PROFINET IO |
Yes |
| Supporting protocol for PROFIsafe |
No |
| Supporting protocol for ASI |
No |
| Supporting protocol for PROFIBUS |
Yes |
| Supporting protocol for TCP/IP |
No |
| Supporting protocol for KNX |
No |
| Supporting protocol for CAN |
Yes |
| Supporting protocol for INTERBUS |
No |
| Supporting protocol for BACnet |
No |
| Supporting protocol for DeviceNet |
Yes |
| Supporting protocol for Modbus |
Yes |
| Supporting protocol for Data-Highway |
No |
| Supporting protocol for LON |
No |
| Supporting protocol for other bus systems |
Yes |
| Supporting protocol for SUCONET |
No |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
1 |
| Number of HW-interfaces industrial Ethernet |
0 |
| Number of HW-interfaces RS-232 |
0 |

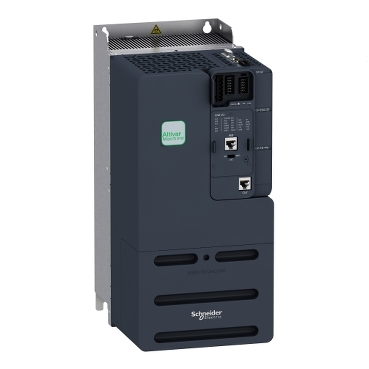

| Model/type |
| Type of converter |
U converter |
| With control element |
No |
| Electrical |
| Mains voltage |
380 V |
| Mains frequency |
50/60 Hz |
| Relative symmetric net voltage tolerance |
10 % |
| Nominal output current I2N |
33.9 A |
| Max. output voltage |
480 V |
| Other |
| Max. output frequency |
599 Hz |
| Relative symmetric net frequency tolerance |
5 % |
| Measurements |
| Height |
385 mm |
| Width |
180 mm |
| Depth |
249 mm |
| Connection |
| With PC connection |
Yes |
| Number of phases input |
3 |
| Number of phases output |
3 |
| Number of digital outputs |
2 |
| Number of digital inputs |
5 |
| Number of analogue outputs |
1 |
| Number of analogue inputs |
2 |
| Performance |
| Max. output at quadratic load at rated output voltage |
11 kW |
| Max. output at linear load at rated output voltage |
11 kW |
| Application |
| Application in domestic- and commercial area permitted |
No |
| Application in industrial area permitted |
Yes |
| Protection |
| Degree of protection (IP) |
IP20 |
| Degree of protection (NEMA) |
- |
| Options |
| Integrated breaking resistance |
No |
| Setting/control |
| 4-quadrant operation possible |
Yes |
| Package 1 |
| volume |
58590,5 cm3 |
| weight |
11,206 kg |
| length |
56,5 cm |
| width |
30,5 cm |
| qmax |
1 |
| qmin |
1 |
| um |
C62 |
| gtin |
3606480966941 |
| Package 2 |
| volume |
360000 cm3 |
| weight |
35,412 kg |
| length |
80 cm |
| width |
60 cm |
| qmax |
2 |
| qmin |
2 |
| um |
PF |
| gtin |
73606480966940 |
