Descriere

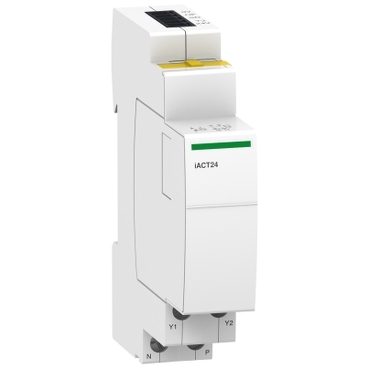

Acti9 Iact, Contact Comanda Si Auxiliar 24V Dc 1 No cu Interfata Ti24 Plc
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Rated voltage | 24 V |
| Rated switch current | 0.002 A |
| Suitable for max. number of poles main contact unit (total) | 3 |
| Suitable for max. current main contact unit | 63 A |
| Voltage type for actuating | AC |
| Model/type | |
| With auto test for earth leakage function | No |
| Number of fault-signal switches | 0 |
| Additional equipment | Other |
| Other | |
| Device fitting | Contactor/relay |
| Measurements | |
| Width in number of modular spacings | 1 |
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Options | |
| Installed at the factory | No |
| Package 1 | |
| volume | 176,472 cm3 |
| weight | 84 g |
| length | 8,6 cm |
| width | 7,6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480430619 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 9,546 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 108 |
| qmin | 108 |
| um | CT |
| gtin | 43606480430617 |
