Descriere

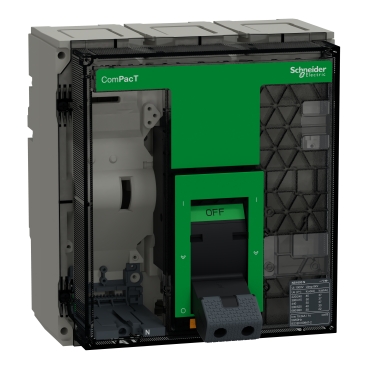

Cadru intreruptor ComPacT NS1600N, 50kA at 415VAC, 1600A, 3P, fix, cu operare manuala, fara unitate de declansare
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Position of connection for main current circuit | Front side |
| Protection | |
| Complete device with protection unit | No |
| Integrated earth fault protection | No |
| Degree of protection (IP) | IP40 |
| Model/type | |
| Type of control element | Wing knob |
| With switched-off indicator | Yes |
| Motor drive integrated | No |
| Mounting/installation | |
| DIN rail (top hat rail) mounting optional | No |
| Suitable for DIN rail (top hat rail) mounting | No |
| Electrical | |
| Overload release current setting | - |
| Rated permanent current Iu | 1600 A |
| Rated voltage | 690 V |
| Adjustment range short-term delayed short-circuit release | - |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | 50 kA |
| Number of poles | 3 |
| With integrated under voltage release | No |
| Adjustment range undelayed short-circuit release | - |
| Options | |
| Motor drive optional | Yes |
| Other | |
| Device construction | Built-in device fixed built-in technique |
| Package 1 | |
| volume | 4 cm3 |
| weight | 10 g |
| length | 2 cm |
| width | 1 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606482098169 |
Accesorii

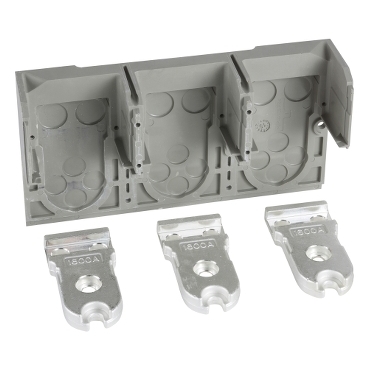

Conexiuni Verticale Spate, amonte, 3P, Fix, 630A-1600A, pentru ComPact NS, MasterPact NT, EasyPact M
Cod: 33604
Schneider Electric
Conexiuni Verticale Spate, aval, 3P, Fix, 630A-1600A, pentru ComPact NS, MasterPact NT, EasyPact MVS
Cod: 33605
Schneider Electric

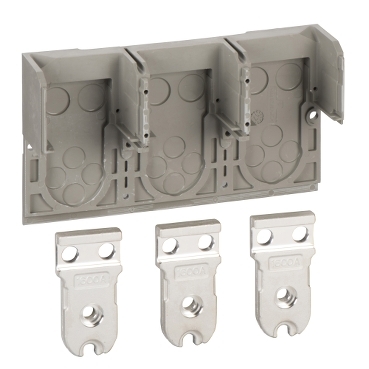

Conexiuni Orizontale Spate, amonte, 3P, Fix, 630A-1600A, pentru ComPact NS, MasterPact NT, EasyPact
Cod: 33606
Schneider Electric
Conexiuni Orizontale Spate, aval, 3P, Fix, 630A-1600A, pentru ComPact NS, MasterPact NT, EasyPact MV
Cod: 33607
Schneider Electric
Conexiuni Verticale Spate, amonte, 3P, Fix, 630A-1600A, pentru ComPact NS, MasterPact NT, EasyPact M
Cod: 33604
Schneider Electric
Conexiuni Verticale Spate, aval, 3P, Fix, 630A-1600A, pentru ComPact NS, MasterPact NT, EasyPact MVS
Cod: 33605
Schneider Electric
Conexiuni Orizontale Spate, amonte, 3P, Fix, 630A-1600A, pentru ComPact NS, MasterPact NT, EasyPact
Cod: 33606
Schneider Electric
Conexiuni Orizontale Spate, aval, 3P, Fix, 630A-1600A, pentru ComPact NS, MasterPact NT, EasyPact MV
Cod: 33607
Schneider Electric
Recomandari
