Descriere

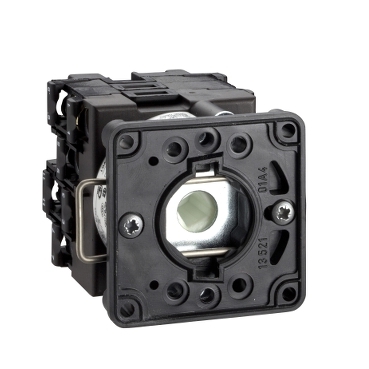

Corp Pentru Cheie Inversoare - 2-Poli - 90° - 12 A - Pentru Ø 22 Mm
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Specificatii
| Model/type | |
| With zero (off) position | Yes |
| With retraction in 0-position | Yes |
| Model | On/off switch |
| Type of control element | Other |
| Complete device in housing | No |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Electrical | |
| Rated operation power at AC-3, 400 V | 1.5 kW |
| Rated permanent current Iu | 12 A |
| Number of poles | 2 |
| Rated operation current Ie at AC-3, 400 V | 3.3 A |
| Material | |
| Housing material | Plastic |
| Protection | |
| Degree of protection (IP), front side | Other |
| Degree of protection (NEMA), front side | - |
| Mounting/installation | |
| Suitable for front mounting | No |
| Suitable for intermediate mounting | No |
| Suitable for floor mounting | No |
| Application | |
| Suitable for distribution board installation | No |
| Package 1 | |
| volume | 186,368 cm3 |
| weight | 112 g |
| length | 6,4 cm |
| width | 5,6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110443417 |
