Descriere

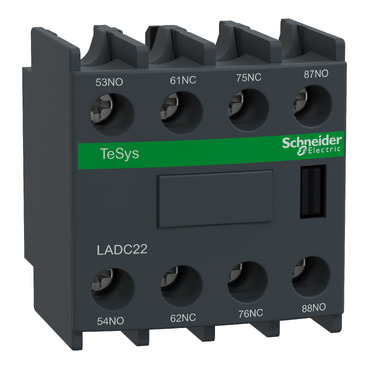

Auxiliary contact block, TeSys Deca, 2NO+2NC (inc. 1NO+1NC make before break), front, screw clamp terminals
Documente
Fisa tehnica
Specificatii
| Connection | |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 2 |
| Type of electric connection | Screw connection |
| Model/type | |
| Model | Clip-on |
| Lamp holder | - |
| Number of fault-signal switches | 0 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 10 A |
| Mounting/installation | |
| Mounting method | Front fastening |
| Package 1 | |
| volume | 104,832 cm3 |
| weight | 62,2 g |
| length | 5,2 cm |
| width | 4,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110384475 |
| Package 2 | |
| volume | 1060,8 cm3 |
| weight | 622 g |
| length | 26 cm |
| width | 8,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 53389110384470 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 10,461 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 160 |
| qmin | 160 |
| um | CT |
| gtin | 43389110384473 |
