Descriere

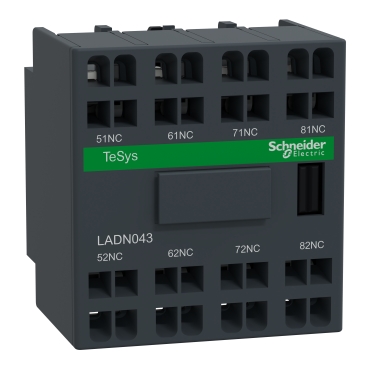

Auxiliary contact block, TeSys Deca, 4NC, front mounting, spring terminals
Documente
Fisa tehnica
Specificatii
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 4 |
| Type of electric connection | Spring clamp connection |
| Model/type | |
| Model | Clip-on |
| Lamp holder | - |
| Number of fault-signal switches | 0 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 10 A |
| Mounting/installation | |
| Mounting method | Front fastening |
| Package 1 | |
| volume | 102,336 cm3 |
| weight | 67 g |
| length | 4,1 cm |
| width | 4,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110821178 |
| Package 2 | |
| volume | 1127,1 cm3 |
| weight | 673 g |
| length | 25,5 cm |
| width | 8,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 53389110821173 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 11,23 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 160 |
| qmin | 160 |
| um | CT |
| gtin | 43389110821176 |
