Descriere

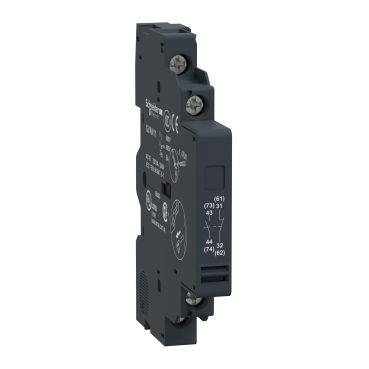

Bloc de contacte auxiliare TeSys GV, pentru disjunctoare de motor GV2 si GV3. 1NO+1NC contacte auxiliare instantanee. Clasificat pentru functionare de pana la 6 A/690 V c.a. si 6 A/240 V c.c. A se instala pe partea stanga a disjunctorului (posibilitate de montare a 2 blocuri), conexiune prin borne cu clema cu surub. Certificat conform mai multor standarde (IEC, UL, CSA, CCC, EAC).
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Type of electric connection | Screw connection |
| Model/type | |
| Model | Clip-on |
| Lamp holder | None |
| Number of fault-signal switches | 0 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 3.3 A |
| Mounting/installation | |
| Mounting method | Side mounting |
| Package 1 | |
| volume | 292,5 cm3 |
| weight | 42 g |
| length | 15 cm |
| width | 13 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110343489 |
| Package 2 | |
| volume | 9000 cm3 |
| weight | 1,245 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 25 |
| qmin | 25 |
| um | CT |
| gtin | 53389110343484 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 49,84 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 800 |
| qmin | 800 |
| um | PF |

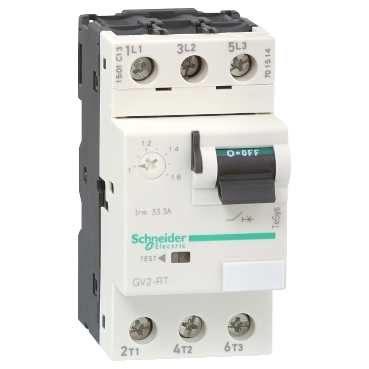

Accesorii
