Descriere

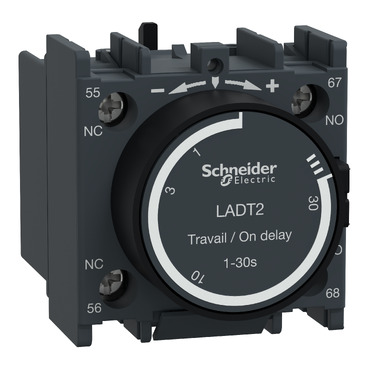

Bloc de contacte auxiliare cu temporizare TeSys Deca, pentru contactoare LC1D, LC1F si relee de control CAD. Ofera contacte 1NO+1NC, cu o intensitate nominala de pana la 10 A la 690 V c.a., interval de setare a temporizarii la anclansare 1-30 s, conectare prin borne cu cleme cu surub. Montare frontala prin clipsare, asigura fiabilitate si durabilitate ridicate. Certificat conform mai multor standarde (IEC, UL, CSA, CCC, EAC), conform cu standardele de sustenabilitate.
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Model/type | |
| Switching function | Operating delayed |
| Other | |
| Operating principle | Electronic |
| Setting time | 1 s |
| Package 1 | |
| volume | 169 cm3 |
| weight | 74 g |
| length | 5 cm |
| width | 6,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110385892 |
| Package 2 | |
| volume | 1622,4 cm3 |
| weight | 752 g |
| length | 24 cm |
| width | 13 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 53389110385897 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 11 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 140 |
| qmin | 140 |
| um | CT |
| gtin | 43389110385890 |
| Package 4 | |
| weight | 100,444 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 1120 |
| qmin | 1120 |
| um | PF |
